ENP Zinc Casted Flow Control Valve, 10-32 UNF x 1/8" Barb, Meter-In

ENP Zinc Casted Flow Control Valve, 10-32 UNF x 1/8" Barb, Meter-In

E-N-180027

ENP Zinc Casted Flow Control Valve, 10-32 UNF x 1/8" Barb, Meter-In

ENP Zinc Casted Flow Control Valve, 10-32 UNF x 1/8" Barb, Meter-In
X

Bulk price quote request

Product Details

E-N-180027

ENP Zinc Casted Flow Control Valve, 10-32 UNF x 1/8" Barb, Meter-In

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description ENP Zinc Casted Flow Control Valve, 10-32 UNF x 1/8" Barb, Meter-In

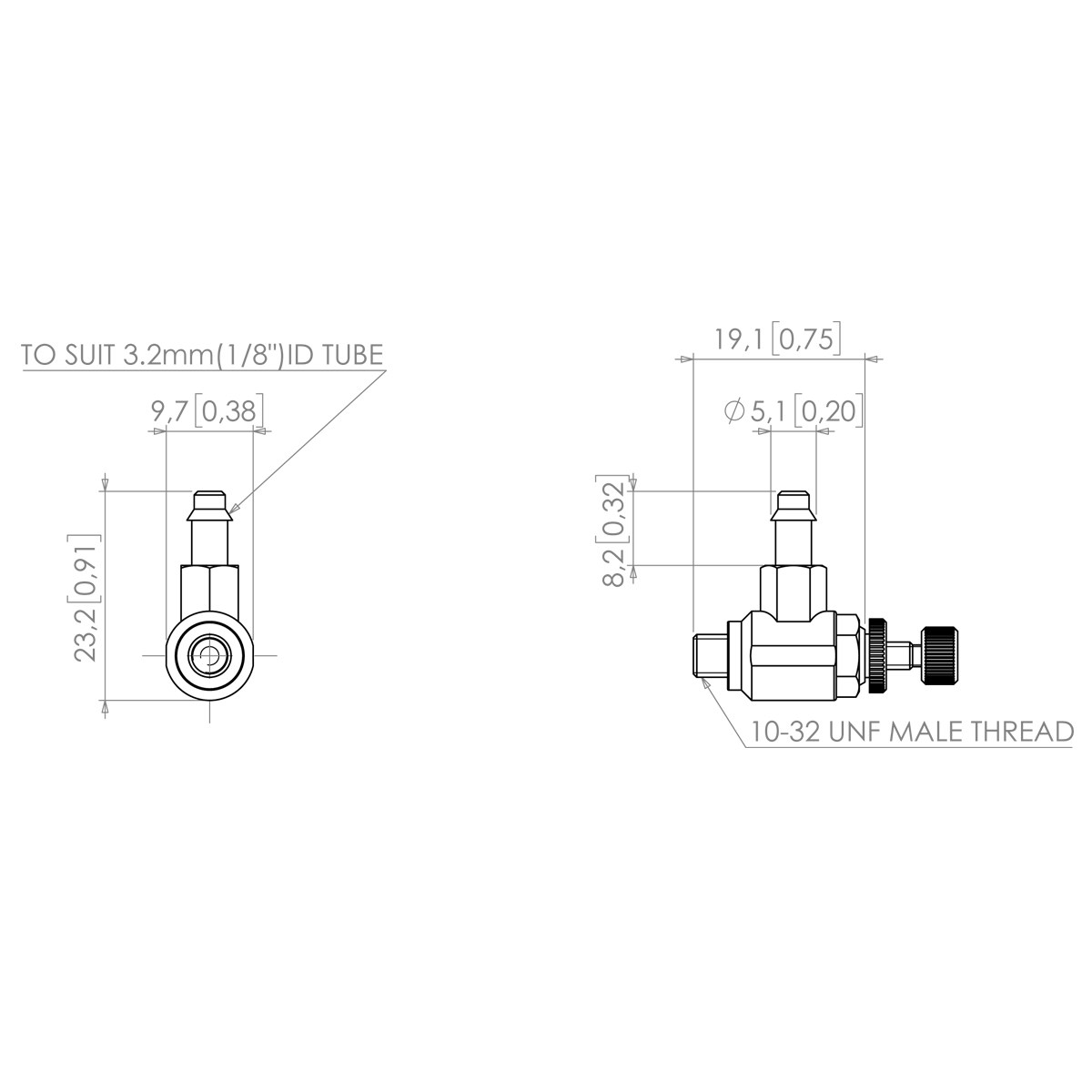

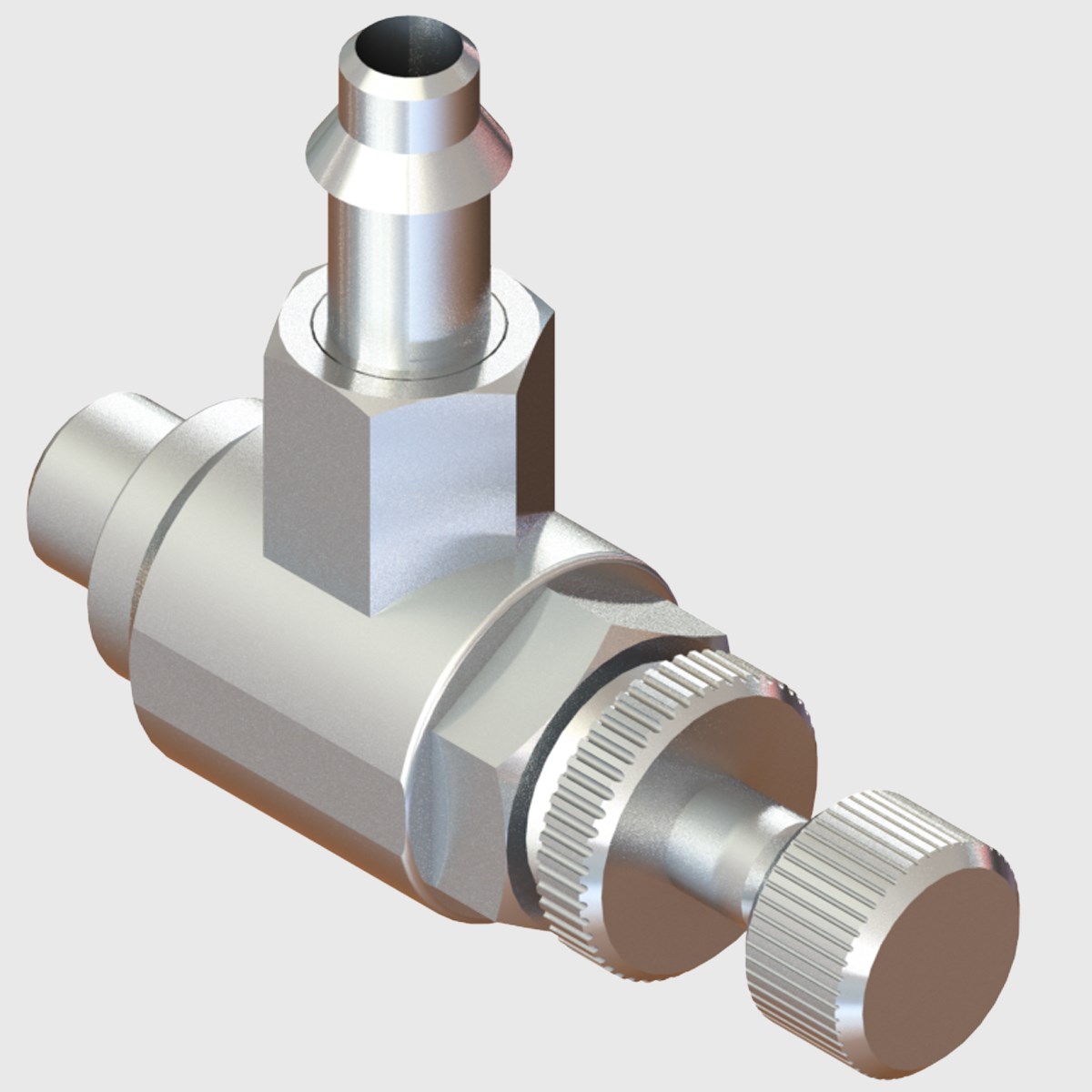

Extended Description Miniature Unidirectional flow control valve (Meter-In) with an Aluminium body body c/w barb to suit 1/8” ID tube Inlet and 10-32 UNF male threaded outlet , 303 Stainless Steel needle, Buna-N 70 seal, Nickel Plated Brass adjusting knob and locking nut

Ambient Temperature 0°C to 110°C (32°F to 230°F)

Mounting Style In-Line / Direct

Connection 1 To suit 3.2 mm (1/8") ID Tube

Connection 2 10-32 UNF Male Thread

Recommended Filtration 40 micron

Media Temperature 0°C to 110°C (32°F to 230°F)

Non-Wetted Materials 360 FM Brass, 303 Stainless Steel, Aluminium

Wetted Materials 360 FM Brass, Buna-N 70, 303 Stainless Steel, Aluminium

Cleanroom Manufactured No

Max. Inlet Pressure 10.34 bar (150 psi)

Operating Pressure 0 to 10.34 bar (0 to 150 psi)

Item Weight 0.0250 (0.88oz)

ROHS Compliant Yes

Regulatory Information None

REACH Compliant Yes

Other Technical Data This flow control valve has a 3° pin angle, the ports are orientated at 90° and a locking nut is furnished as standard to aid setting. Media Compatibility includes Air, Oil and Water. A meter-In flow control works by restricting fluid as it enters an actuator port; meter-in circuits work well with hydraulic fluids, but can give erratic action with air. Meter-in flow controls only work on resistive loads because a running-away load can move the actuator faster than the circuit can fill it with fluid. A meter-out flow control restricts fluid as it leaves an actuator port; meter-out circuits work well with both hydraulic and pneumatic actuators. Meter-out flow controls work on resistive loads or running away loads because the actuator can never move faster than the fluid leaving it allows. Eoxshop offers a variety of configurations in both Unidirectional and Bi-directional styles, this includes various mounting and porting options as well as construction materials. Flow control and Needle valves are not guaranteed to be leak tight and therefore should not be considered to be or used as a shut off valve. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
