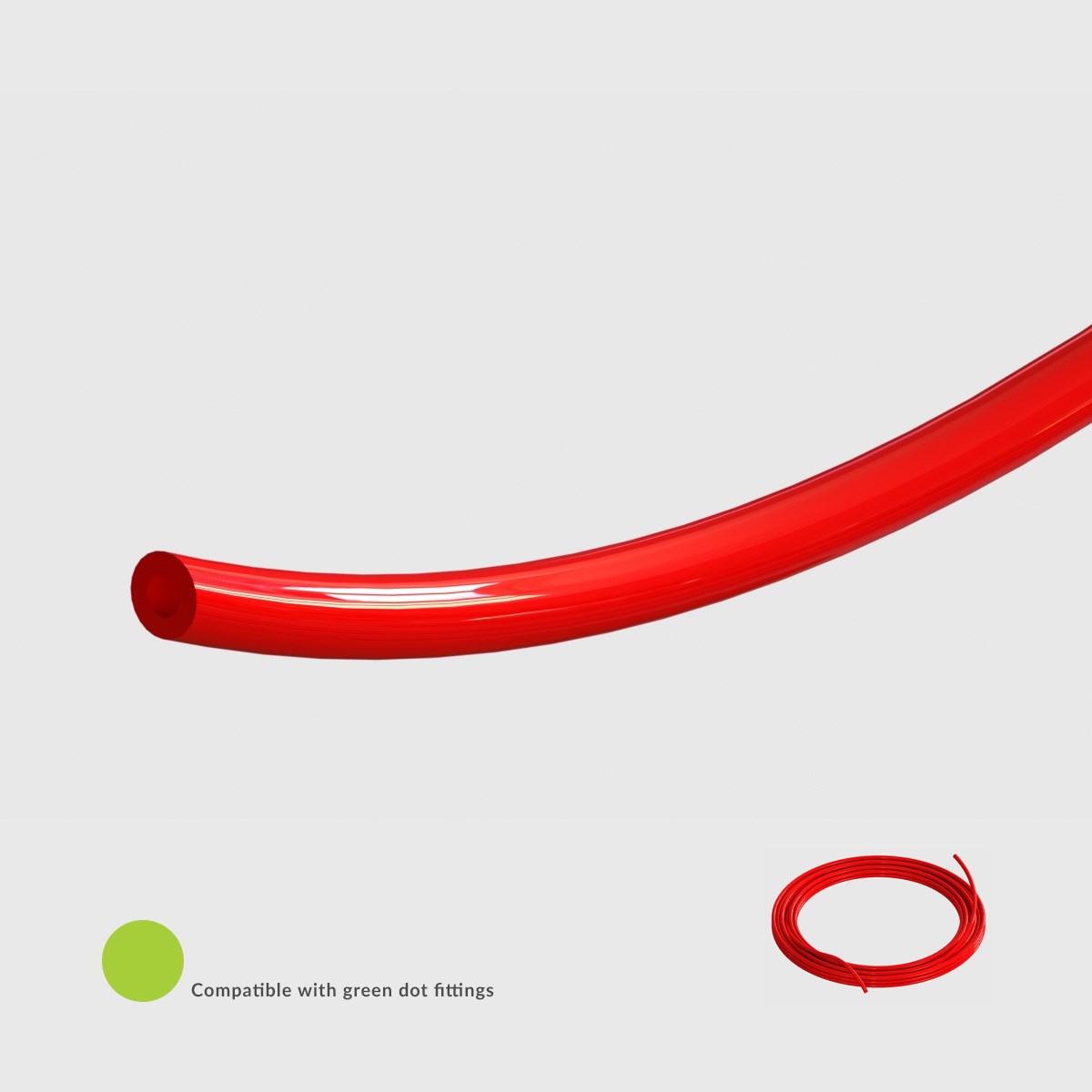

Description Red Linear Low Density Polyethylene (LLDPE) Tubing, 50 Shore D, 0.106" (2.7mm) ID x 5/32" (4.0mm) OD - 30M

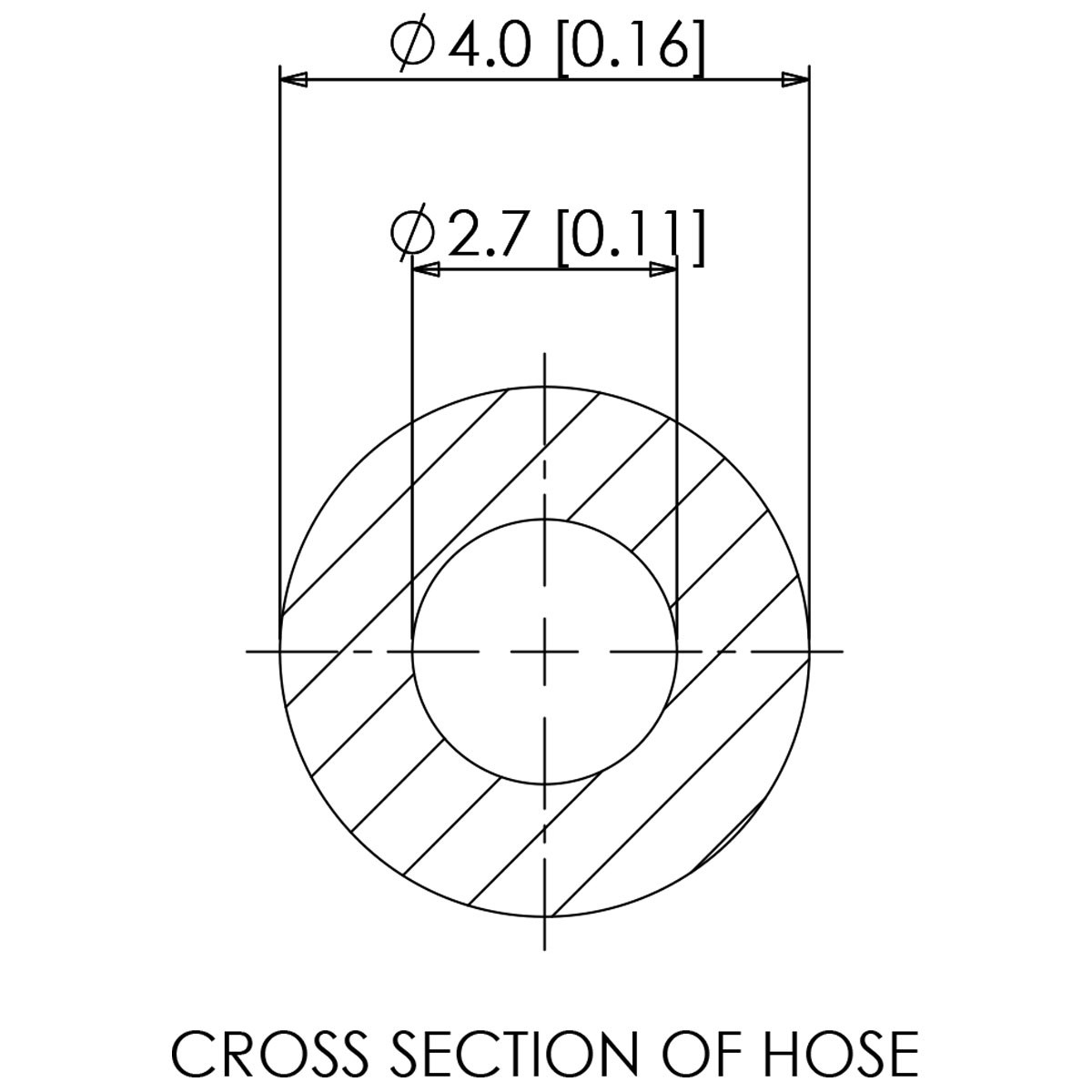

Extended Description 30 Metre coil (100 Feet) of red colour Linear Low Density Polyethylene (LLDPE) tubing with an internal diameter of 0.106" (2.7mm), an outside diameter of 5/32" (4.0mm) and a wall thickness of 0.025" (0.6mm) suitable for use with push-in and compression style fittings

Non-Wetted Materials Linear Low-Density Polyethylene (LLDPE)

Wetted Materials Linear Low-Density Polyethylene (LLDPE)

Cleanroom Manufactured Uncontrolled environment

Temperature Range -40°C to 66°C (-40°F to 150°F)

Working Pressure 3:1 Safety Factor. Vacuum to 12.07 bar (175 psi) at 25°C (75°F) / Vacuum to 4.83 bar (70 psi) at 65°C (150°F)

Operating Range at 25⁰C Vacuum to 12.07 bar (175 psi) at 25°C (75°F)

Diameter Tolerance ±0.004" (±0.10mm) ID/OD

Operating Range at 65⁰C Vacuum to 4.83 bar (70 psi) at 65°C (150°F)

Item Weight 0.21Kg (210 gram)

ROHS Compliant Yes

Regulatory Information NSF 51, FDA 21 CFR 177.1520, California Prop.65 compliant

CE Mark No

REACH Compliant Yes

Durometer 50 Shore D

Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Animal derivative free, Latex free, Conflict minerals free

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
