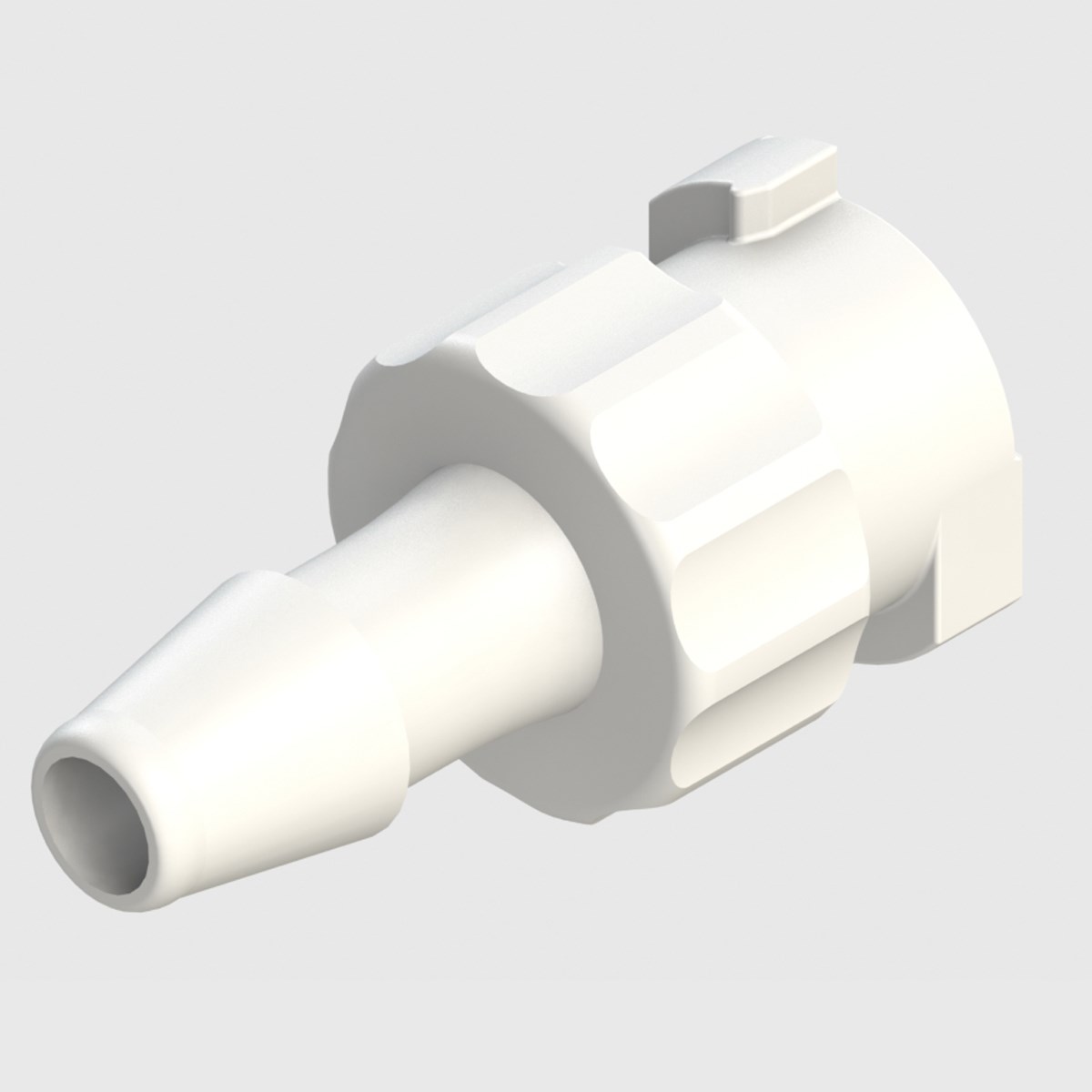

Quarter-Turn Female Blood Pressure Cuff Connector to 5/32" ID Hose Barb Fitting, White ABS

E-Q-160304

Quarter-Turn Female Blood Pressure Cuff Connector to 5/32" ID Hose Barb Fitting, White ABS

Quarter-Turn Female Blood Pressure Cuff Connector to 5/32" ID Hose Barb Fitting, White ABS

Description Quarter-Turn Female Blood Pressure Cuff Connector to 5/32" ID Hose Barb Fitting, White ABS

Extended Description Quarter-Turn Female Blood Pressure Cuff Connector to 5/32" ID Hose Barb Fitting, White ABS

Mounting Style In-line

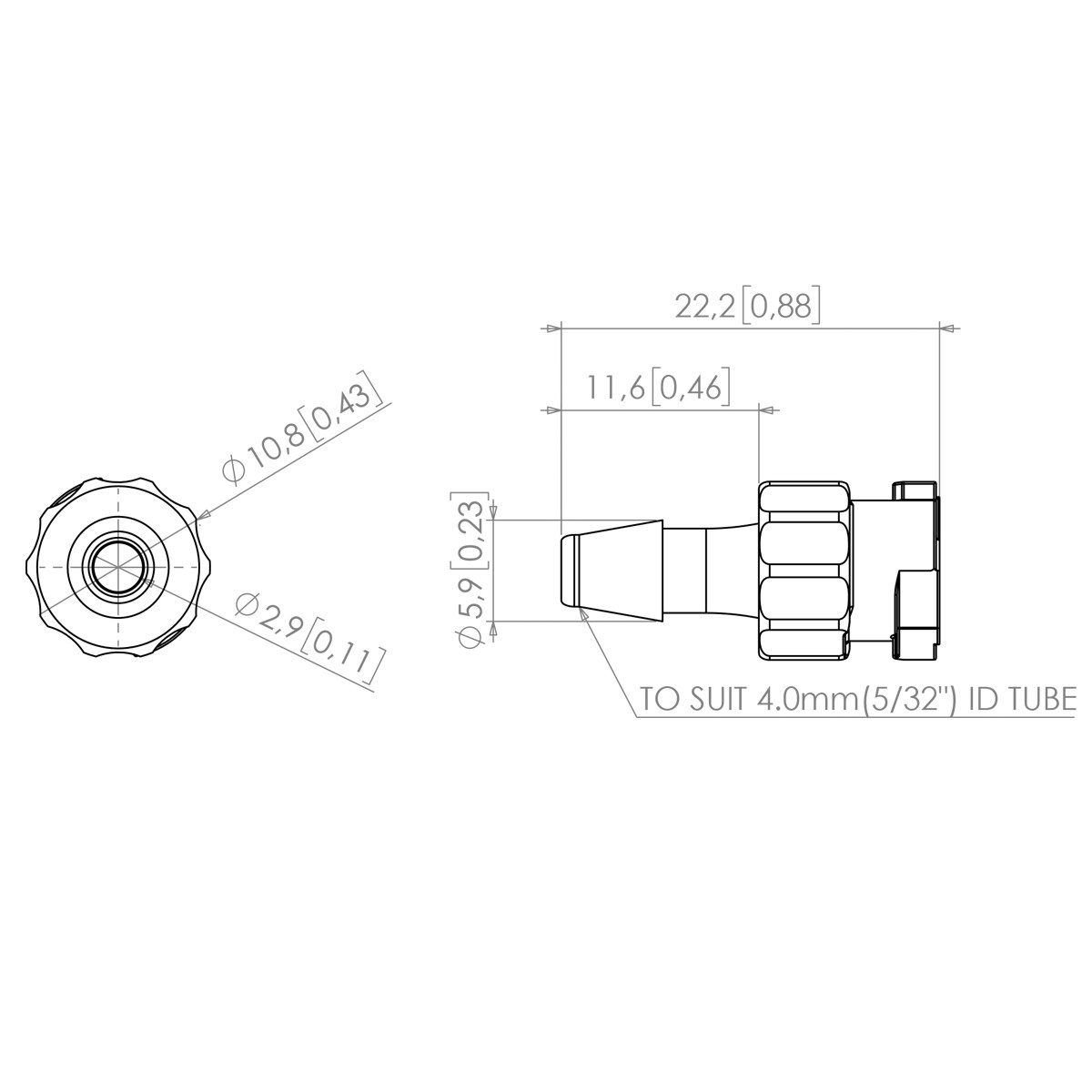

Connection 1 To suit 4.0 mm (5/32") ID Tube

Connection 2 To mating Plug Connector

Recommended Filtration To suit application and media used

Non-Wetted Materials White ABS

Wetted Materials White ABS

Clean Room Manufactured Class 8 (100,000) cleanroom

Max. Inlet Pressure 8.62 bar (125 psi)

Item Weight 0.002 (0.071oz)

ROHS Compliant Yes

Regulatory Information USP Class VI; ISO 10993 Part 1 Compliant

REACH Compliant Yes

Other Technical Data BPA Free. DEHP Free. For further information please contact us on +44 (0)2392 266032

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
