Development Kit

Development Kit

E-P-160025

Development Kit

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

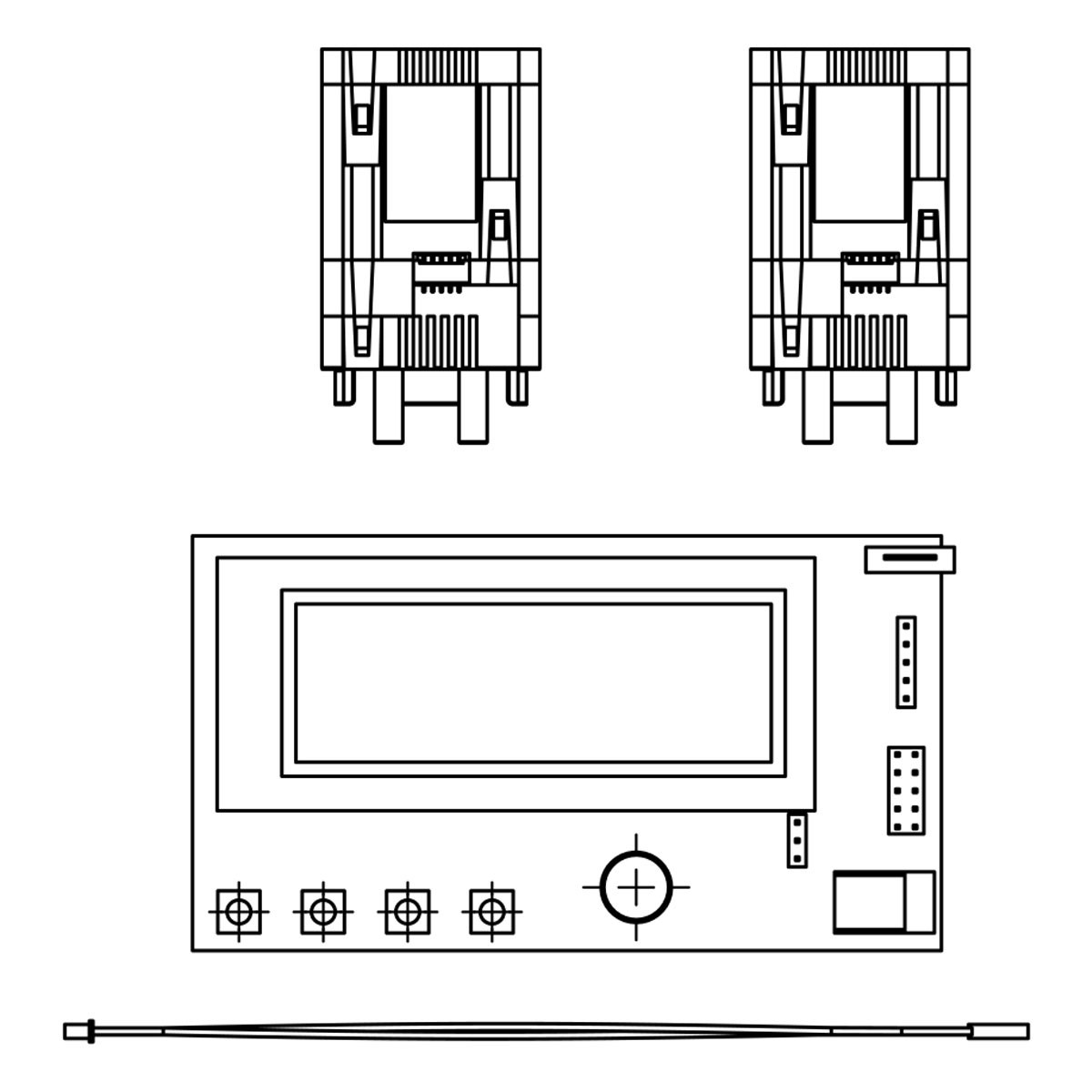

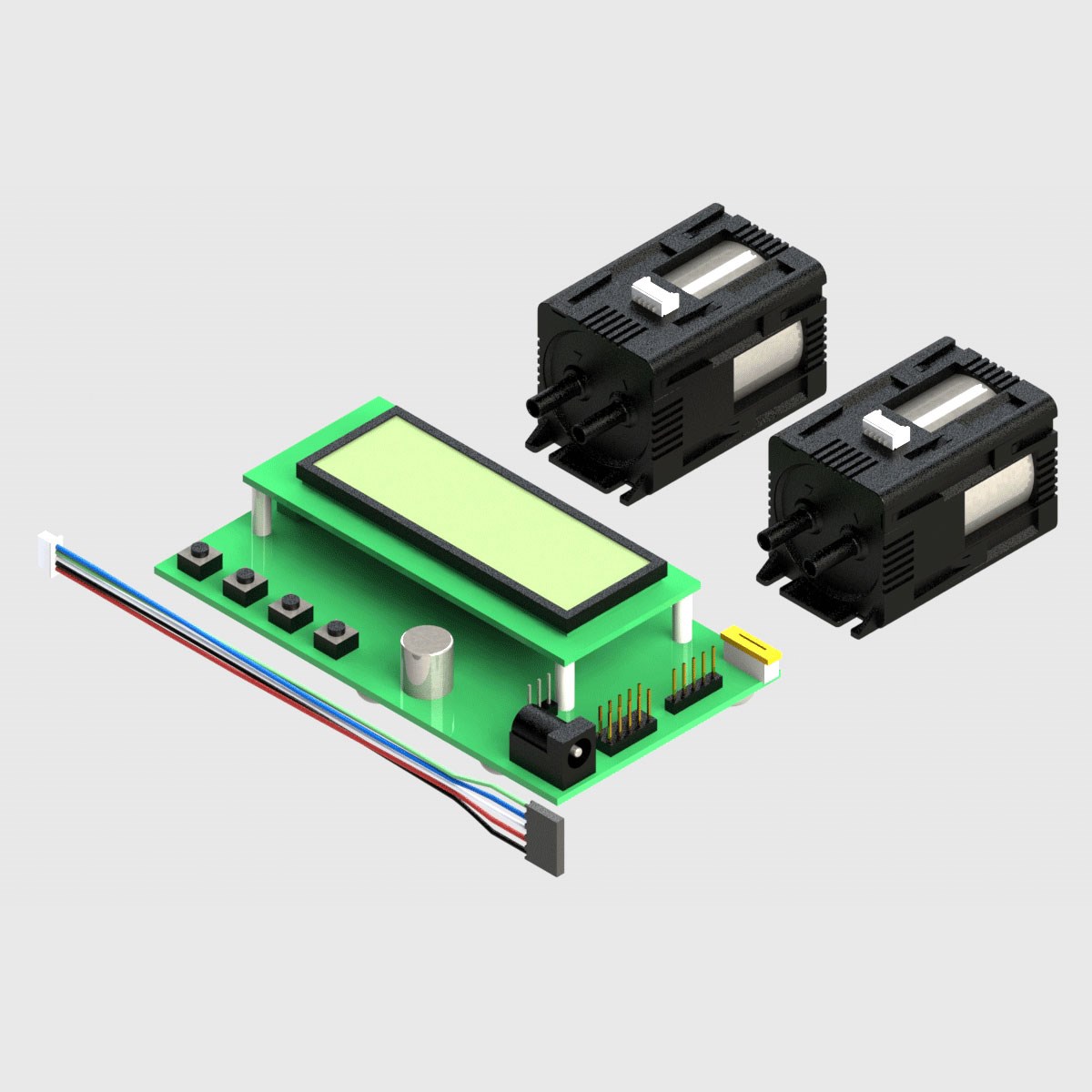

Development kit includes FCU + 2 off 35,000 Hours Pumps (Standard Range)
$867.78
Add To Wishlist
Quantity
Price

1 - 9

$867.78

10 - 49

$781.00

50 - 99

$694.22

100

$607.45

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-P-160025

Development Kit

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Development kit includes FCU + 2 off 35,000 Hours Pumps (Standard Range)

Extended Description Development kit which includes 2 off 35,000 hours pumps together with flow calibration control unit for vacuum and gas pumps

Ambient Temperature 0°C to 55°C (32°F to 131°F)

ProductInformationTab1 Temp Value: ProductInformationTab1: Development Kit

ProductInformationTab2 Temp Value: ProductInformationTab2: Development Kit

Mounting Style In-Line

Max. Vacuum 150 mbar (4.43"Hg) *Can vary +/- 5% of max specification

Max. Pressure 300 mbar (4.35psi) *Can vary +/- 5% of max specification

Connection 1 Spigot for 4 mm ID Tube

Recommended Filtration To suit application and media used

Min. Supply Capacitor 470µF, 25V @ 12V supply

Voltage 12VDC

Media Temperature 0°C to 55°C (32°F to 131°F)

Non-Wetted Materials Polyphenylene Sulphide (PPS)

Wetted Materials Polyphenylene Sulphide (PPS), EPDM

Max. Flow 1300 ml/min *Can vary +/- 5% of max specification

Supply Voltage 5 to 24V DC to match pump being used. Supplied with a 5 to 12V DC power supply.

Supply Connection DC Power Jack 2.1mm Centre pin +

Item Weight 0.595 Kg (20.99 oz)

ROHS Compliant Yes (Applicable to pumps)

REACH Compliant Yes (Applicable to pumps)

Other Technical Data Benefits with using the flow calibration unit, easy calibration of pump flow, shorter R & D time. Reduced power consumption with correct flow calibration. Reduced pump noise. Unit is suitable for pumps with a flex cable but will also be supplied with an adapter to suit wire pumps. These pumps are fully customizable and can have pre-set calibrated flow with the option of integrated intelligence, please contact us on +44 (0)2392 266031 for further information and to discuss your application. Pump flow can only be in one direction, reversal is not permitted. Missing VCC capacitator can result in pump damage, please refer to the electronic interface datasheet.

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
