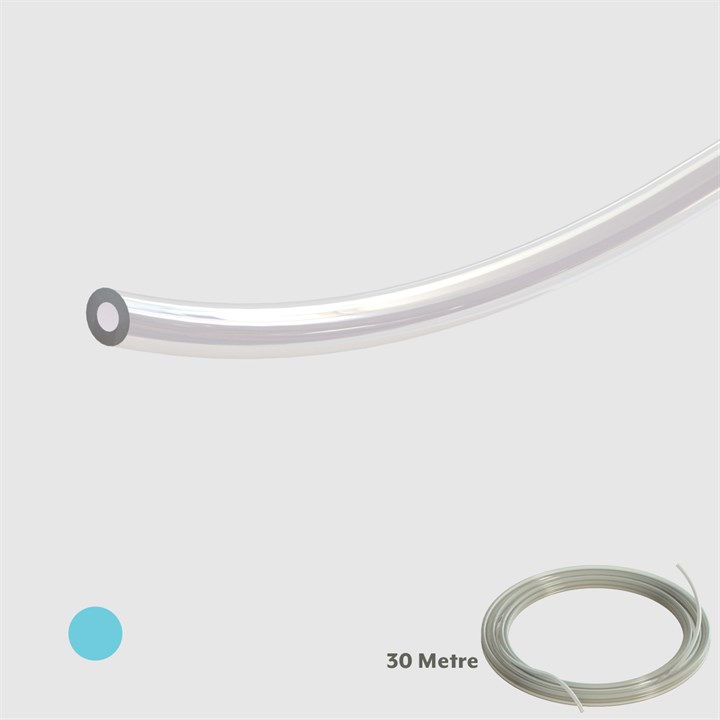

Clear Unreinforced PVC Tubing, 80 Shore A, 1/8" (3.2mm) ID x 1/4" (6.4mm) OD - 30M - Compatible with Blue Dot Fittings

Clear Unreinforced PVC Tubing, 80 Shore A, 1/8" (3.2mm) ID x 1/4" (6.4mm) OD - 30M - Compatible with Blue Dot Fittings

E-T-160096

Clear Unreinforced PVC Tubing, 80 Shore A, 1/8" (3.2mm) ID x 1/4" (6.4mm) OD - 30M - Compatible with Blue Dot Fittings

Clear Unreinforced PVC Tubing, 80 Shore A, 1/8" (3.2mm) ID x 1/4" (6.4mm) OD - 30M
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-T-160096

Clear Unreinforced PVC Tubing, 80 Shore A, 1/8" (3.2mm) ID x 1/4" (6.4mm) OD - 30M - Compatible with Blue Dot Fittings

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Clear Unreinforced PVC Tubing, 80 Shore A, 1/8" (3.2mm) ID x 1/4" (6.4mm) OD - 30M

Extended Description 30 Metre coil (100 Feet) of Un-reinforced flexible clear colour Polyvinyl Chloride (PVC) tubing with an internal diameter of 1/8" (3.2mm), an outside diameter of 1/4" (6.4mm) and a wall thickness of 1/16" (1.6mm) suitable for use with barb style fittings

Non-Wetted Materials Non-Phthalate Polyvinyl Chloride

Wetted Materials Non-Phthalate Polyvinyl Chloride

Cleanroom Manufactured Uncontrolled environment

Temperature Range -34°C to 65°C (-30°F to 150°F)

Working Pressure 3:1 Safety Factor. Vacuum to 11.38 bar (165 psi) at 25°C (75°F) / Vacuum to 1.72 bar (25 psi) at 65°C (150°F)

Operating Range at 25⁰C Vacuum to 11.38 bar (165 psi) at 25°C (75°F)

Diameter Tolerance ±0.005" (±0.127mm) ID/OD

Operating Range at 65⁰C Vacuum to 1.72 bar (25 psi) at 65°C (150°F)

Item Weight 0.91Kg (2.0lb)

ROHS Compliant Yes

Regulatory Information FDA 21 CFR for food contact, USP Class VI, California Prop.65 compliant

CE Mark No

REACH Compliant Yes

Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Latex free, Conflict minerals free, Animal derivative free. Compatible with ETO and Gamma sterilisation method

Durometer 80 Shore A

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
