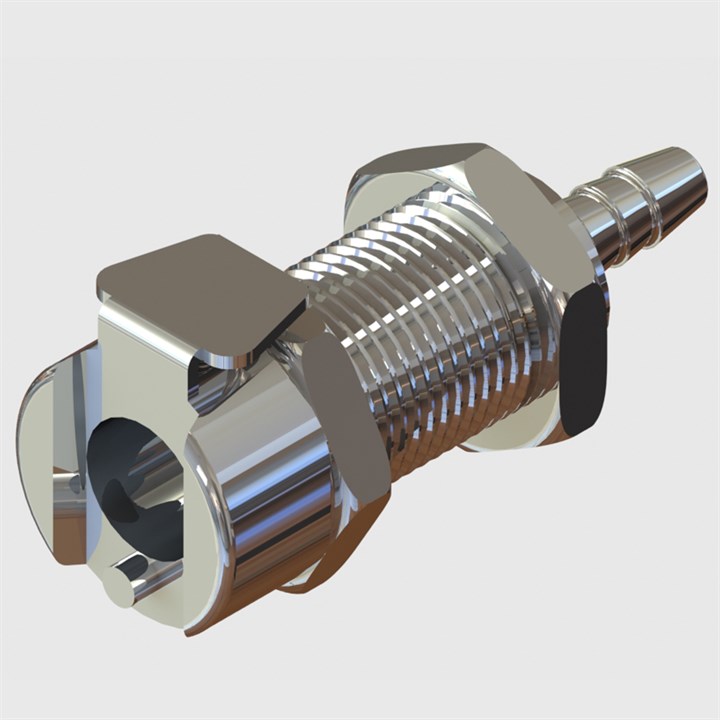

Description Chrome Plated Brass Panel Mount Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 1/8" Flow - Q2 Series

Extended Description 1/8" flow size socket coupling in food grade chrome plated brass, which is more durable and can withstand higher pressure than its plastic equivalent. With an audible thumb-latch connection to mating plug

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style Panel Mount

Connection 1 To suit 3.2 mm (1/8") ID Tube

Connection 2 To mating Q2 Plug Connector

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Chrome Plated Brass, Stainless Steel

Wetted Materials Chrome Plated Brass

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 17.3 bar (250 psi)

Operating Pressure 17.3 bar (250 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0310Kg (31g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q2 Couplings. This product is guaranteed to interconnect with all pre-existing industry standard interchangeable thumb-latch quick release couplings of the same size and style, or if not will be replaced or refunded. Nut is included. Suitable for bi-directional flow. Custom designs available or for further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
