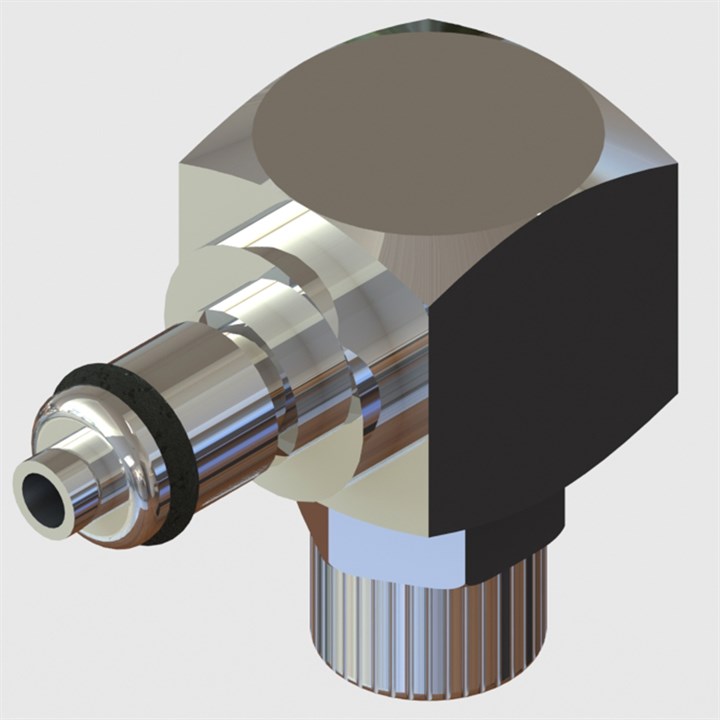

Description Chrome Plated Brass Elbow PTF Plug Coupling, Buna-N Seal, 6.4mm (1/4") OD/4.3mm (0.17") ID Tube, Valved, 1/8" Flow - Q2 Series

Extended Description 1/8" flow size plug coupling in food grade chrome plated brass, which is more durable and can withstand higher pressure than its plastic equivalent. With connection to audible click thumb-latch mating socket

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style In-Line

Connection 1 To mating Q2 Socket Connector

Connection 2 PTF (Poly Tube Fitting) for 6.4 mm (1/4") OD, 4.3 mm (0.17") ID Semi-rigid Tube

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Chrome Plated Brass

Wetted Materials Chrome Plated Brass, Buna-N, DuPont™ Delrin® Acetal (POM) copolymer, 316 Stainless Steel

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 17.3 bar (250 psi)

Operating Pressure 17.3 bar (250 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0170Kg (17g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q2 Couplings. This product is guaranteed to interconnect with all pre-existing industry standard interchangeable thumb-latch quick release couplings of the same size and style, or if not will be replaced or refunded. Suitable for bi-directional flow. Alternative seal materials available. Custom designs available or for further information please contact us on +44 (0)2392 266031
