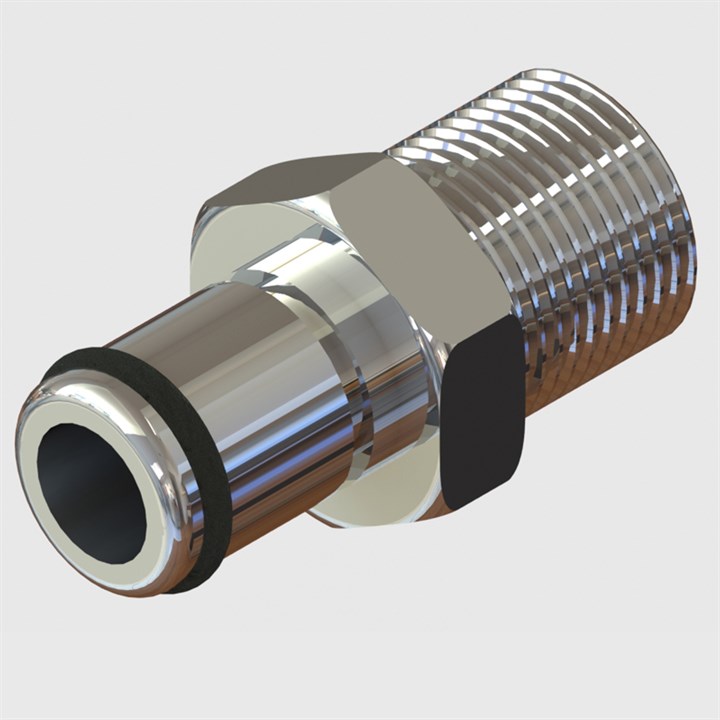

Description Chrome Plated Brass Plug Coupling, Buna-N Seal, 1/4" NPT Male Thread, Non-Valved, 1/4" Flow - Q4 Series

Extended Description 1/4" flow size plug coupling in food grade chrome-plated brass, which is more durable than its plastic equivalent and can withstand higher pressure. For connection to audible click thumb-latch mating socket connector

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style Threaded

Connection 1 To mating Q4 Socket Connector

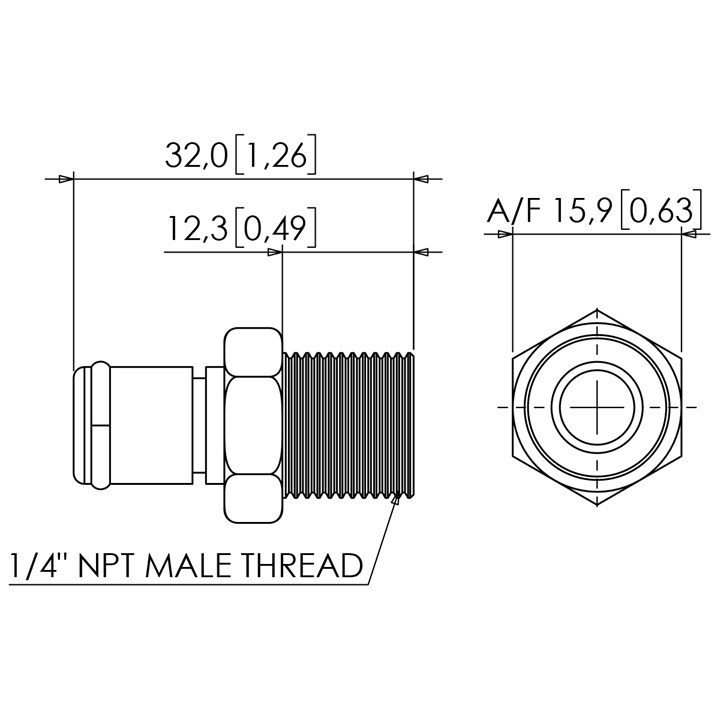

Connection 2 1/4" NPT Male Thread

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Chrome Plated Brass

Wetted Materials Chrome Plated Brass, Buna-N

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 17.3 bar (250 psi)

Operating Pressure 17.3 bar (250 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0180Kg (18g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q4 Couplings. This product is guaranteed to interconnect with all pre-existing industry standard interchangeable thumb-latch quick release couplings of the same size and style, or if not will be replaced or refunded. Suitable for bi-directional flow. Alternative seal materials available. Custom designs available or for further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
