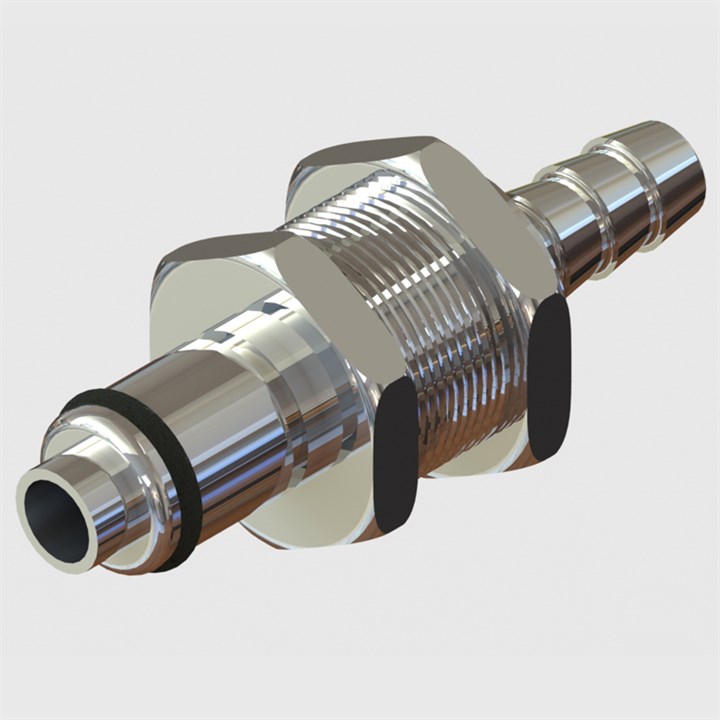

Description Chrome Plated Brass Panel Mount Plug Coupling, Buna-N Seal, 6.4mm (1/4") ID Tube, Valved, 1/4" Flow - Q4 Series

Extended Description 1/4" flow size plug coupling in food grade chrome plated brass, which is more durable and can withstand higher pressure than its plastic equivalent. For connection to audible click thumb-latch mating socket coupling

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style Panel Mount

Connection 1 To suit 6.4mm (1/4") ID Tube

Connection 2 To mating Q4 Socket Connector

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Chrome Plated Brass

Wetted Materials Chrome Plated Brass, Buna-N, DuPont™ Delrin® Acetal (POM) copolymer, 316 Stainless Steel

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 17.3 bar (250 psi)

Operating Pressure 17.3 bar (250 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0340Kg (34g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q4 Couplings. This product is guaranteed to interconnect with all pre-existing industry standard interchangeable thumb-latch quick release couplings of the same size and style, or if not will be replaced or refunded. Nut is included. Suitable for bi-directional flow. Alternative seal materials available. Custom designs available or for further information please contact us on +44 (0)2392 266031
