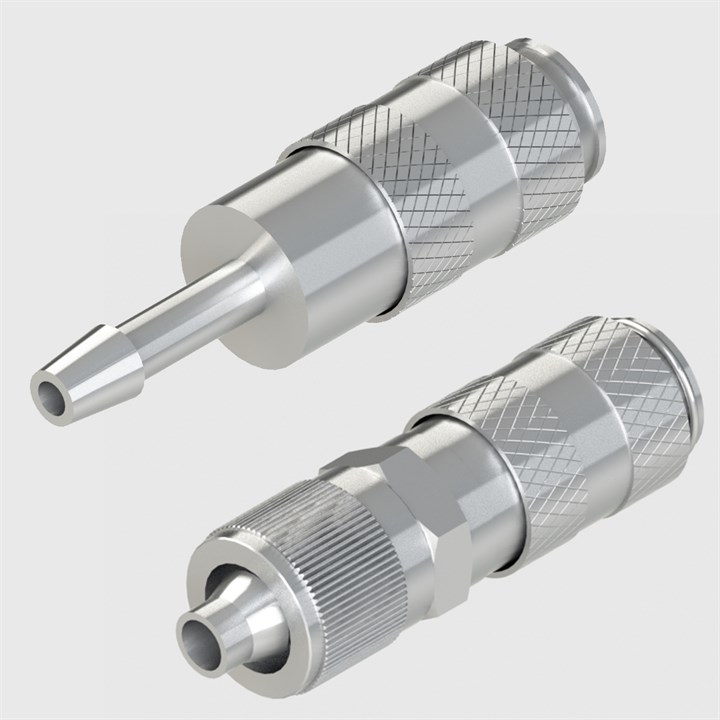

Description Quick-Connect Coupling, Mini Profile, NP Brass body, 1/8" BSPP Male Thread Socket

Extended Description Nickel Plated Brass Socket quick-connect coupling, 1/8" BSPP male thread. Non-valved. DN2.7 Mini profile mates with Rectus 20 and Festo KD-KS 2 series couplings

Ambient Temperature -20°C to 100°C (-4°F to 212°F)

Mounting Style In-line

Connection 1 1/8" BSPP Male Thread

Connection 2 To mating Plug Connector

Recommended Filtration To suit application and media used

Media Temperature -20°C to 100°C (-4°F to 212°F)

Non-Wetted Materials Nickel Plated Brass

Wetted Materials Nickel-Plated Brass, Buna-N, Stainless Steel V2A

Max. Inlet Pressure 16 bar (232 psi)

Operating Pressure 0 to 12 bar (0 to 174 psi)

Min Inlet Pressure 1 bar (15 psi)

Item Weight 0.0108Kg (10.8g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266036
