Black Polysulfone Equal Straight Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Black Polysulfone Equal Straight Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

E-F-170613

Black Polysulfone Equal Straight Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Black Polysulfone Equal Straight Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

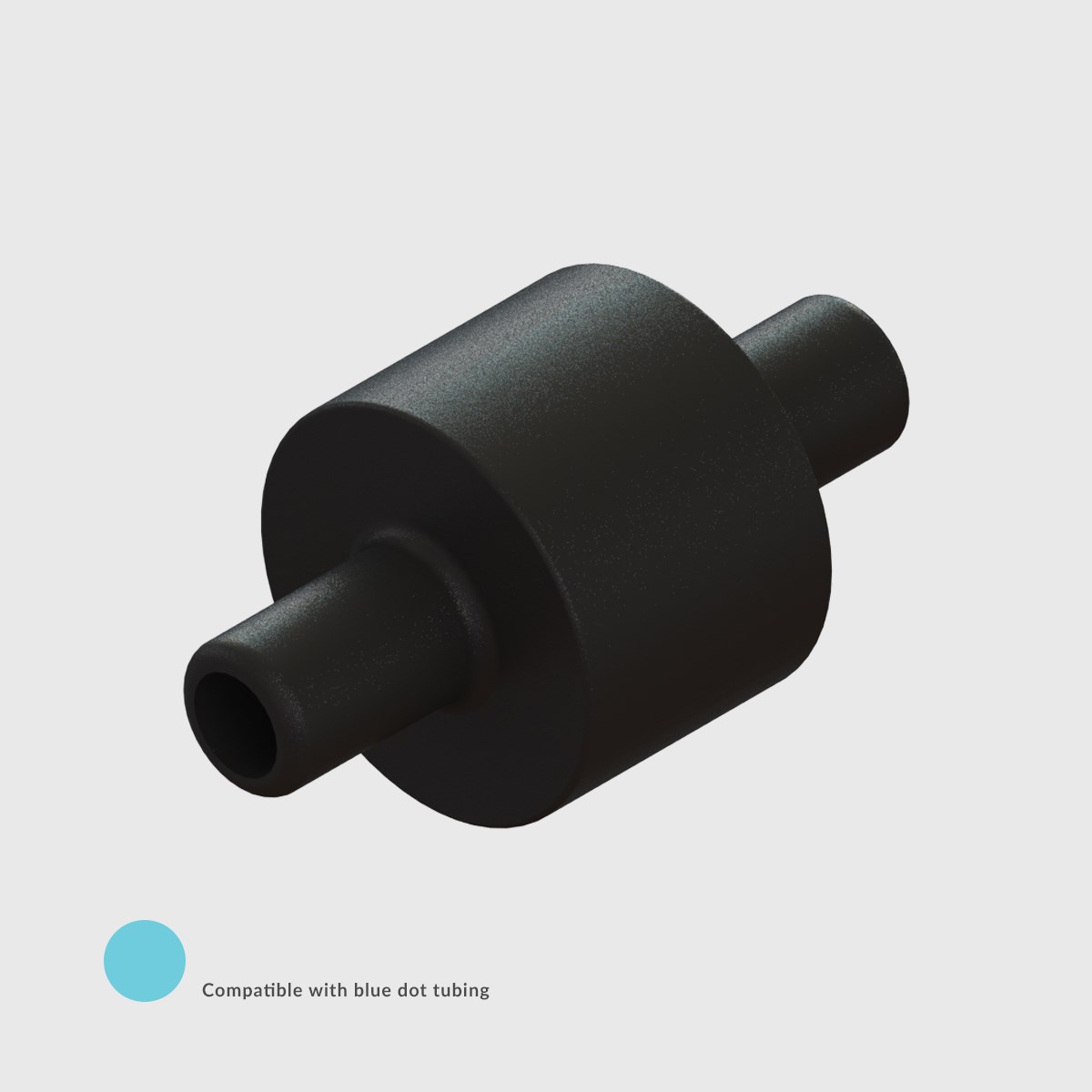

Compatible blue dot tubing
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-170613

Black Polysulfone Equal Straight Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Black Polysulfone Equal Straight Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Extended Description A black Polysulfone bodied equal straight connector with straight ports to suit 1/16" (1.6mm) ID tube

Ambient Temperature 5°C – 48°C (40°F – 120°F)

Mounting Style In-Line

Connection 1 To suit 1/16" (1.6mm) ID Tube

Connection 2 To suit 1/16" (1.6mm) ID Tube

Recommended Filtration To suit application and media

Media Temperature 5°C to 48°C (40°F to 120°F)

Non-Wetted Materials Polysulfone

Wetted Materials Polysulfone

Max. Inlet Pressure 8.62 bar (125 psi)

Material Polysulfone

Item Weight 0.0005Kg (0.5g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Suitable for compressed air and vacuum. For further information please contact us on +44 (0)2392 266037

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

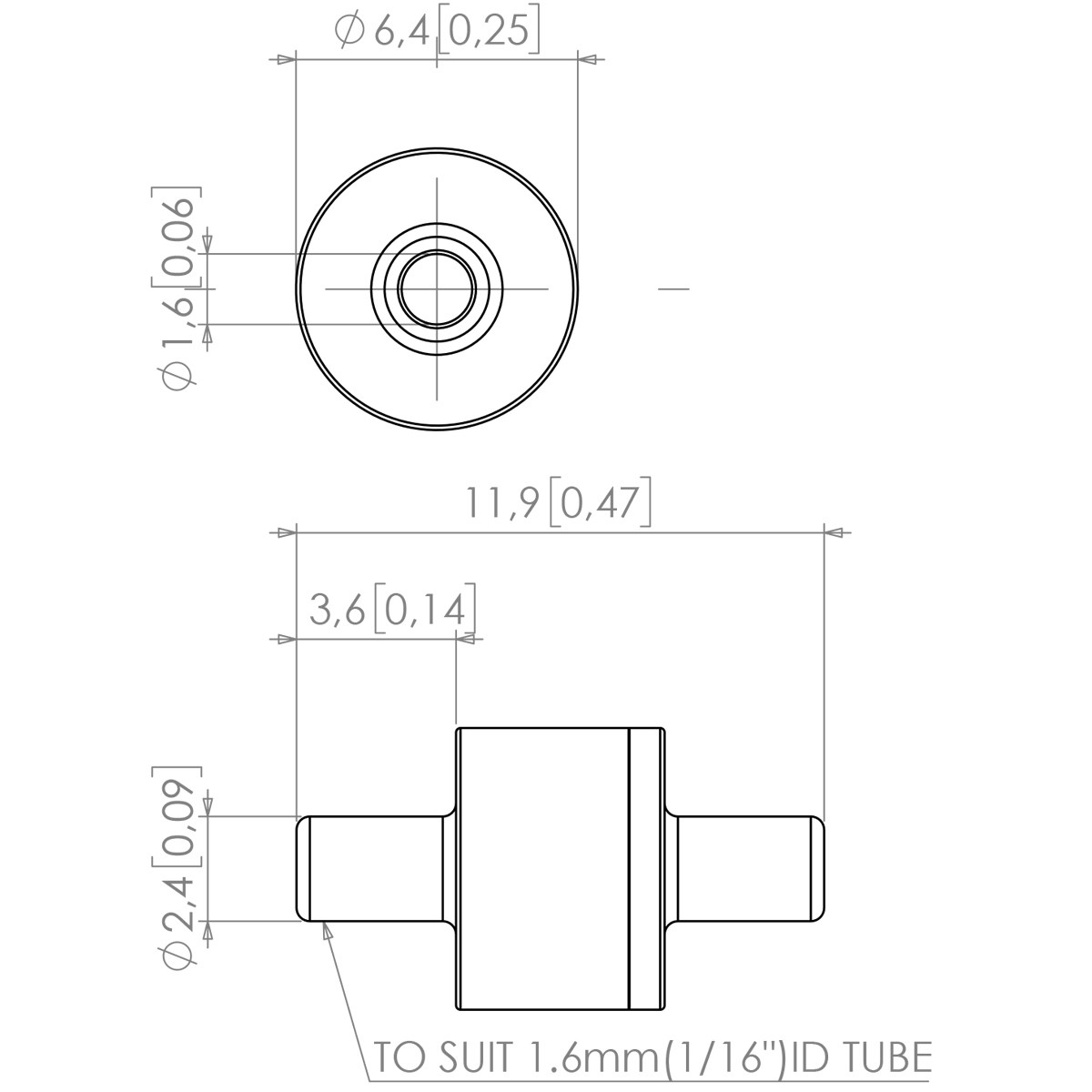

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
