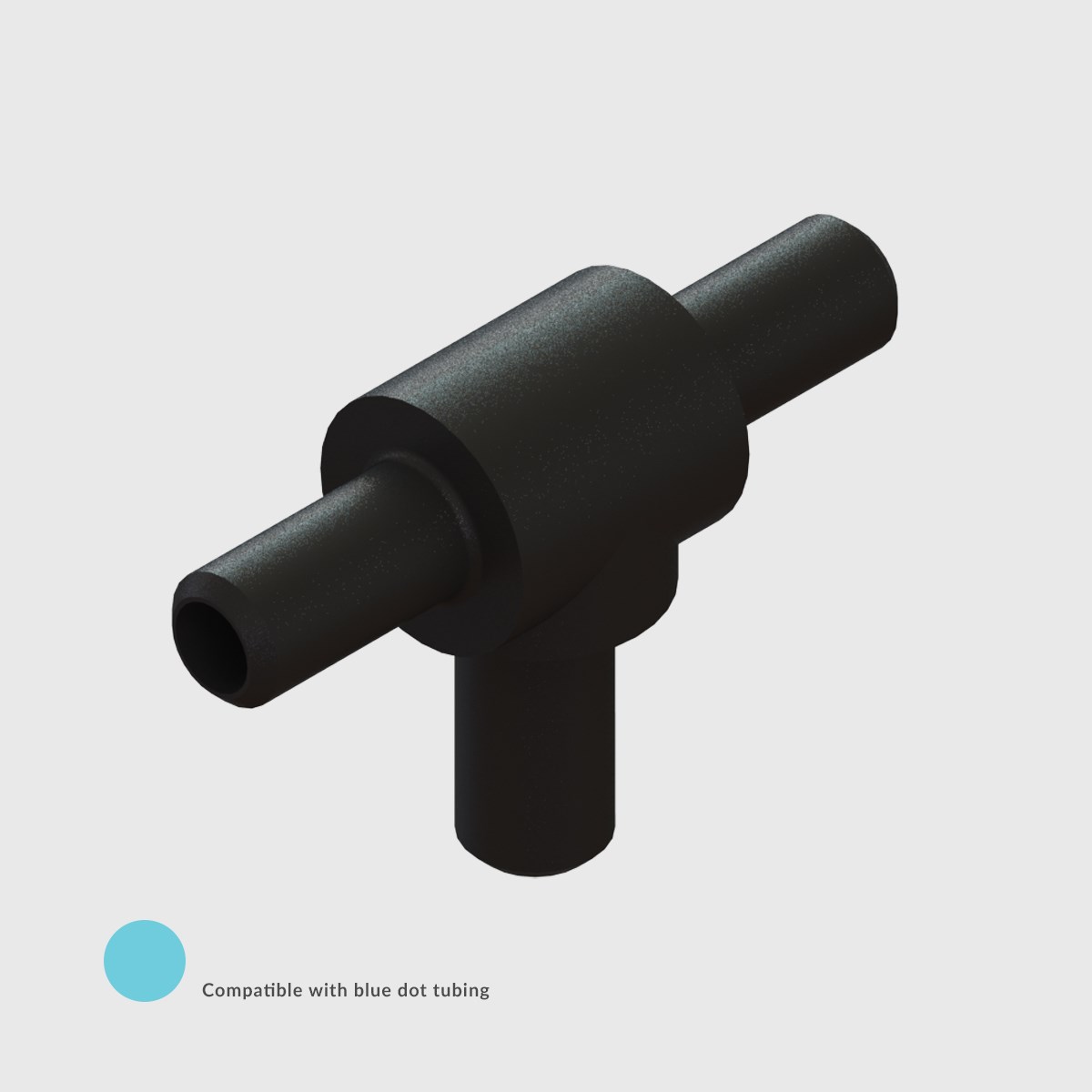

Black Celcon Equal Tee Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Black Celcon Equal Tee Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

E-F-170626

Black Celcon Equal Tee Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Black Celcon Equal Tee Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing
Compatible blue dot tubing
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-170626

Black Celcon Equal Tee Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Black Celcon Equal Tee Barbless Connector, 1/16" (1.6mm) ID Tube - Compatible With Blue Dot Tubing

Extended Description A black Celcon bodied equal tee connector with straight ports to suit 1/16" (1.6mm) ID tube

Ambient Temperature 5°C – 48°C (40°F – 120°F)

Mounting Style In-Line

Connection 1 To suit 1/16" (1.6mm) ID Tube

Connection 3 To suit 1/16" (1.6mm) ID Tube

Connection 2 To suit 1/16" (1.6mm) ID Tube

Recommended Filtration To suit application and media

Media Temperature 5°C to 48°C (40°F to 120°F)

Non-Wetted Materials Celcon

Wetted Materials Celcon

Max. Inlet Pressure 1.72 bar (25 psi)

Material Celcon

Item Weight 0.0002Kg (0.2g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Suitable for compressed air and vacuum. For further information please contact us on +44 (0)2392 266050

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

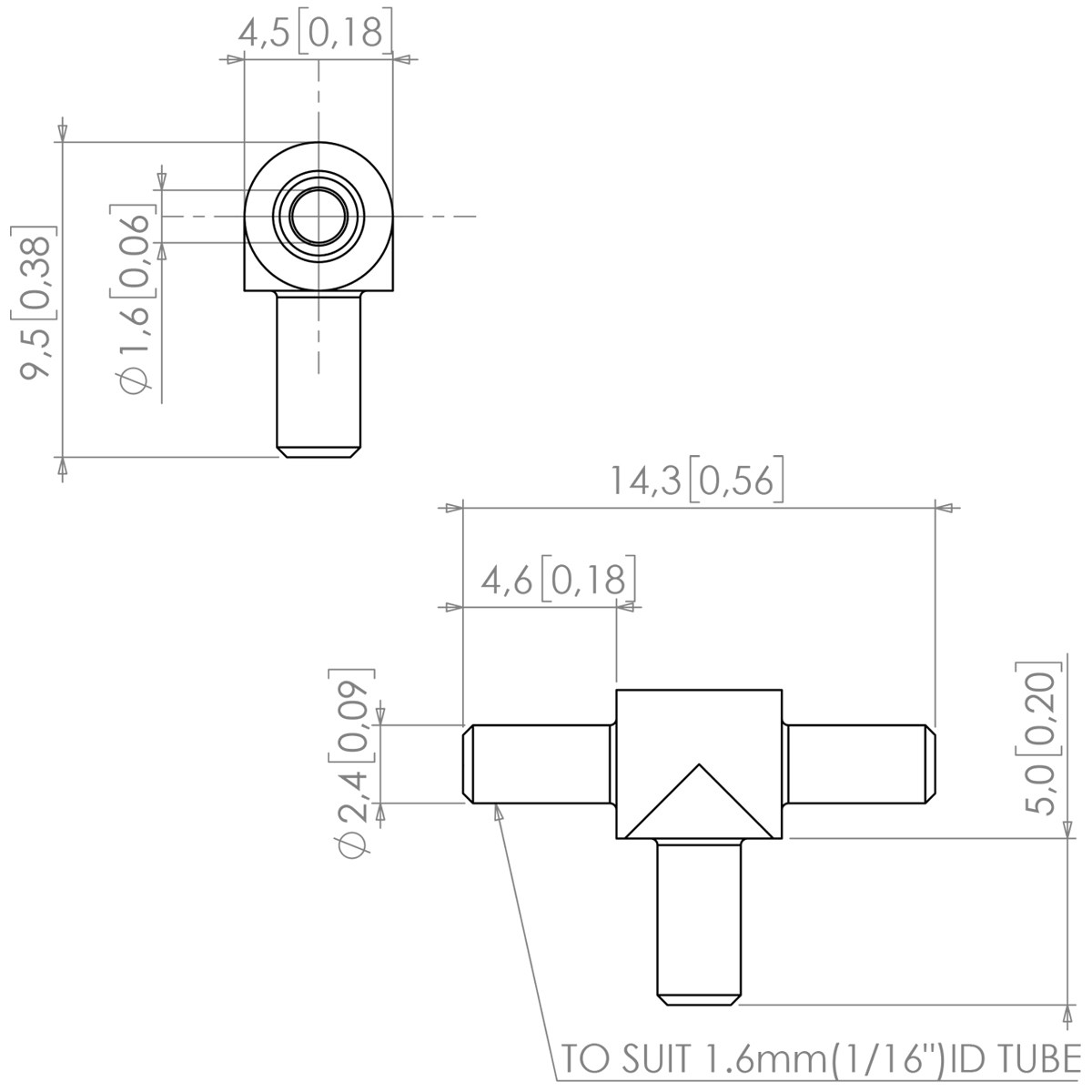

Dimensional Drawing (pdf)

3D model (IGS)
