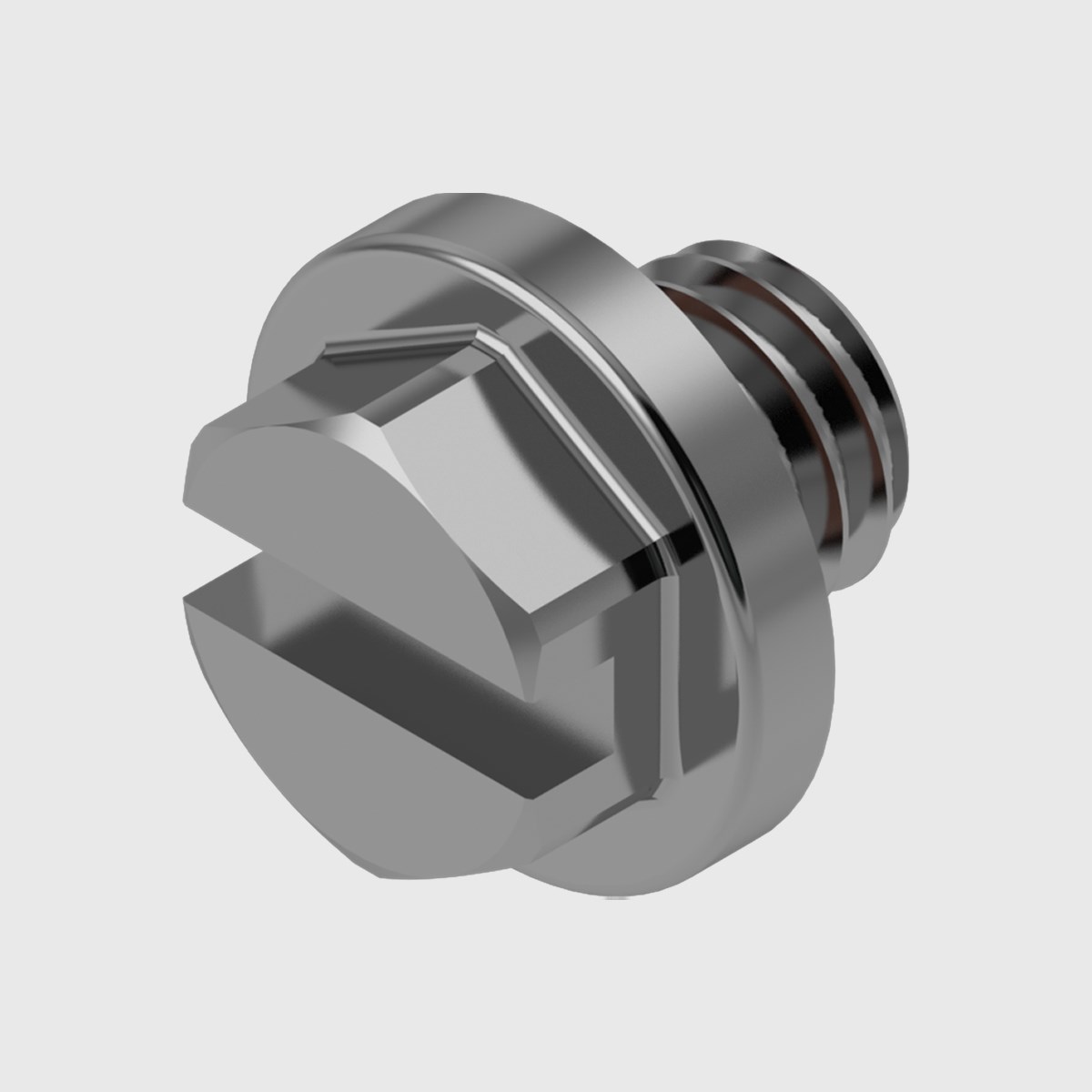

316 Stainless Steel Blanking Plug, Viton (FKM) Seal, 10-32 UNF Male Thread

316 Stainless Steel Blanking Plug, Viton (FKM) Seal, 10-32 UNF Male Thread

E-F-1U-PG-316-V

316 Stainless Steel Blanking Plug, Viton (FKM) Seal, 10-32 UNF Male Thread

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

316 Stainless Steel Blanking Plug, Viton (FKM) Seal, 10-32 UNF Male Thread
$10.75
Price per piece
Sold in multiples of 10
Add To Wishlist
Quantity
Price

1 - 250

$10.75

251 - 500

$10.21

501

$9.67

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-F-1U-PG-316-V

316 Stainless Steel Blanking Plug, Viton (FKM) Seal, 10-32 UNF Male Thread

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description 316 Stainless Steel Blanking Plug, Viton (FKM) Seal, 10-32 UNF Male Thread

Extended Description A blanking plug with a 316 Stainless Steel body, featuring a 10-32 UNF male thread and Viton (FKM) O-ring seal for secure sealing

Ambient Temperature -15 to 200°C (5 to 392°F)

Mounting Style Threaded

Connection 1 None - Closed End

Connection 2 10-32 UNF Male Thread

Recommended Filtration To suit application and media used

Media Temperature -15 to 200°C (5 to 392°F)

Non-Wetted Materials 316 Stainless Steel

Wetted Materials 316 Stainless Steel, Viton (FKM)

Item Weight 0.00176kg (1.76g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data This product incorporates a specially engineered groove design that complements the O-ring seal, resulting in a highly effective and leak-tight joint. Together, the groove design and O-ring work seamlessly to ensure superior sealing performance for this product. O-rings are available in multiple materials, including EPDM, Buna-N (Nitrile), Silicone, and Viton (FKM). For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
