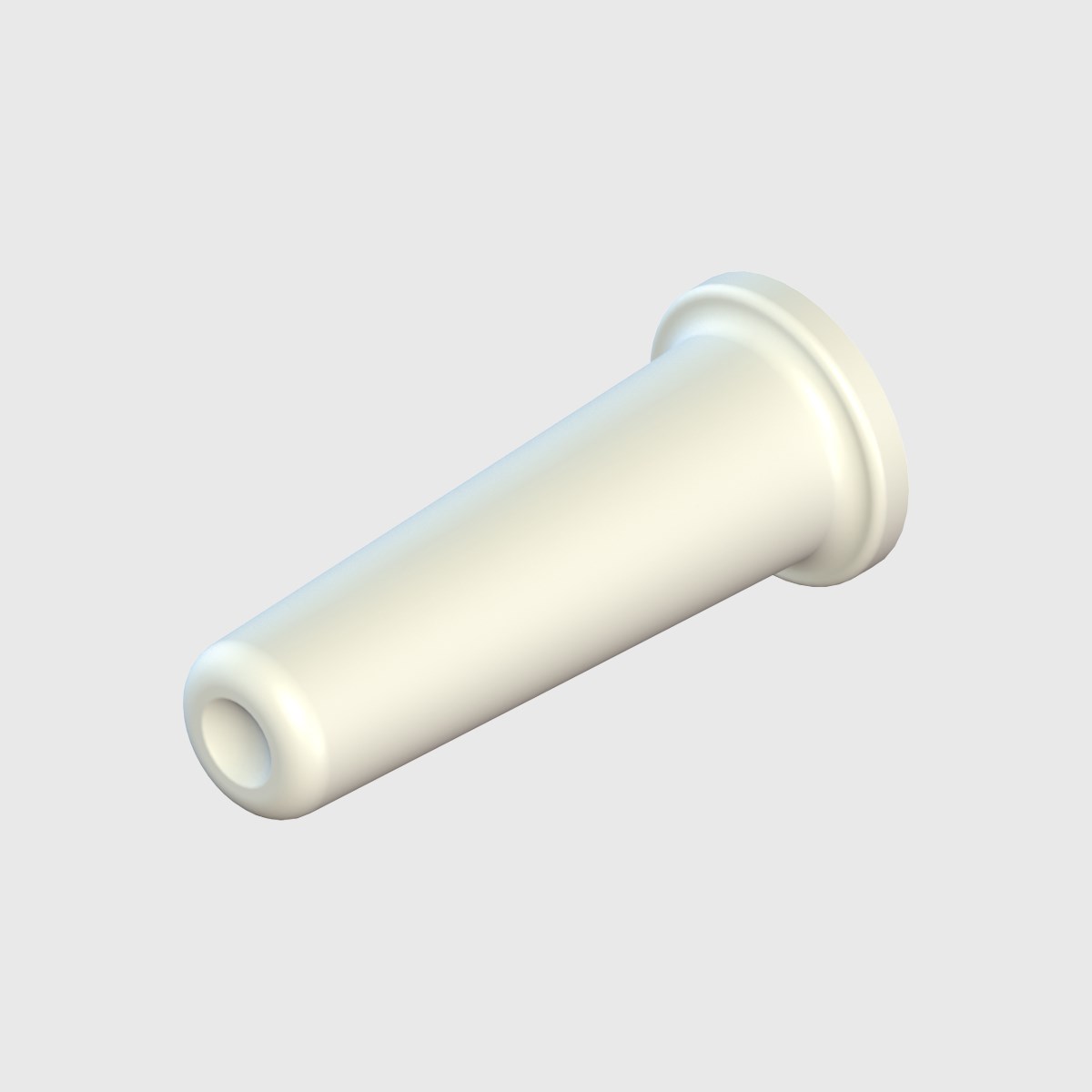

White Nylon Spike Cap

White Nylon Spike Cap

E-F-210274

White Nylon Spike Cap

White Nylon Spike Cap
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-210274

White Nylon Spike Cap

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description White Nylon Spike Cap

Extended Description A white Nylon bodied cap use for spike

Mounting Style In-Line

Connection 2 To mating Spike

Non-Wetted Materials Nylon

Wetted Materials Nylon

Cleanroom Manufactured Class 8 (100,000) cleanroom

Material Nylon

Item Weight 0.0020Kg (2g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for FDA 21 CFR 177.1500, California Prop. 65

REACH Compliant Yes

Other Technical Data Phthalate Free. Latex Free. DEHP Free. Ozone depleting substrances compliant. Compatible with EtO(Ethylene Oxide) sterilization and can withstand gamma sterilization to 50kGy. It does have a tendency to discolour with increased doses of gamma radiation. Nylon can also be autoclaved. It is a hygroscopic material and may swell when exposed to moist environments. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

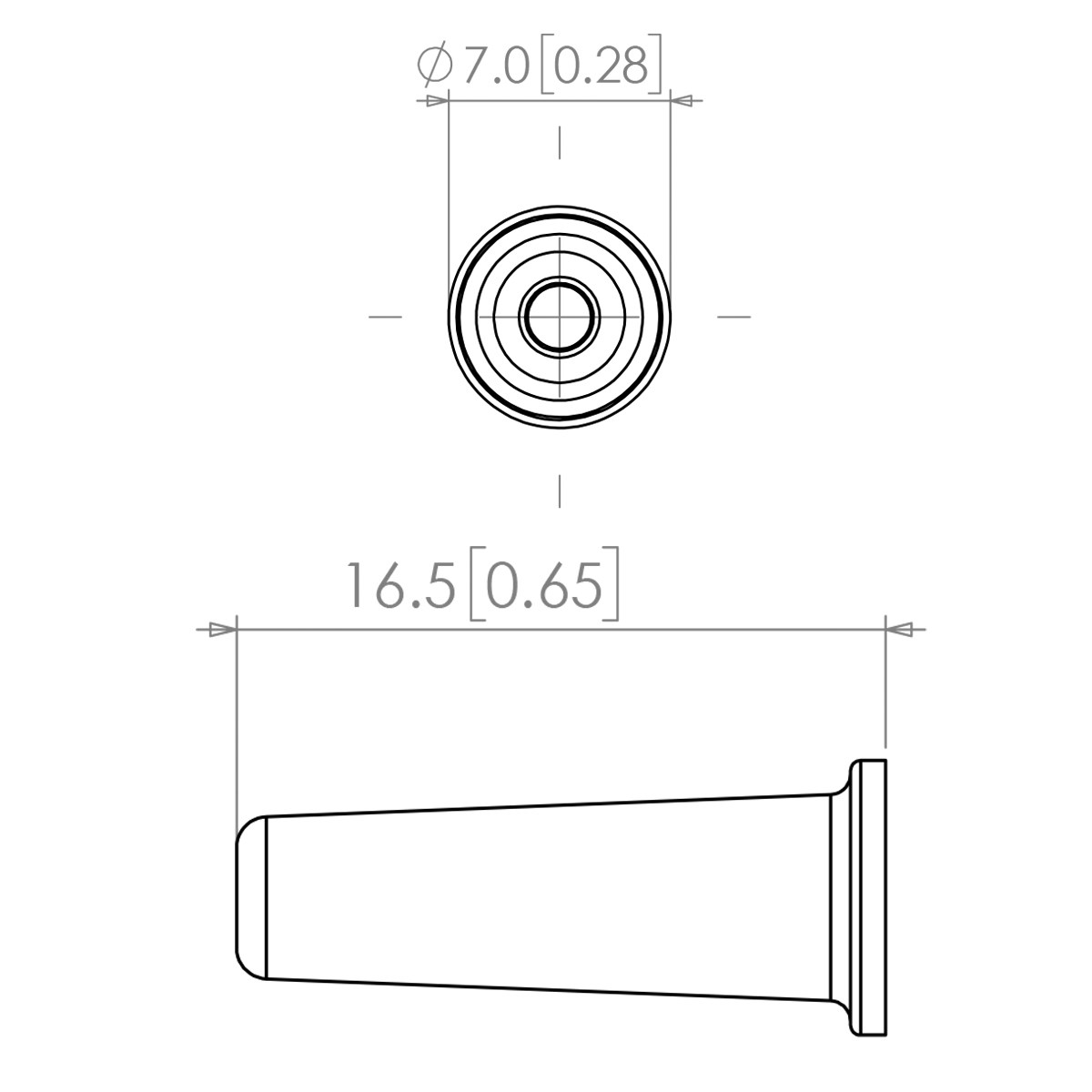

Dimensional Drawing (pdf)

3D model (IGS)
