316L Stainless Steel Straight Adaptor, Viton Seal, 6.0mm OD Stem to 4.0mm OD Push-In Fitting - Compatible With Green Dot Tubing

316L Stainless Steel Straight Adaptor, Viton Seal, 6.0mm OD Stem to 4.0mm OD Push-In Fitting - Compatible With Green Dot Tubing

E-F-170940

316L Stainless Steel Straight Adaptor, Viton Seal, 6.0mm OD Stem to 4.0mm OD Push-In Fitting - Compatible With Green Dot Tubing

316L Stainless Steel Straight Adaptor, Viton Seal, 6.0mm OD Stem to 4.0mm OD Push-In Fitting - Compatible With Green Dot Tubing
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-170940

316L Stainless Steel Straight Adaptor, Viton Seal, 6.0mm OD Stem to 4.0mm OD Push-In Fitting - Compatible With Green Dot Tubing

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description 316L Stainless Steel Straight Adaptor, Viton Seal, 6.0mm OD Stem to 4.0mm OD Push-In Fitting - Compatible With Green Dot Tubing

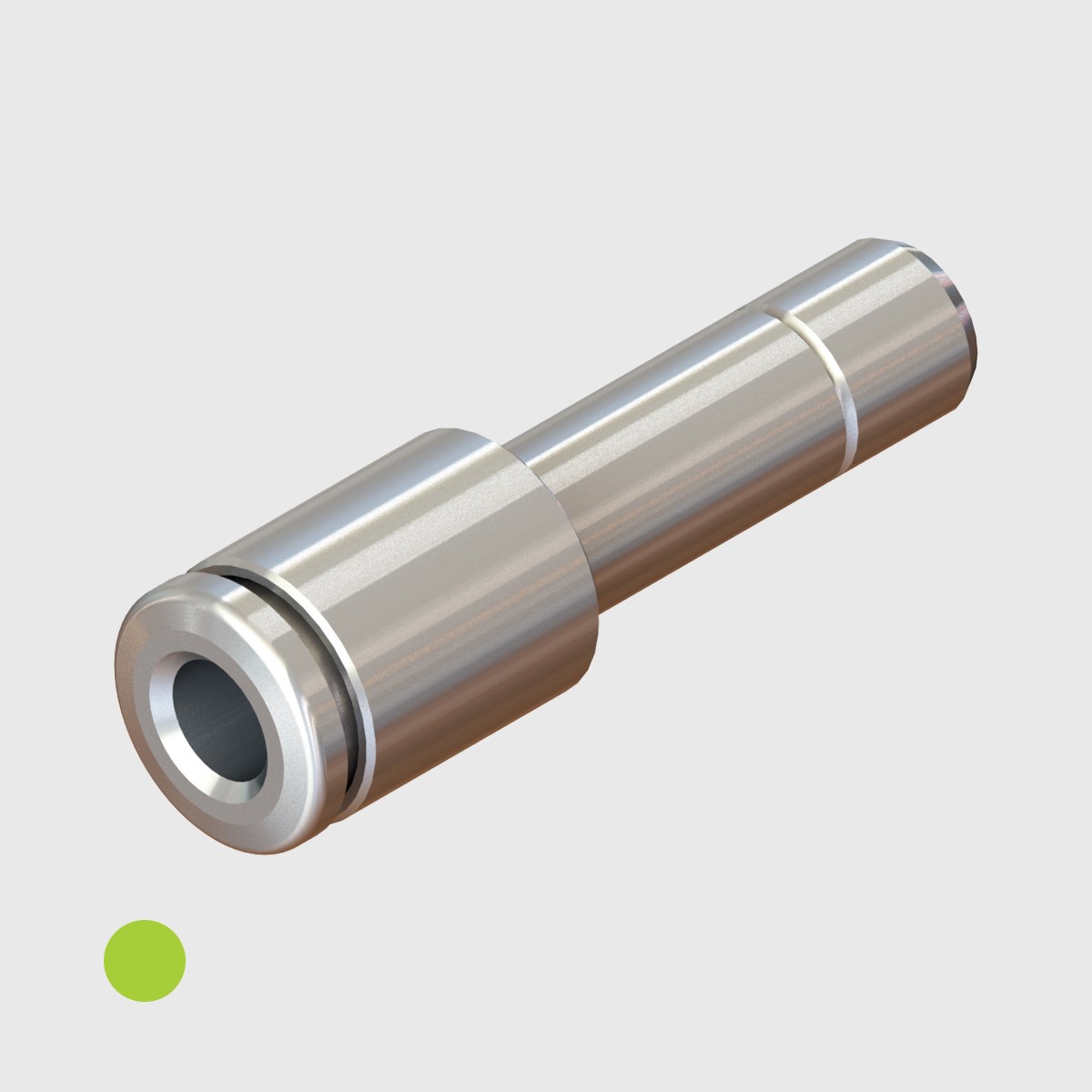

Extended Description A 316L Stainless Steel bodied straight Adaptor with Viton seals, 6.0mm OD stem and 4.0mm OD push-in fitting

Ambient Temperature -20°C to 150°C (-4°F to 302°F)

Mounting Style In-Line

Connection 1 6.0mm OD Stem

Connection 2 Push-In Fitting to suit 4.0mm OD Tube

Recommended Filtration To suit application and media used

Media Temperature -20°C to 150°C (-4°F to 302°F)

Non-Wetted Materials 316L Stainless Steel

Wetted Materials 316L Stainless Steel, Viton

Cleanroom Manufactured No

Max. Inlet Pressure 16 bar (232 psi)

Operating Pressure 16 bar (232 psi)

Item Weight 0.0054Kg (5.4g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Suitable for media compatible with the component materials. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

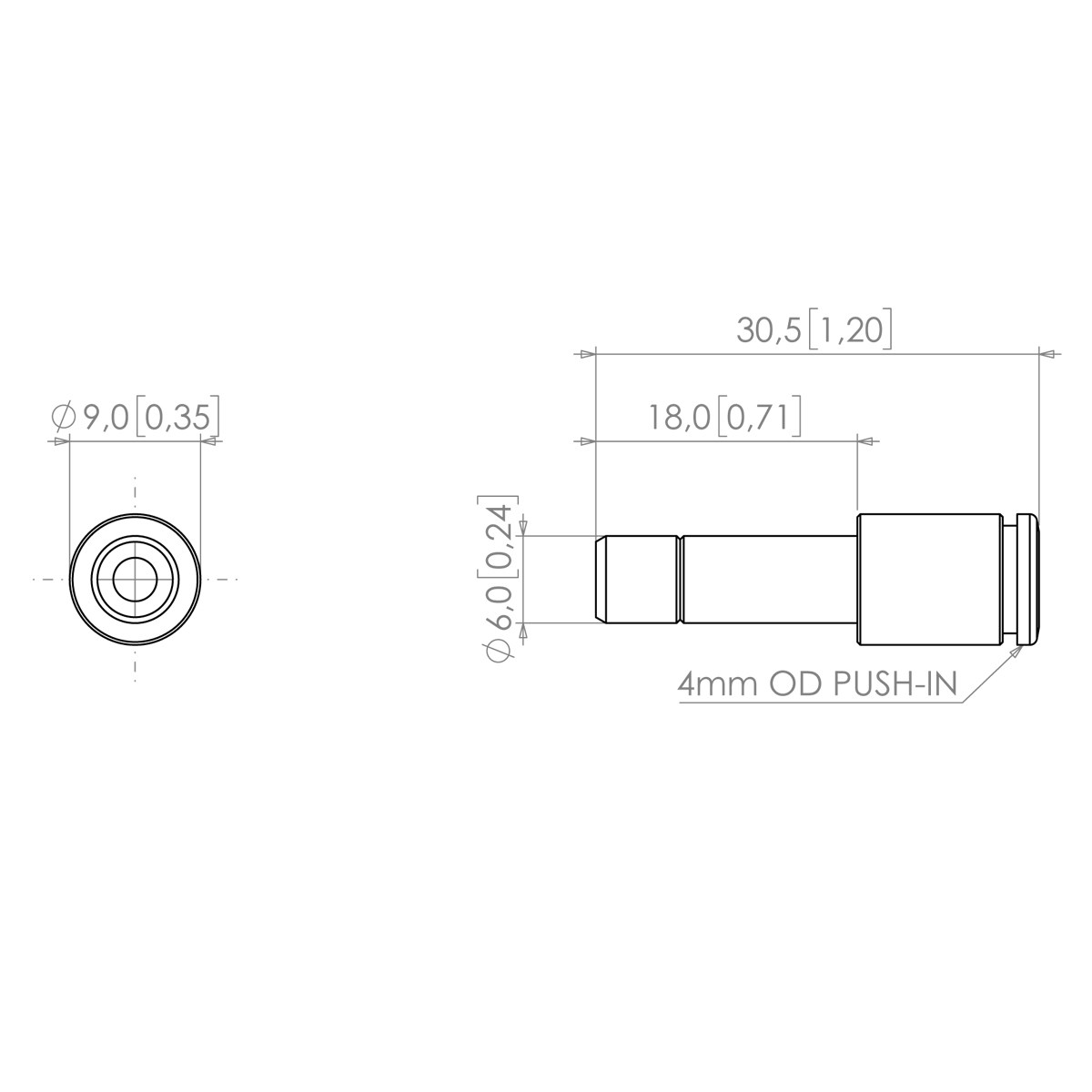

Dimensional Drawing (pdf)

3D model (IGS)
