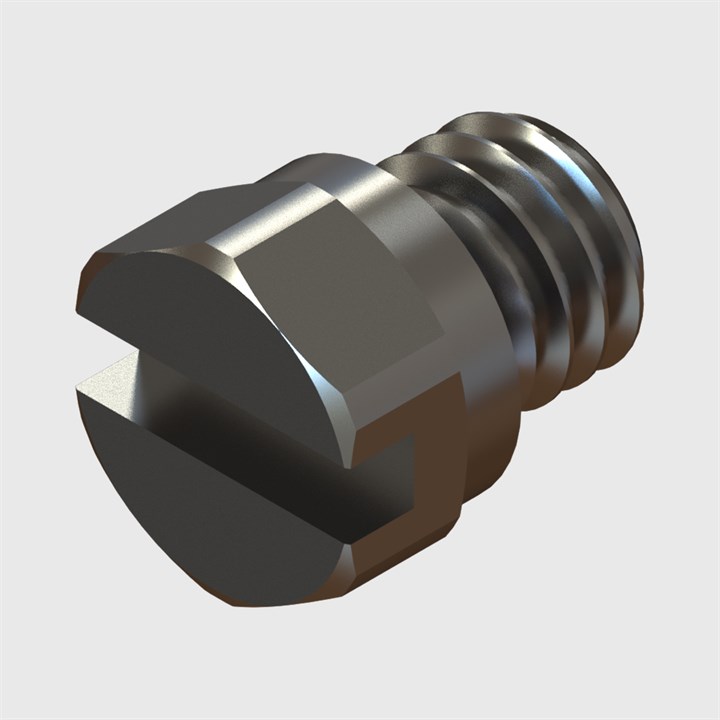

Nickel Plated Brass Blanking Plug, EPDM Seal, 10-32 UNF Male Thread

Nickel Plated Brass Blanking Plug, EPDM Seal, 10-32 UNF Male Thread

E-F-1U-PG-NPB-E

Nickel Plated Brass Blanking Plug, EPDM Seal, 10-32 UNF Male Thread

Nickel Plated Brass Blanking Plug, EPDM Seal, 10-32 UNF Male Thread
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-1U-PG-NPB-E

Nickel Plated Brass Blanking Plug, EPDM Seal, 10-32 UNF Male Thread

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Nickel Plated Brass Blanking Plug, EPDM Seal, 10-32 UNF Male Thread

Extended Description This blanking plug features an undercut groove for the O-ring, ensuring a secure, leak proof fit that maintains integrity even in high pressure or high vibration situations. The Nickel Plated Brass body provides etocellent corrosion resistance, while the EPDM O-ring resists water, steam, ozone, and mild chemicals. Ideally for general purpose sealing and applications with low mechanical stress

Mounting Style Threaded

Connection 1 None - Closed

Connection 2 10-32 UNF Male Thread

Recommended Filtration To suit application and media used

Non-Wetted Materials Nickel Plated Brass

Wetted Materials Nickel Plated Brass, EPDM

Item Weight 0.0014 (1.4g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266032

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
