Black Nylon Equal Nipple, 10-32 UNF Male Thread

Black Nylon Equal Nipple, 10-32 UNF Male Thread

E-F-250053

Black Nylon Equal Nipple, 10-32 UNF Male Thread

Black Nylon Equal Nipple, 10-32 UNF Male Thread
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-250053

Black Nylon Equal Nipple, 10-32 UNF Male Thread

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

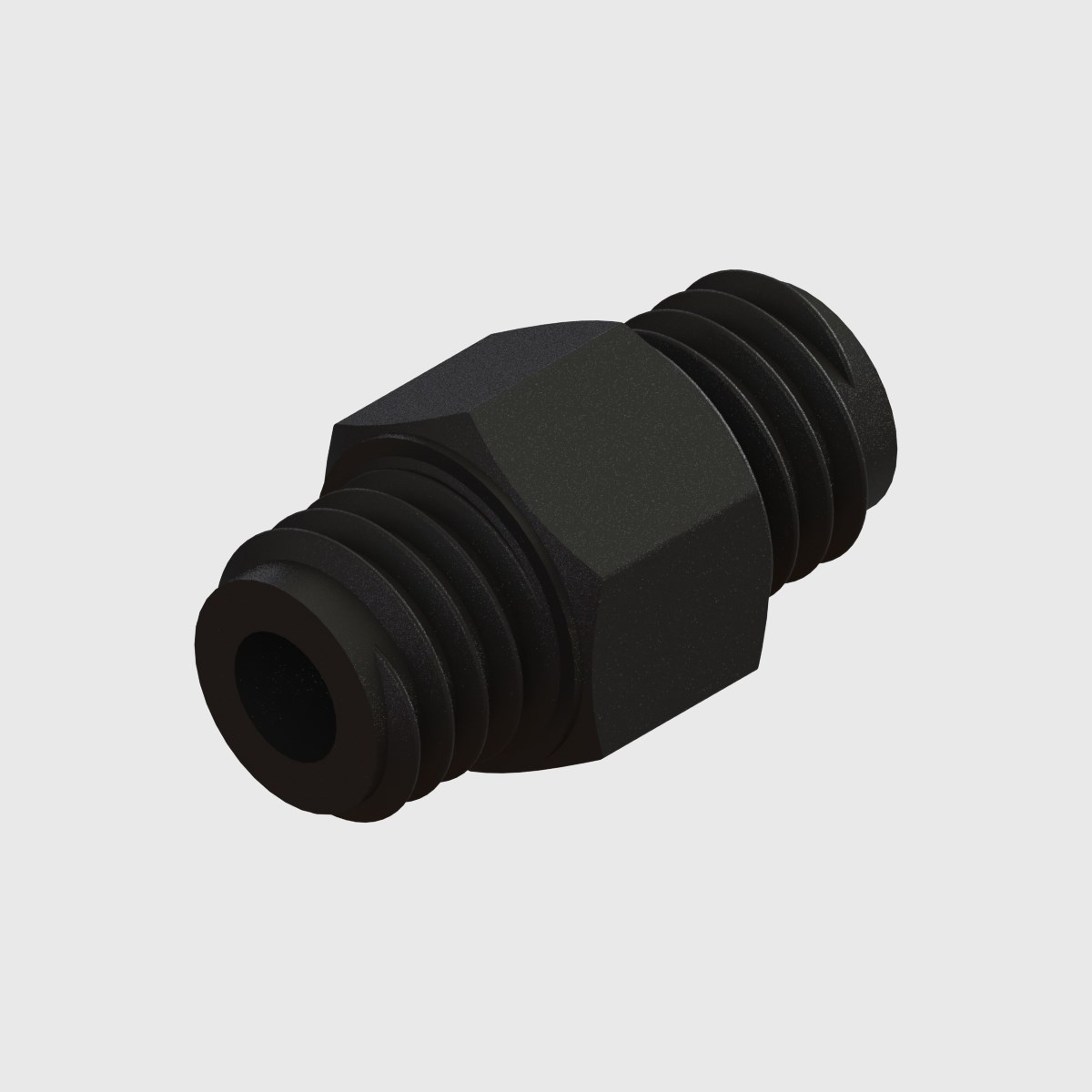

Description Black Nylon Equal Nipple, 10-32 UNF Male Thread

Extended Description A black Nylon body equal nipple with 10-32 UNF male thread. Designed with interference on the pitch diameter, a 120° chamfer, and a single use crush bead, this connection ensures a reliable seal without the need for an O-ring. Ideally for automotive fuel and fluid system, hydraulic and pneumatic systems and appliance components applications

Connection 1 10-32 UNF Male Thread

Connection 2 10-32 UNF Male Thread

Recommended Filtration To suit application and media used

Max. Inlet Pressure 8.6 bar (125 psi)

Item Weight 0.00024kg (0.24g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Suitable for compressed air and vacuum. For further information please contact us on +44 (0)2392 266033

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

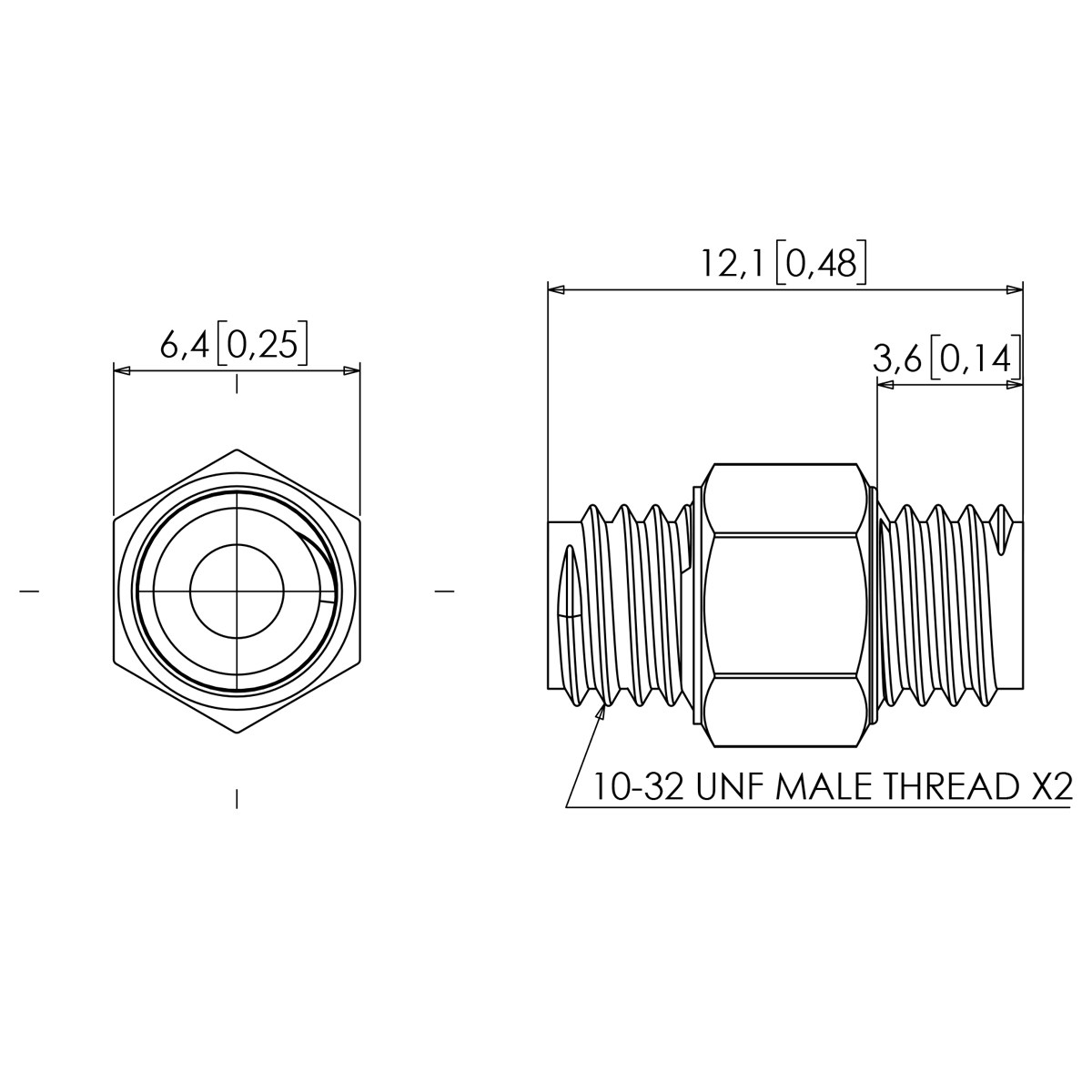

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
