Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Luer Lock

E-F-171362

Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Luer Lock

Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Luer Lock

Description Nickel Plated Brass Valved Luer, Silicone Seal, 1/8" NPT Male Thread to Female Luer Lock

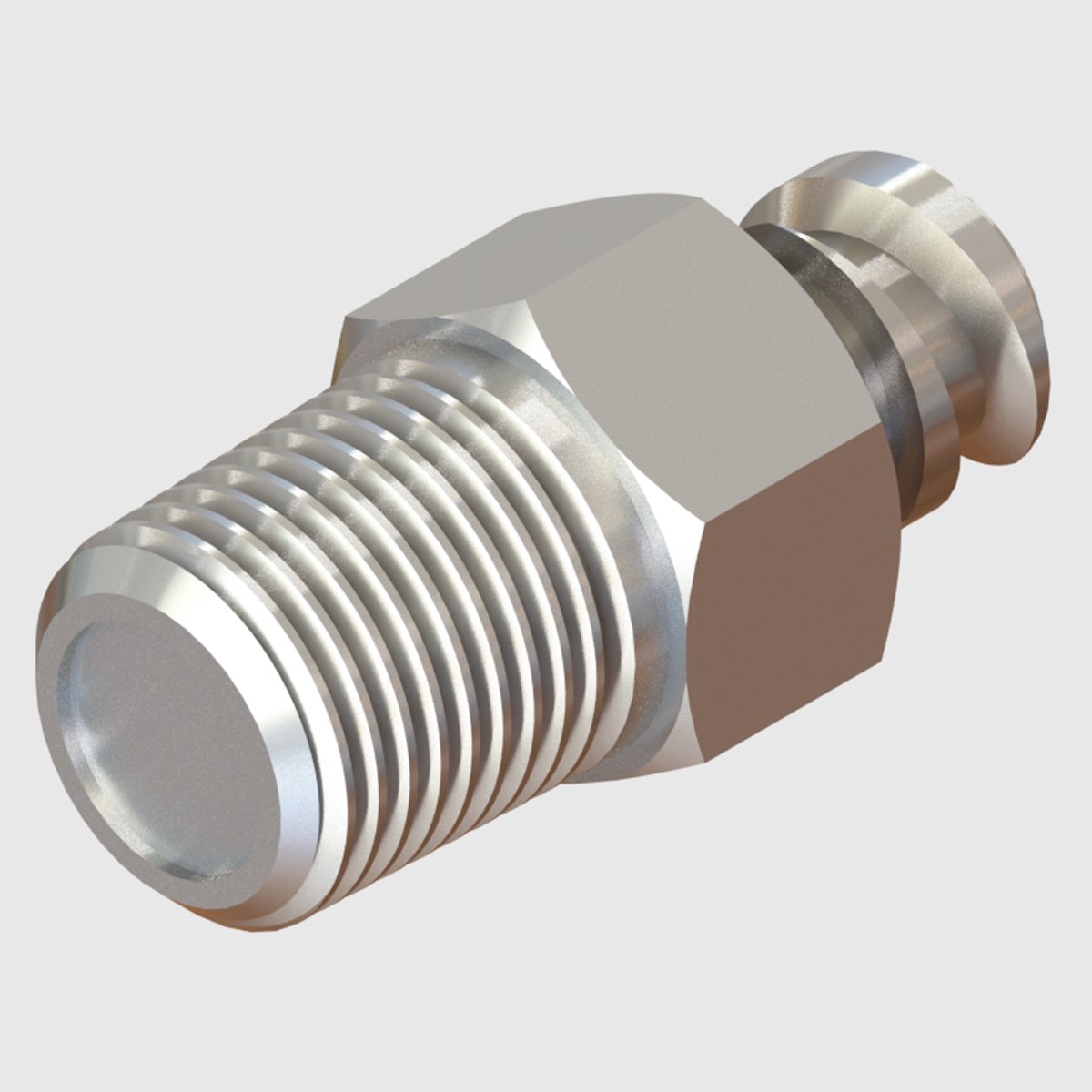

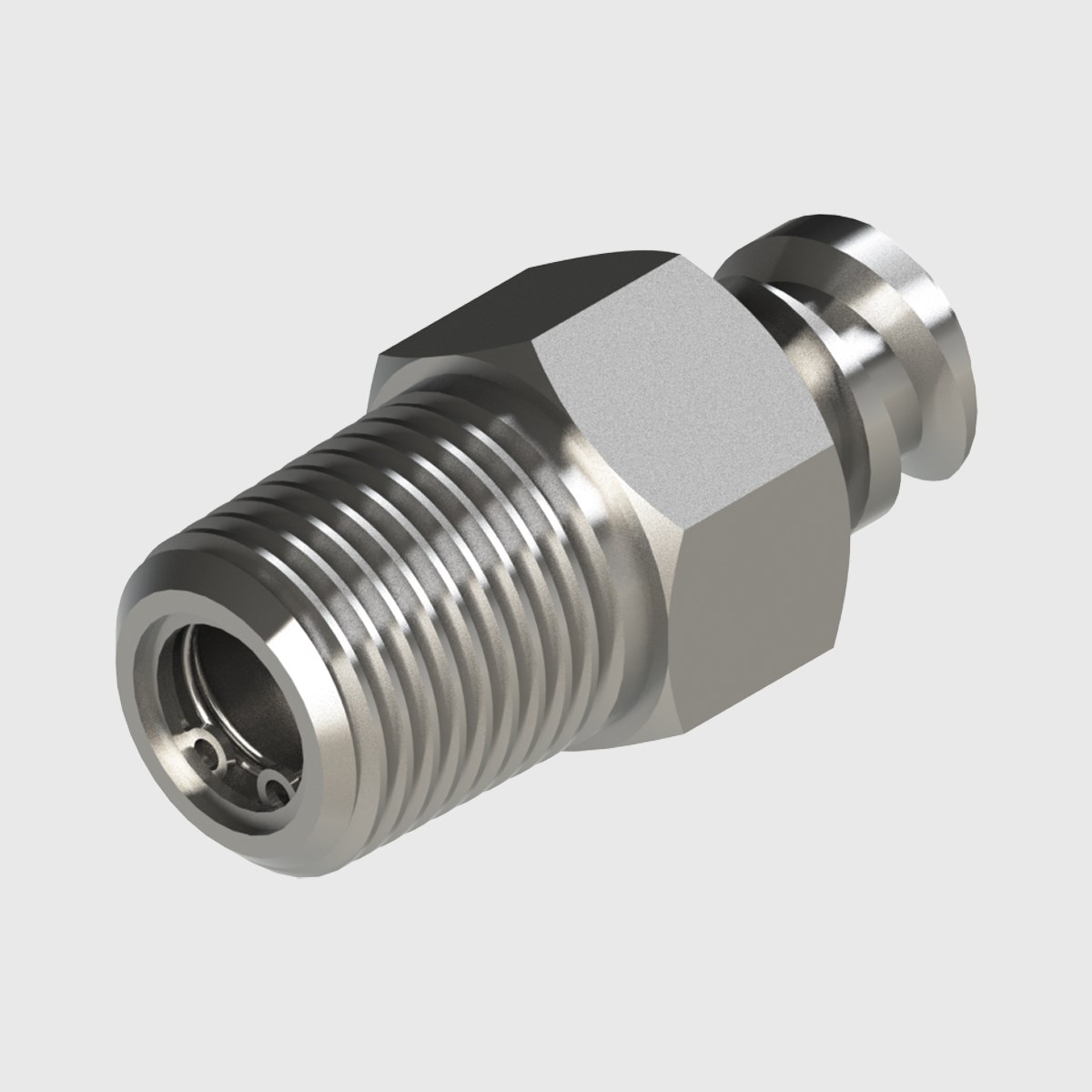

Extended Description A Nickel Plated Brass bodied luer valve with 1/8" NPT male Thread to female luer lock, complete with Silicone o-ring and 302 Stainless Steel spring. Valve open only when connected to male luer

Ambient Temperature -40 to 200°C (-40 to 392°F)

Mounting Style Threaded

Connection 1 1/8" NPT Male Thread

Connection 2 Female Luer Lock

Media Temperature -40 to 200°C (-40 to 392°F)

Non-Wetted Materials Nickel Plated Brass

Wetted Materials Nickel Plated Brass, Silicone, 302 Stainless Steel

Cleanroom Manufactured No

Max. Inlet Pressure No Data Available – Sample Test for Suitability

Operating Pressure Vacuum – 3.1 bar (45 psi) As Specified in Testing to ISO 594

Min Inlet Pressure Vacuum

Effective Orifice Size Data not available

Item Weight 0.0110Kg (11g)

ROHS Compliant Yes

Regulatory Information ISO 594, ISO 80369-7

REACH Compliant Yes

Other Technical Data This product is compliant to both ISO 594 and ISO 80369-7. Suitable for compressed air and vacuum. The configurations are available on standard fittings. Due to many variations in materials used for tubing, please experiment with the various barbs to get the fit require. The tube inside diameter range represents a push-on assembly. Using tube expanding equipment or an external mechanical grip the range may expanded. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
