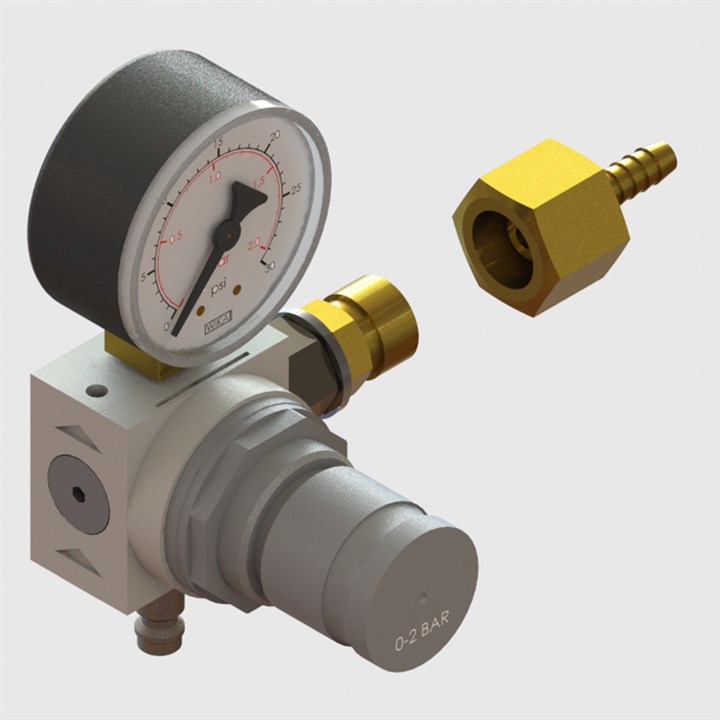

Description 0 to 35 PSI Output Pressure Unit for Pneuchange Trio

Extended Description Outlet pressure module for use with the Pneuchange Trio base unit, comprising of regulator, gauge and hosetail fitting. For use with CO2 and other inert gases

Ambient Temperature -10°C to 50°C (14°F to 122°F)

Mounting Style Direct to NTC PCTRIO, In-Line to Downstream System

Connection 1 Male Plug Quick Coupling to Pneuchange Trio

Connection 2 G3/8" Male Coned R/H c/w Hosetail to suit 6.4 mm (1/4") ID Tube

Recommended Filtration 20 micron

Media Temperature -10°C to 50°C (14°F to 122°F)

Non-Wetted Materials Stainless Steel, Chrome Plated Steel, Brass, Technopolymer

Wetted Materials Brass, Nickel Plated Brass, Steel, Technopolymer, Cu-Alloy, Nitrile Rubber

Cleanroom Manufactured Controlled Environment

Max. Inlet Pressure 6.9 bar (100 psi)

Item Weight 0.3800 (13.40oz)

ROHS Compliant Yes

CE Mark Yes

REACH Compliant Yes

Other Technical Data The regulator is a relieving type and so it is recommended that suitable ventilation is provided when the unit is in use. When setting the outlet pressure, always adjust on increasing pressure. For further information please contact us on +44 (0)2392 266031
