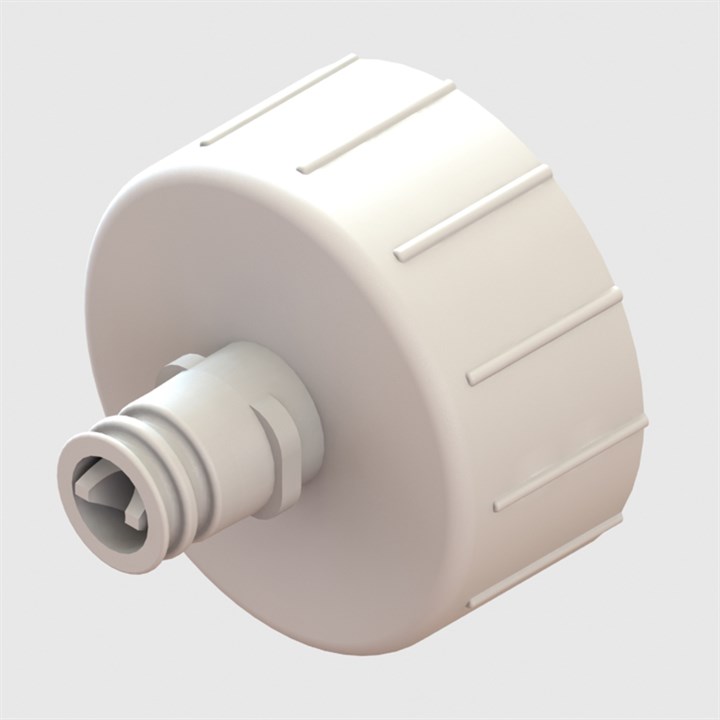

Twist Lock Auxiliary-Bottle Cap Adapter

Twist Lock Auxiliary-Bottle Cap Adapter

E-Q-160170

Twist Lock Auxiliary-Bottle Cap Adapter

Twist Lock Auxiliary-Bottle Cap Adapter
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-Q-160170

Twist Lock Auxiliary-Bottle Cap Adapter

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Twist Lock Auxiliary-Bottle Cap Adapter

Extended Description Twist Lock Auxiliary-Bottle Cap Adapter c/w Male Shut Off Valve

Ambient Temperature -46°C to 121°C (-50°F to 250°F)

Mounting Style In-line

Connection 1 To mating Socket Connector

Connection 2 To mating Rigid Bottles

Recommended Filtration To suit application and media used

Media Temperature -46°C to 121°C (-50°F to 250°F)

Non-Wetted Materials Nylon

Wetted Materials Nylon, Acetal, Buna-N, Stainless Steel 316

Cleanroom Manufactured No

Max. Inlet Pressure 8.62 bar (50 psi)

Operating Pressure -0.69 to 8.62 bar (-10 to 125 psi)

Min Inlet Pressure Vaccum

Item Weight 0.0057 (0.20oz)

ROHS Compliant Yes

Regulatory Information None

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266046

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)
