Flow Control/Bleed Valve with One Way Check Valve, Male Luer

Flow Control/Bleed Valve with One Way Check Valve, Male Luer

E-P-190001

Flow Control/Bleed Valve with One Way Check Valve, Male Luer

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Flow Control/Bleed Valve with One Way Check Valve, Male Luer
$5.48
Price per piece
Sold in multiples of 50
Add To Wishlist
Quantity
Price

1 - 5

$5.48

6 - 10

$5.21

11 - 20

$4.93

21 - 50

$4.66

51 - 100

$4.38

101 - 200

$4.11

201 - 500

$3.84

501

$3.56

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-P-190001

Flow Control/Bleed Valve with One Way Check Valve, Male Luer

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

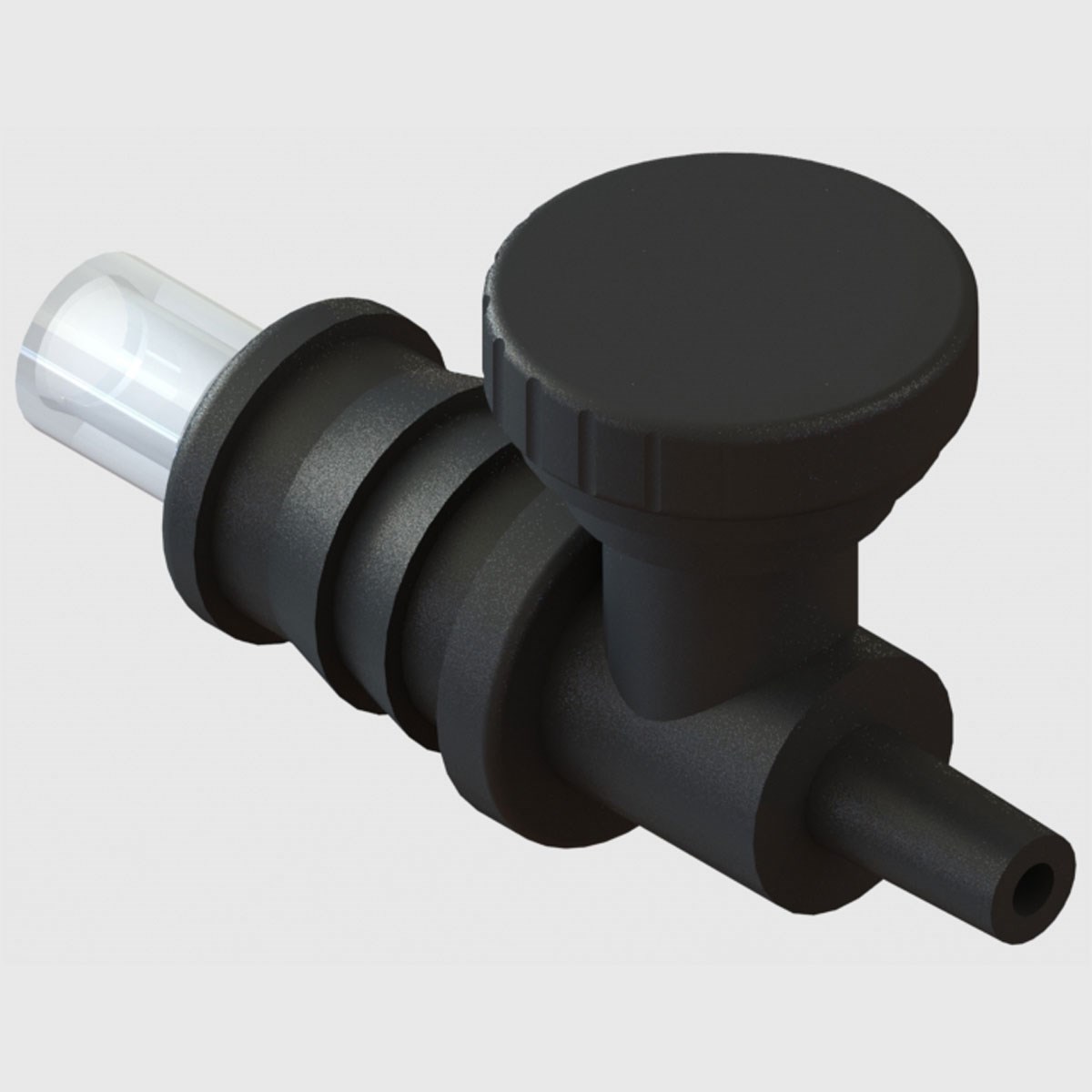

Description Flow Control/Bleed Valve with One Way Check Valve, Male Luer

Extended Description Flow control/bleed valve with check valve for one way flow complete with tapered stem compatible with Female Luer.

Ambient Temperature 0°C – 65°C (32°F – 150°F)

Mounting Style In-line

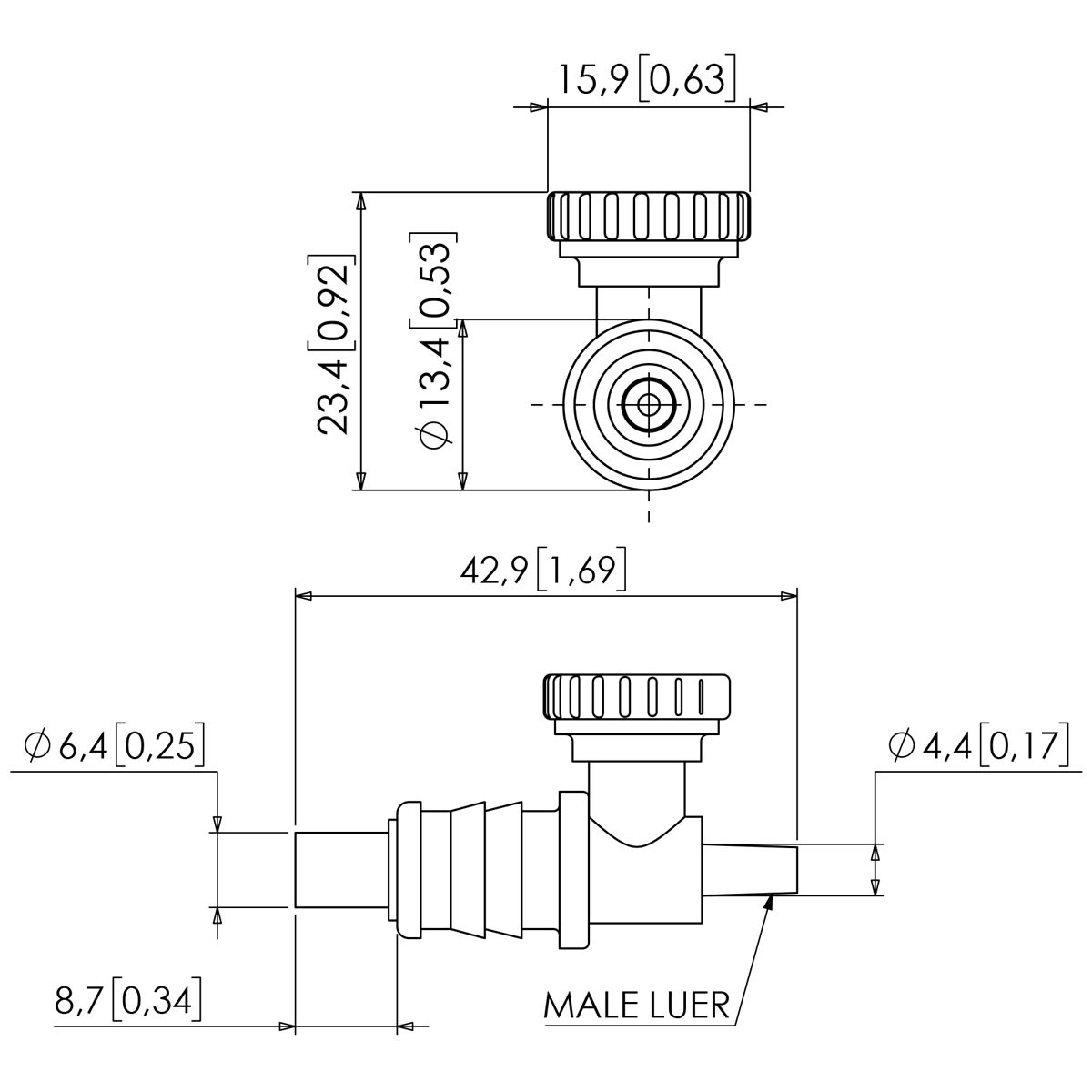

Connection 1 6.4mm (0.250") OD Stem c/w Check Valve

Connection 2 4.4mm (0.172") OD Taper Stem (Female Luer Compatible)

Recommended Filtration Not Applicable

Media Temperature 0°C – 65°C (32°F – 150°F)

Non-Wetted Materials Not Applicable

Wetted Materials Polypropylene, ABS

Cleanroom Manufactured No

Max. Inlet Pressure 1.03 bar (15psi)

Item Weight 0.004Kg (0.144oz)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031.

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)
