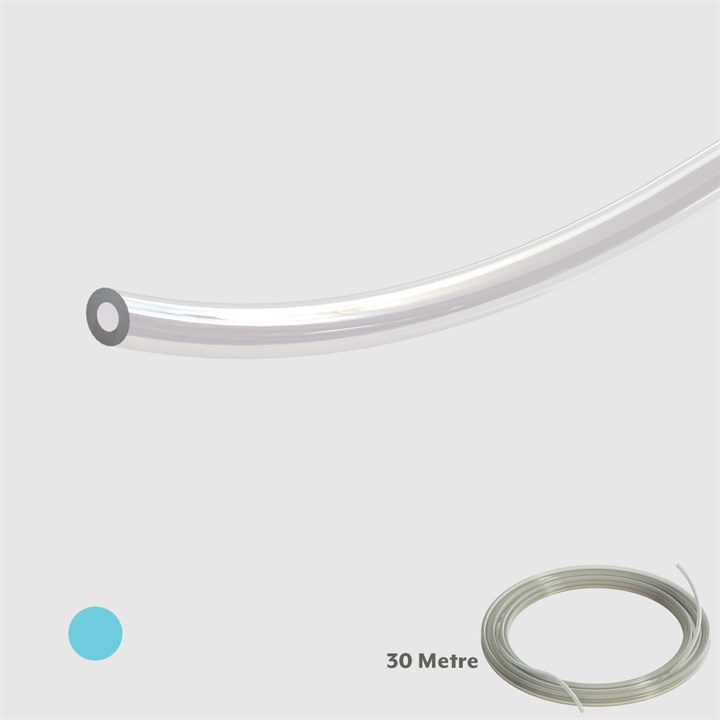

Clear Unreinforced PVC Tubing, 80 Shore A, 1/16" (1.6mm) ID x 1/8" (3.2mm) OD - 30M - Compatible with Blue Dot Fittings

Clear Unreinforced PVC Tubing, 80 Shore A, 1/16" (1.6mm) ID x 1/8" (3.2mm) OD - 30M - Compatible with Blue Dot Fittings

E-T-160095

Clear Unreinforced PVC Tubing, 80 Shore A, 1/16" (1.6mm) ID x 1/8" (3.2mm) OD - 30M - Compatible with Blue Dot Fittings

Clear Unreinforced PVC Tubing, 80 Shore A, 1/16" (1.6mm) ID x 1/8" (3.2mm) OD - 30M
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-T-160095

Clear Unreinforced PVC Tubing, 80 Shore A, 1/16" (1.6mm) ID x 1/8" (3.2mm) OD - 30M - Compatible with Blue Dot Fittings

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Clear Unreinforced PVC Tubing, 80 Shore A, 1/16" (1.6mm) ID x 1/8" (3.2mm) OD - 30M

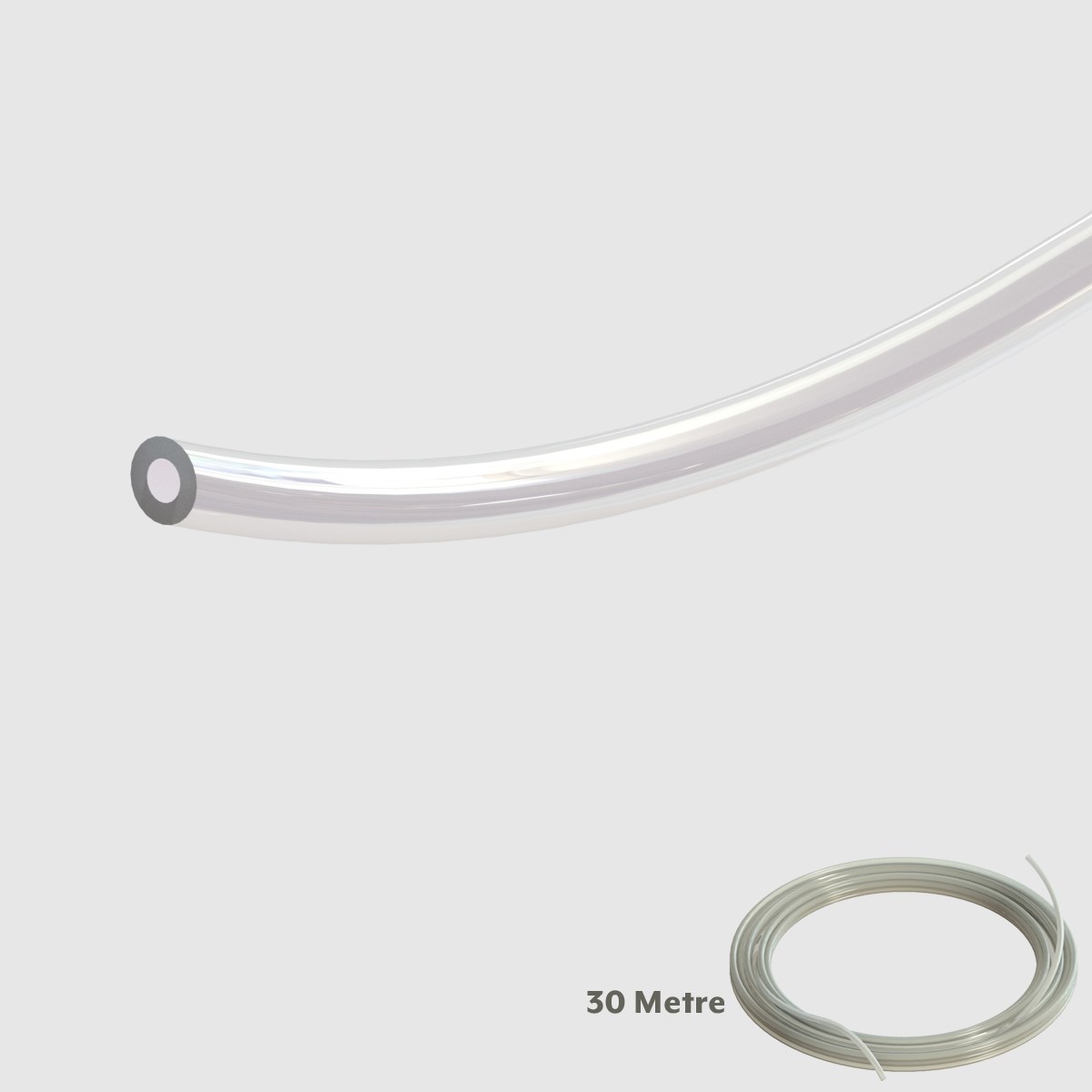

Extended Description 30 Metre coil (100 Feet) of Un-reinforced flexible clear colour Polyvinyl Chloride (PVC) tubing with an internal diameter of 1/16" (1.6mm), an outside diameter of 1/8" (3.2mm) and a wall thickness of 1/32" (0.8mm) suitable for use with barb style fittings

Non-Wetted Materials Non-Phthalate Polyvinyl Chloride

Wetted Materials Non-Phthalate Polyvinyl Chloride

Cleanroom Manufactured Uncontrolled environment

Temperature Range -34°C to 65°C (-30°F to 150°F)

Working Pressure 3:1 Safety Factor. Vacuum to 10.00 bar (145 psi) at 25°C (75°F) / Vacuum to 1.38 bar (20 psi) at 65°C (150°F)

Operating Range at 25⁰C Vacuum to 10.00 bar (145 psi) at 25°C (75°F)

Diameter Tolerance ±0.005" (±0.127mm) ID/OD

Operating Range at 65⁰C Vacuum to 1.38 bar (20 psi) at 65°C (150°F)

Item Weight 0.23Kg (8.16oz)

ROHS Compliant Yes

Regulatory Information FDA 21 CFR for food contact, USP Class VI, California Prop.65 compliant

CE Mark No

REACH Compliant Yes

Durometer 80 Shore A

Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Latex free, Conflict minerals free, Animal derivative free. Compatible with ETO and Gamma sterilisation method

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
