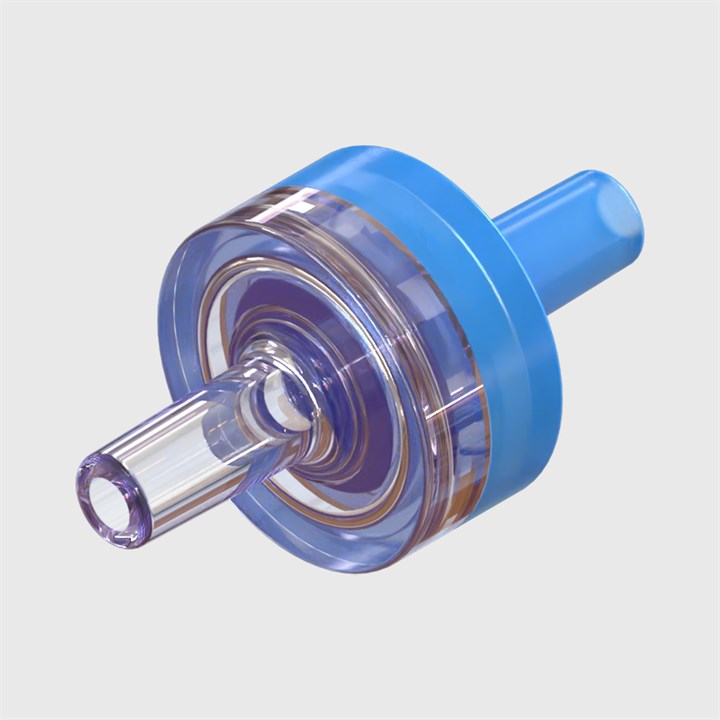

Disc Style Check Valve, Tube Stem Inlet/Outlet, Polycarbonate Body/Silicone Seal Disc

Disc Style Check Valve, Tube Stem Inlet/Outlet, Polycarbonate Body/Silicone Seal Disc

E-C-190042

Disc Style Check Valve, Tube Stem Inlet/Outlet, Polycarbonate Body/Silicone Seal Disc

In Stock
Disc Style Check Valve, Tube Stem Inlet/Outlet, Polycarbonate Body/Silicone Seal Disc
$3.64
Price per piece
Sold in multiples of 50
Add To Wishlist
Quantity
Price

1 - 5

$3.64

6 - 10

$3.46

11 - 20

$3.28

21

$3.10

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-C-190042

Disc Style Check Valve, Tube Stem Inlet/Outlet, Polycarbonate Body/Silicone Seal Disc

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Disc Style Check Valve, Tube Stem Inlet/Outlet, Polycarbonate Body/Silicone Seal Disc

Extended Description A Clear/Blue Polycarbonate bodied disc style check valve with 3.3mm (0.130") OD Stem inlet/outlet for tubing. Designed to be used as a dependable in-line check valve or a directional flow control valve for liquid and air.

Ambient Temperature 0 to 121°C (32 to 250°F)

Mounting Style In-Line

Connection 1 0.13" (3.3mm) OD Stem

Connection 2 0.13" (3.3mm) OD Stem

Media Temperature 0 to 121°C (32 to 250°F)

Non-Wetted Materials Polycarbonate

Wetted Materials Polycarbonate, Silicone

Cleanroom Manufactured No

Max. Inlet Pressure 4.13 bar (60 psi)

Cracking Pressure Not Applicable (Floating Disc without Spring)

Item Weight 0.00054Kg (0.54g)

ROHS Compliant No

Regulatory Information USP Class VI

CE Mark No

REACH Compliant Yes

Other Technical Data DEHP free. Latex free. Animal derivative free. Valve stem and body will mate securely with all standard luer syringes and luer connectors. Compatible with gamma radiation sterilisation and Ethylene Oxide (EtO) sterilisation. Product designed for use in disposable applications. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)
