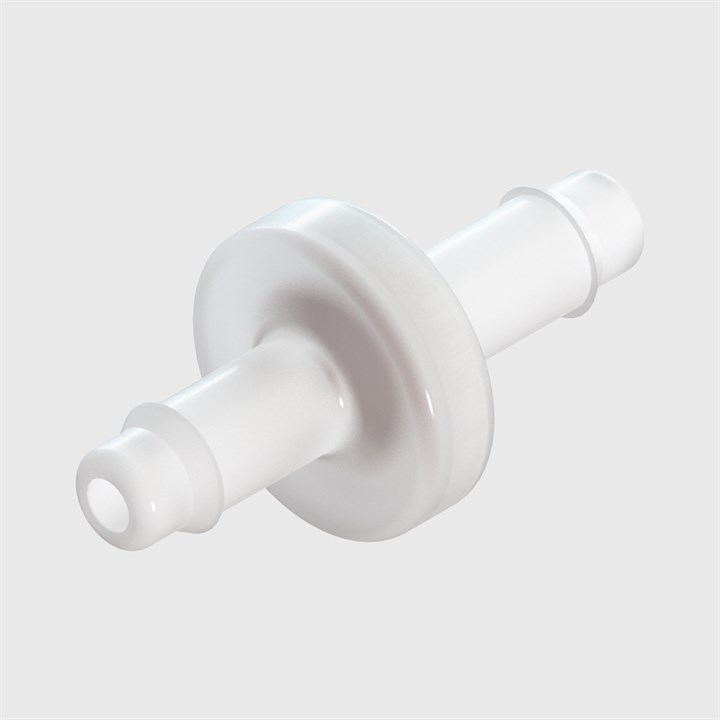

Description Polypropylene Bodied Check Valve, Viton (FKM), 1/4" (6.4mm) ID Tube, Cracking Pressure 0.5 psi

Extended Description An in-line Polypropylene bodied check valve complete with Viton (FKM) diaphragm. Barb ports inlet and outlet to suit 1/4" (6.4mm) ID tube. This valve has a cracking pressure of 0.5 psi and will operate in any orientation. Can be used with vacuum or pressure and is also suitable for some vapour, gas and fluid systems.

Ambient Temperature -29 to 121°C (-20 to 250°F)

Mounting Style In-Line

Connection 1 To suit 1/4" (6.4mm) ID Tube

Connection 2 To suit 1/4" (6.4mm) ID Tube

Recommended Filtration To Suit Application and Media

Media Temperature -29 to 121°C (-20 to 250°F)

Non-Wetted Materials Polypropylene

Wetted Materials Polypropylene, Viton

Cleanroom Manufactured No

Max. Inlet Pressure 1.03 bar (15 psi)

Flow Rate Approx. 7.08 L/Min (15 CFH) Forward Flow at 5 psi

Cracking Pressure 0.5 psi

Item Weight 0.0030Kg (3g)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data A check valve is generally used in a pneumatic circuit which requires free flow in one direction (Normally indicated with an arrow on the check valve) and no flow in the opposite direction, they can also be useful as a bypass valve allowing flow around other circuitry components such as needle valves which would restrict the flow in both directions. For further information please contact us on +44 (0)2392 266031
