Description Kynar® Bodied Check Valve, EPDM Seal, 3.2mm (1/8") ID Tube, Barbed Ports, Cracking Pressure 0.33 psi

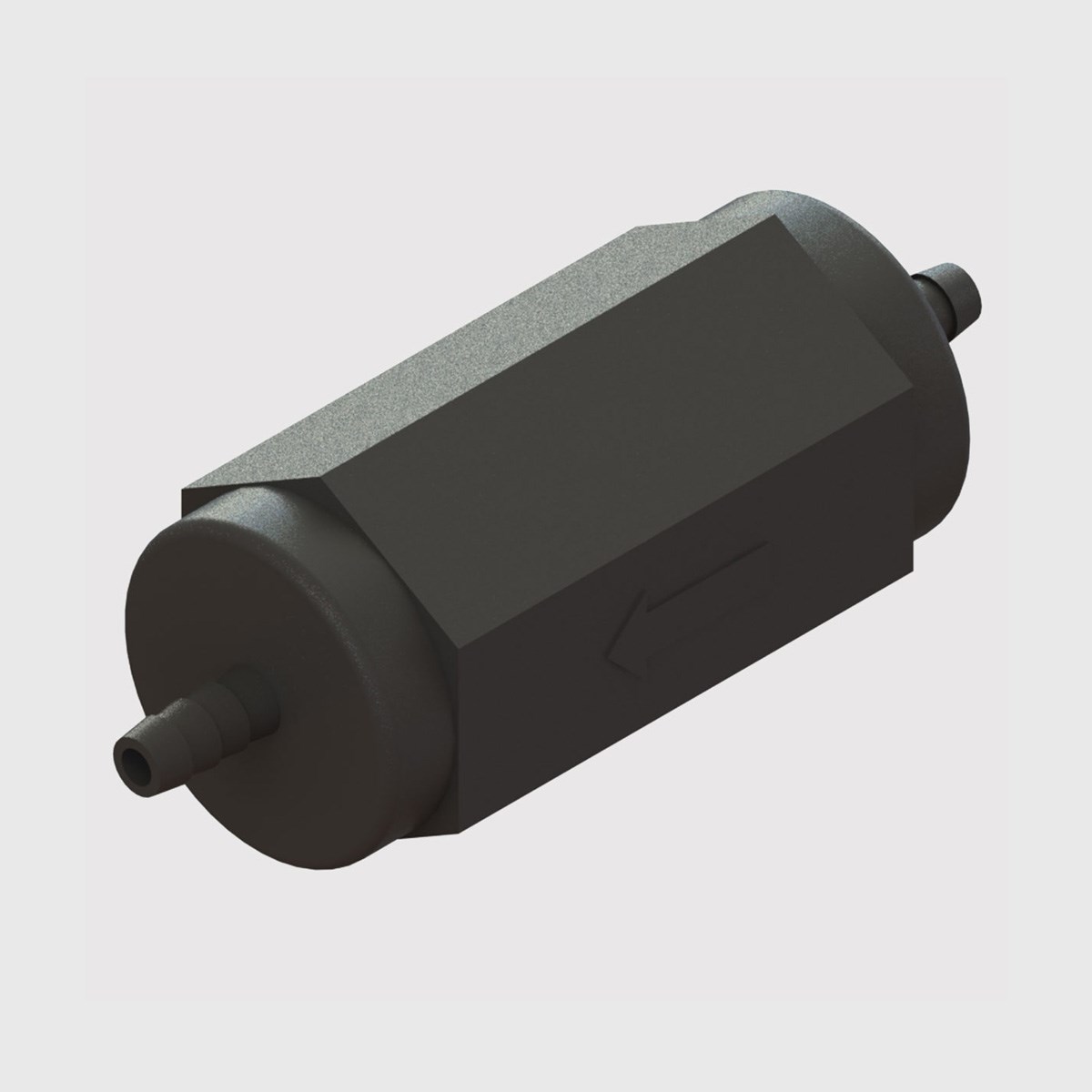

Extended Description A miniature in-line Black PVDF (Kynar®) bodied check valve with an EPDM seal, stainless steel spring, stainless steel ball, barbed ports to suit 1/8" ID tubing and a cracking pressure of 0.33 psi

Ambient Temperature 5°C – 60°C (40°F – 140°F)

Mounting Style In-line

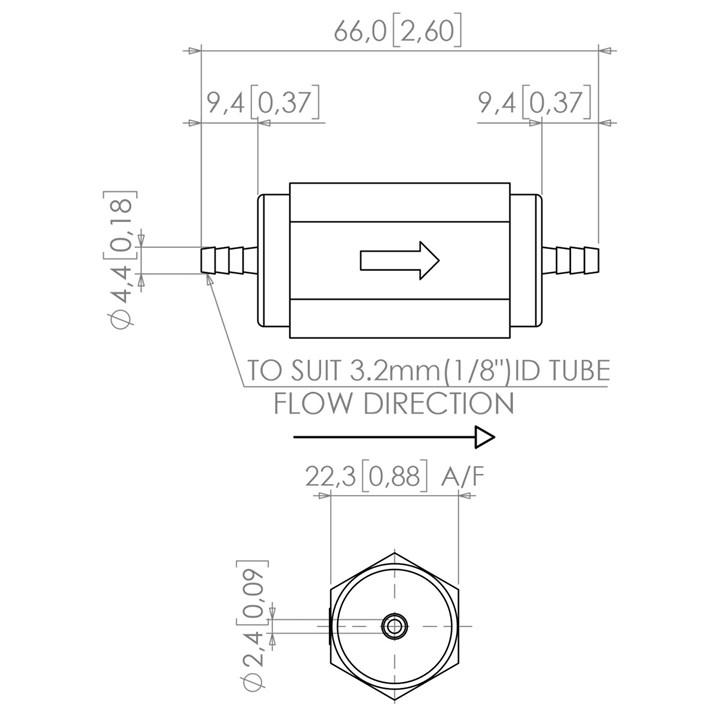

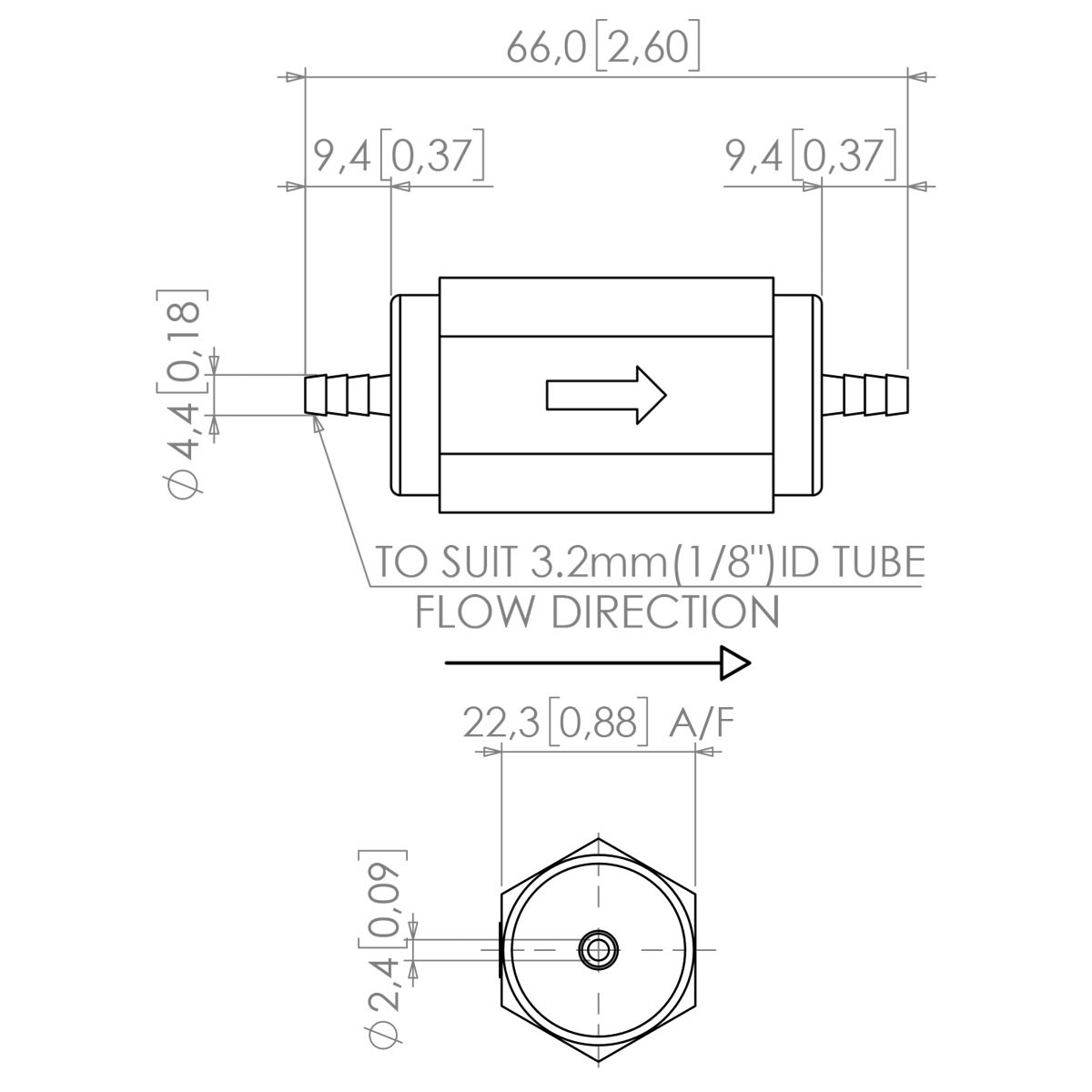

Connection 1 To suit 3.2mm (1/8") ID Tube

Connection 2 To suit 3.2mm (1/8") ID Tube

Recommended Filtration Depending on application

Media Temperature 5°C – 60°C (40°F – 140°F)

Non-Wetted Materials Kynar®

Wetted Materials Kynar®, EPDM, 316 & 302 Stainless Steel

Cleanroom Manufactured No

Max. Inlet Pressure 8.61 bar (125 psi)

Min Inlet Pressure 0.022 bar (0.33 psi)

Item Weight 0.0200Kg (20g)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data A check valve is generally used in a pneumatic circuit which requires free flow in one direction (Normally indicated with an arrow on the check valve) and no flow in the opposite direction, they can also be useful as a bypass valve allowing flow around other circuitry components such as needle valves which would restrict the flow in both directions. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
