Clear Gamma Grade Polycarbonate Pressure Relief Valve, Silicone Seal, Luer Syringe Port to 0.278" (7.1mm) OD Stem, Cracking Pressure 2.7 psi

Clear Gamma Grade Polycarbonate Pressure Relief Valve, Silicone Seal, Luer Syringe Port to 0.278" (7.1mm) OD Stem, Cracking Pressure 2.7 psi

E-N-260015

Clear Gamma Grade Polycarbonate Pressure Relief Valve, Silicone Seal, Luer Syringe Port to 0.278" (7.1mm) OD Stem, Cracking Pressure 2.7 psi

In Stock
Clear Gamma Grade Polycarbonate Pressure Relief Valve, Silicone Seal, Luer Syringe Port to 0.278" (7.1mm) OD Stem, Cracking Pressure 2.7 psi
$9.42
Add To Wishlist
Quantity
Price

1 - 5

$9.42

6 - 10

$8.95

11 - 20

$8.47

21

$8.00

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-N-260015

Clear Gamma Grade Polycarbonate Pressure Relief Valve, Silicone Seal, Luer Syringe Port to 0.278" (7.1mm) OD Stem, Cracking Pressure 2.7 psi

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Clear Gamma Grade Polycarbonate Pressure Relief Valve, Silicone Seal, Luer Syringe Port to 0.278" (7.1mm) OD Stem, Cracking Pressure 2.7 psi

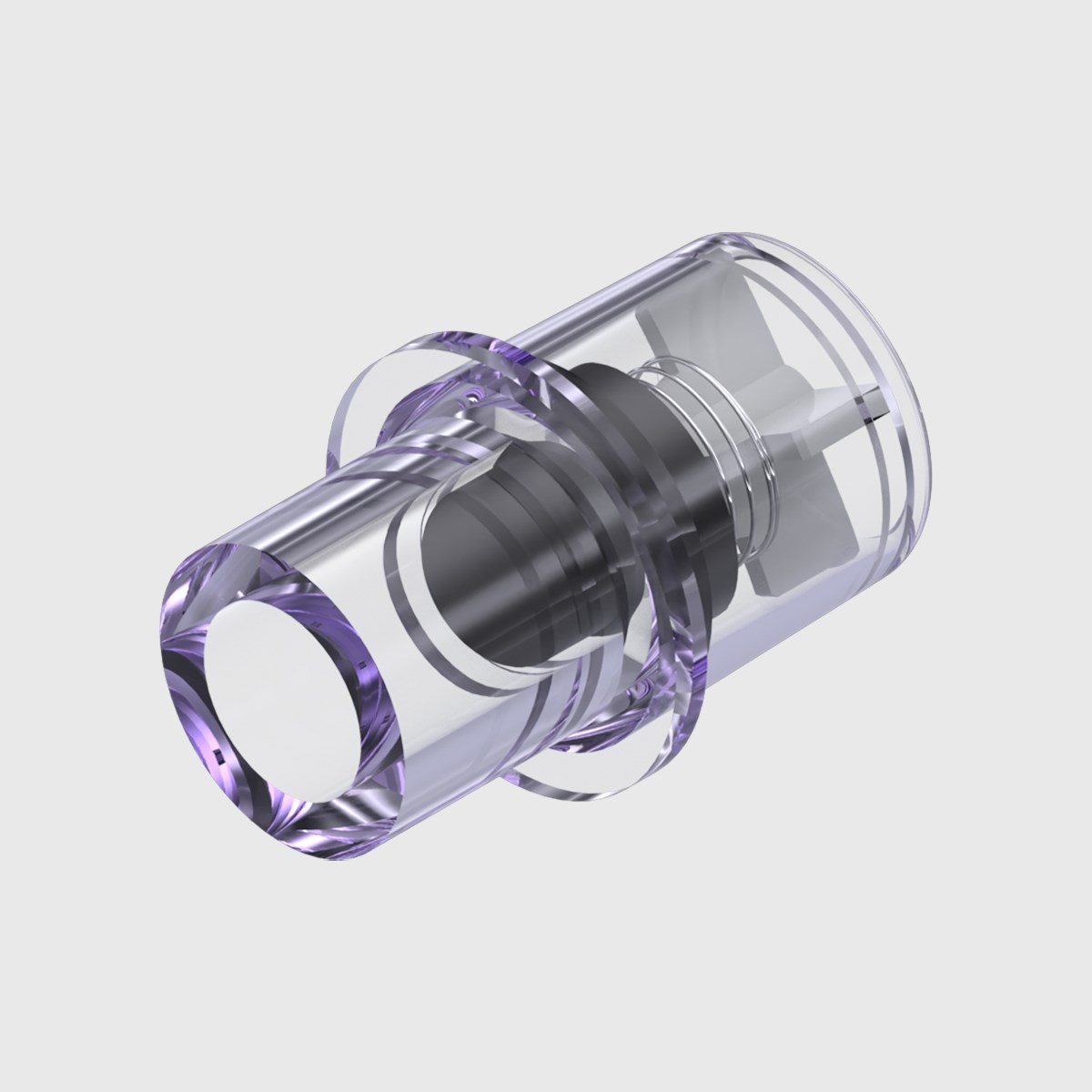

Extended Description A clear gamma grade Polycarbonate bodied pressure relief valve with luer syringe port to 0.278" (7.1mm) OD stem, designed to hold and release amounts of gases or fluids automatically. Generally used for tube end and in-line pressure control, over or under pressure control

Mounting Style In-Line

Connection 1 Luer Syringe Port (Luer Slip Adaptor)

Connection 2 0.278" (7.1mm) OD Stem

Non-Wetted Materials Gamma Grade Polycarbonate

Wetted Materials Gamma Grade PVC, Silicone, Stainless Steel, Polypropylene

Cleanroom Manufactured Meet requirement of ISO Class 8 cleanroom

Cracking Pressure 2.7 psi

Item Weight 0.0007Kg (0.7g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data This product compatible with ISO 594 and ISO 80369-7. All plastic materials are latex free. Animal derivative free. Human derivative free. Valve stem and body will mate securely with all standard luer syringes and luer connectors. Spring pressure tolerance ±10%. Product designed for use in disposable applications. Can't find the product you need? Whether you're looking for a specific component or a custom engineered solution tailored to your application, our experienced team is here to help. Get in touch to discuss your requirements. T: +44 (0)2392 266031 | E: info@westgroup.co.uk

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

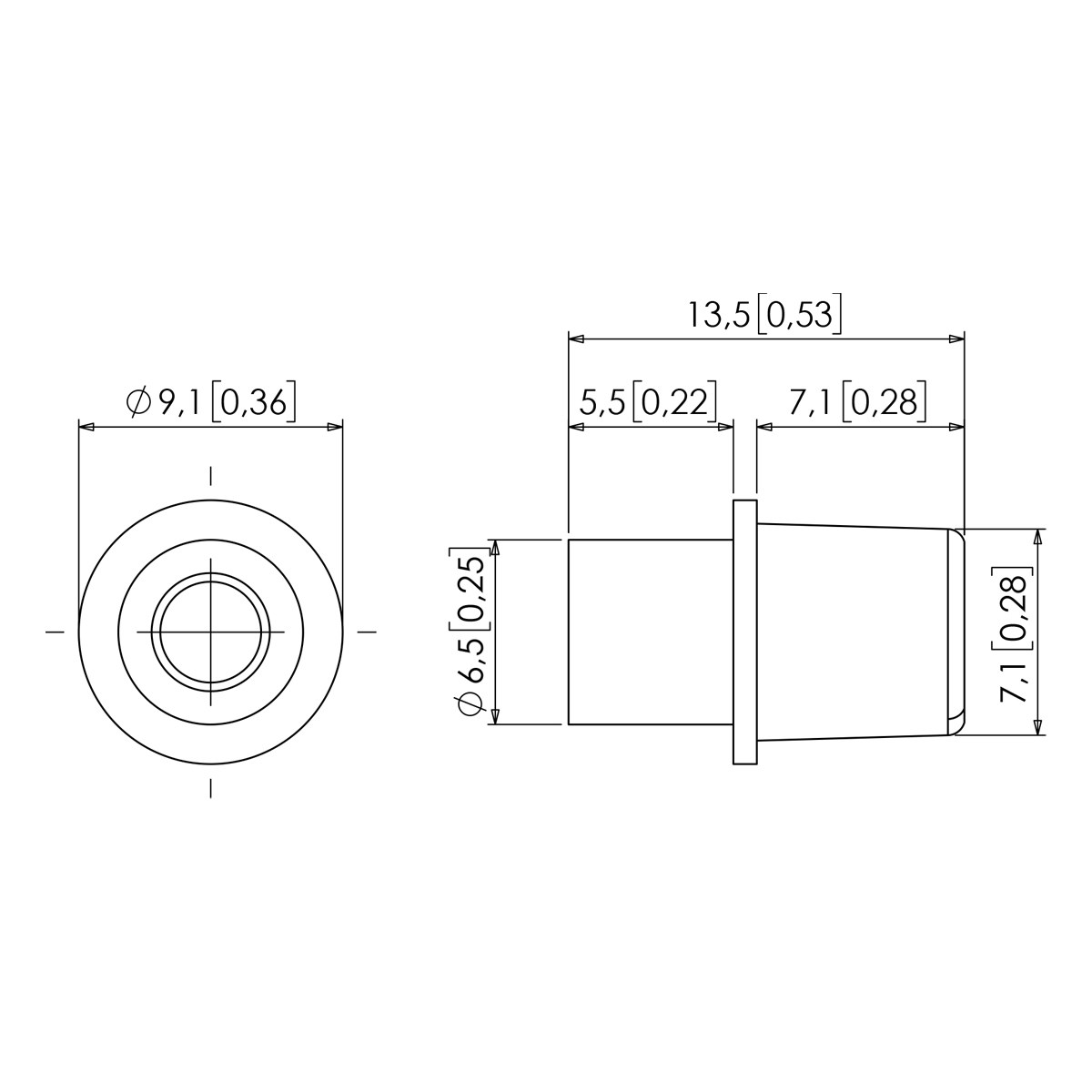

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
