Grey Acetal Tee Pressure Relief Valve, Buna-N (Nitrile) Seal, 1/4" OD Push-In Fitting, Cracking Pressure 1 psi

Grey Acetal Tee Pressure Relief Valve, Buna-N (Nitrile) Seal, 1/4" OD Push-In Fitting, Cracking Pressure 1 psi

E-N-8P8P8P-1-N

Grey Acetal Tee Pressure Relief Valve, Buna-N (Nitrile) Seal, 1/4" OD Push-In Fitting, Cracking Pressure 1 psi

Typical lead time 6 weeks

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Grey Acetal Tee Pressure Relief Valve, Buna-N (Nitrile) Seal, 1/4" OD Push-In Fitting, Cracking Pressure 1 psi
$19.55
Add To Wishlist
Quantity
Price

1 - 250

$19.55

251 - 500

$18.57

501

$17.60

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-N-8P8P8P-1-N

Grey Acetal Tee Pressure Relief Valve, Buna-N (Nitrile) Seal, 1/4" OD Push-In Fitting, Cracking Pressure 1 psi

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

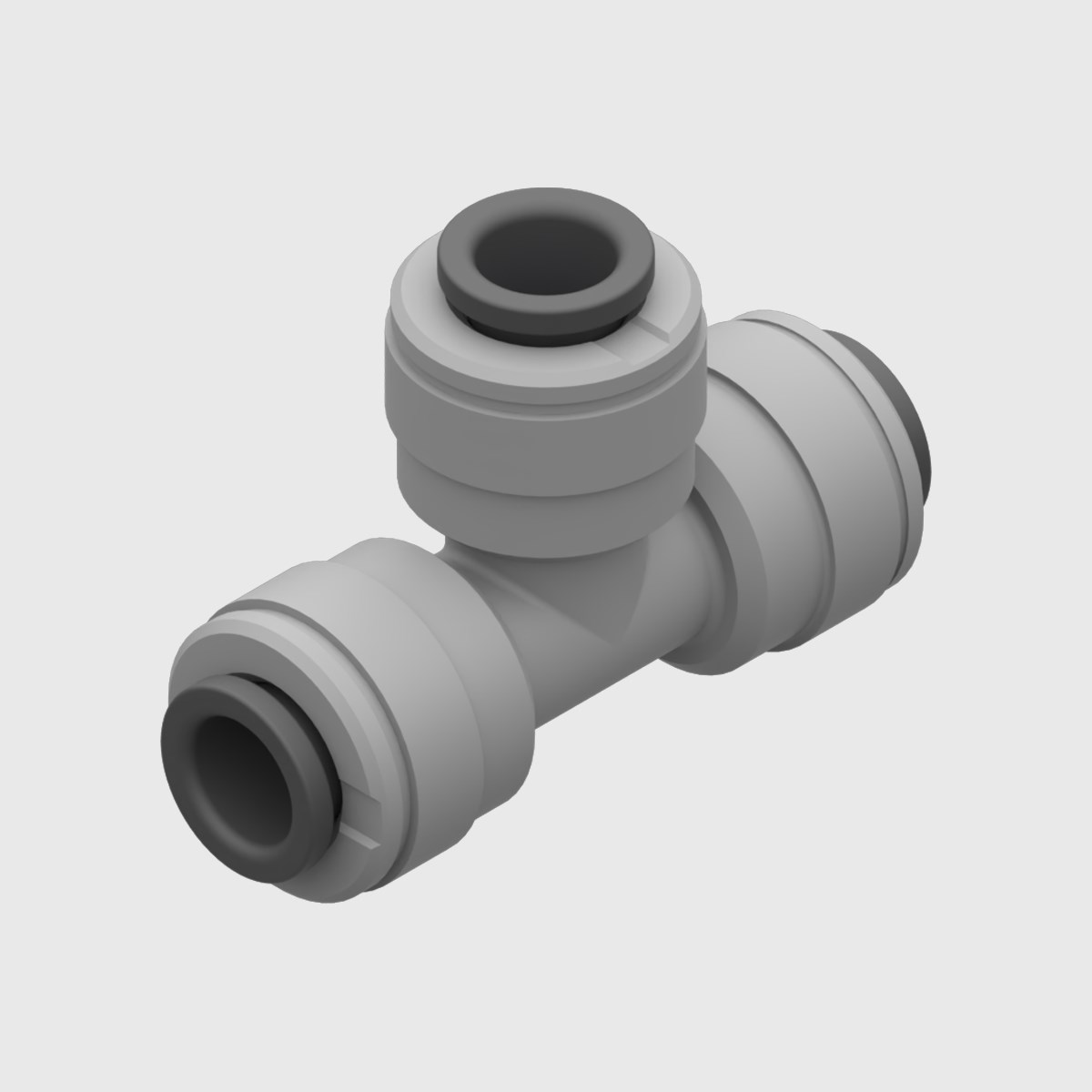

Description Grey Acetal Tee Pressure Relief Valve, Buna-N (Nitrile) Seal, 1/4" OD Push-In Fitting, Cracking Pressure 1 psi

Extended Description This tee push-in pressure relief valve provides compact, reliable pressure stabilisation in low pressure systems. Its quick push-in design enables easy installation. The durable Acetal body with Buna-N (Nitrile) sealing ensures long service life. It is ideal for air pumps and general fluid handling applications

Ambient Temperature -20C° to 65°C (-4°F to 149°F)

Mounting Style In-Line

Connection 1 Push-In fittings to suit 1/4" OD Tube

Connection 3 Push-In fittings to suit 1/4" OD Tube

Connection 2 Exhaust port

Media Temperature -20C° to 65°C (-4°F to 149°F)

Non-Wetted Materials Acetal, Buna-N (Nitrile), Stainless Steel, Nylon

Wetted Materials Acetal, Buna-N (Nitrile), Stainless Steel, Nylon

Max. Inlet Pressure 1.72 bar (25 psi)

Item Weight 0.0067Kg (6.7g)

ROHS Compliant Yes

Regulatory Information Push-In fitting – NSF 51, FDA compliant

REACH Compliant Yes

Other Technical Data Cracking pressure tolerance ±20%. Do not push tubing into exhaust port. Can't find the product you need? Whether you're looking for a specific component or a custom engineered solution tailored to your application, our experienced team is here to help. Get in touch to discuss your requirements. T: +44 (0)2392 266031 | E: info@westgroup.co.uk

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

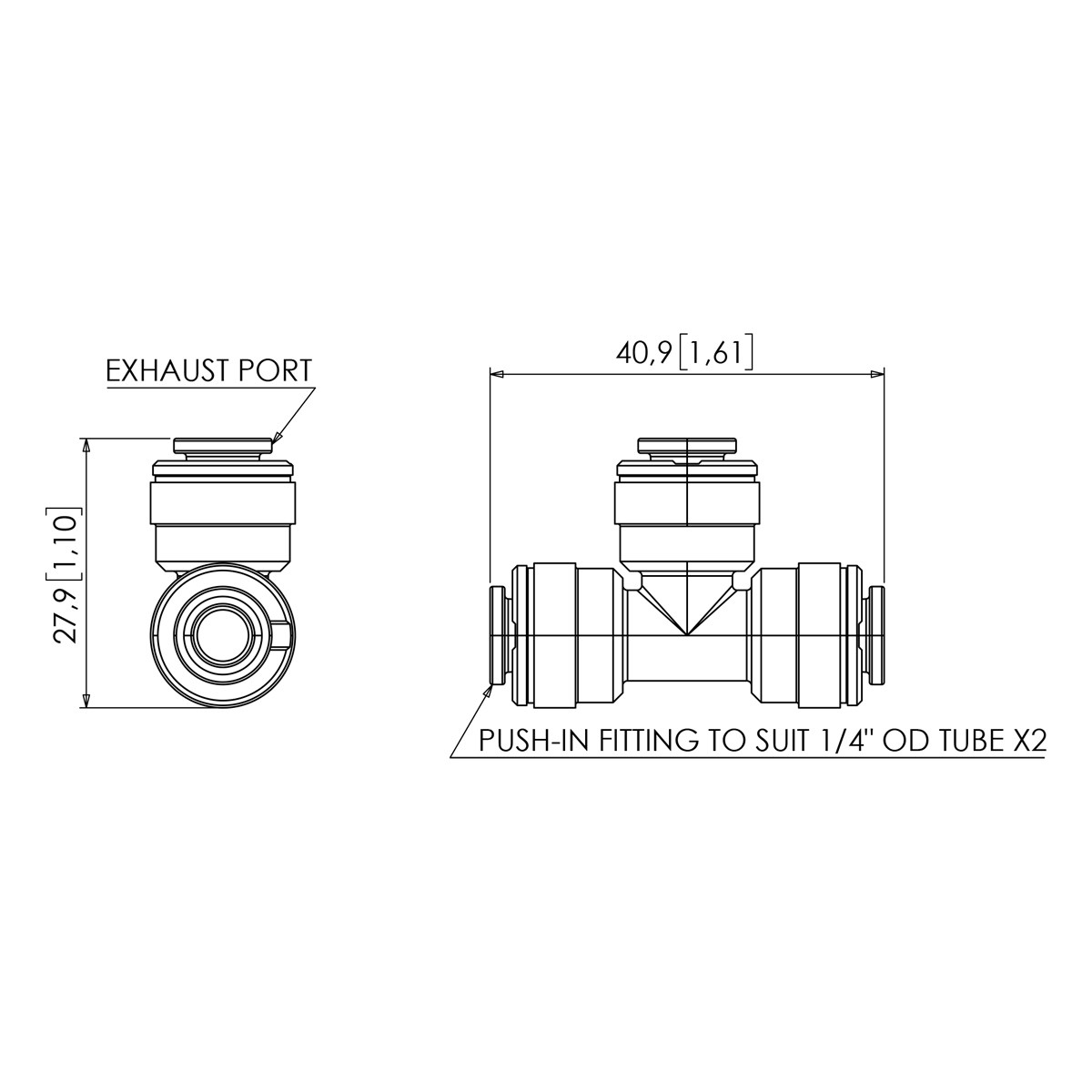

Dimensional Drawing (pdf)

3D model (IGS)
