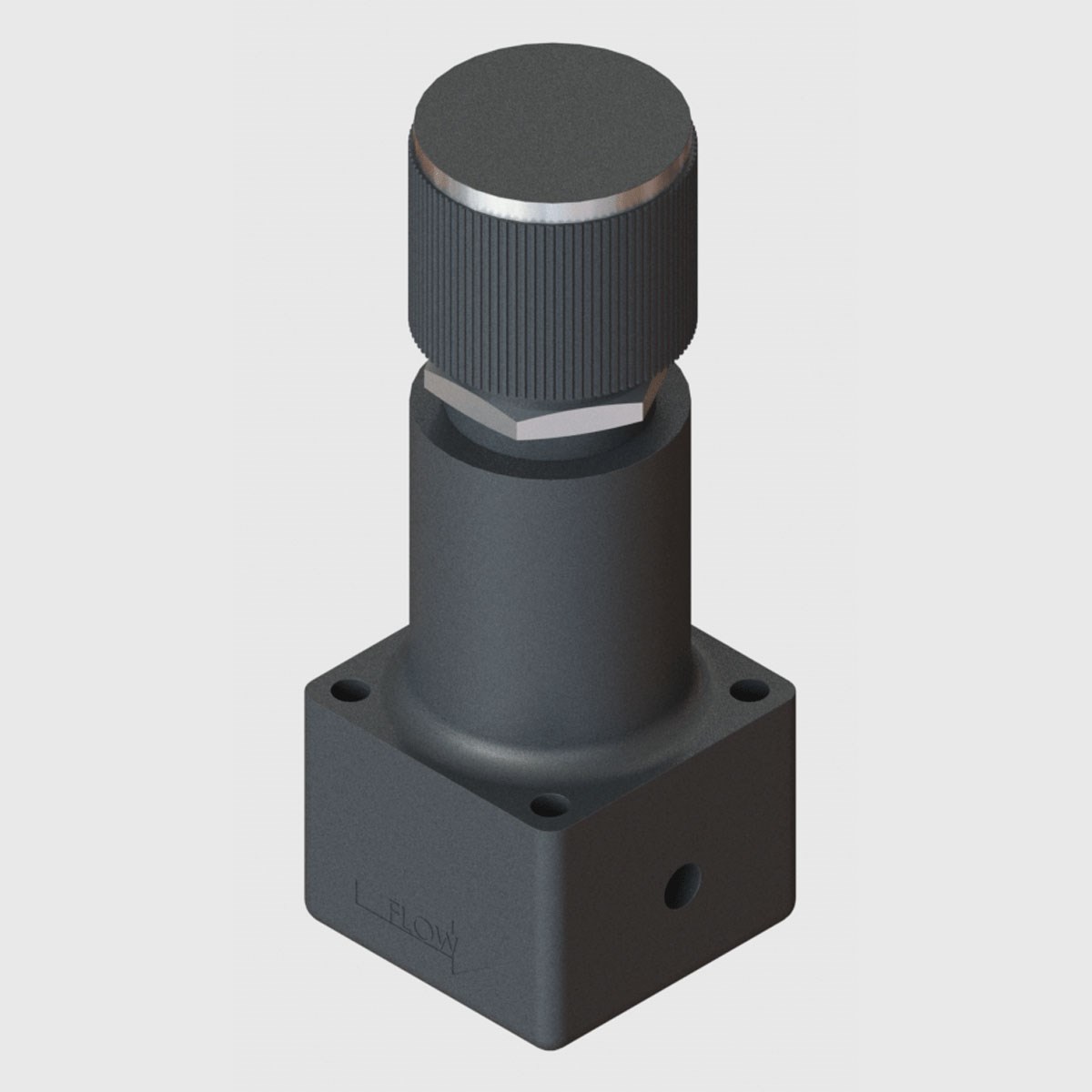

Description 10-32 UNF Precision Regulator, Constant Bleed, Relieving, Polysulfone 0.5-3.5psi

Extended Description Miniature precision pressure regulator for 10-32 UNF ported constant bleed, relieving with a Polysulfone body, 20 turn adjusting knob for precise regulation, Buna-N / Polyurethane diaphragm and adjusting range of 0.5 – 3.5psi.

Ambient Temperature 4°C to 66°C (40°F to 150°F)

Mounting Style In-Line / Direct / Panel Mount

Connection 1 10-32 UNF Female Thread

Connection 2 10-32 UNF Female Thread

Recommended Filtration 5 Micron

Media Temperature 4°C to 66°C (40°F to 150°F)

Non-Wetted Materials Polysulfone, Nickel Plated Brass, Nylon, Aluminium

Wetted Materials Polysulfone, Acetal, Polyurethane, Buna-N, EPDM, Stainless Steel

Max. Inlet Pressure 10.34 bar (150psi)

Item Weight 57g (2oz)

ROHS Compliant Yes

Regulatory Information NSF, FDA (177.2500), 3A sanitary standards for use in contact surfaces for Dairy Equipment

REACH Compliant Yes

Other Technical Data This is a relieving type regulator and also has a constant bleed to maintain an accurate pressure setting; this is designed to be used with compressed air. A downstream relief of at least 20cc/min is recommended. Regulators can be a relieving type or non-relieving. The application dictates which you would use. For example, if you were regulating the pressure of a noxious or expensive gas, you would select a non-relieving regulator to prevent off-gassing of that poisonous gas into the surrounding atmosphere through the regulator, or the waste of an expensive gas through a relieving regulator. With a relieving regulator, if the downstream pressure exceeded the pressure setting on the regulator for any reason, then the higher downstream pressure would be allowed to vent back through the regulator to the atmosphere. Relieving regulators should not be used in specialty gas applications. For further information please contact us on +44 (0)2392 266031.
