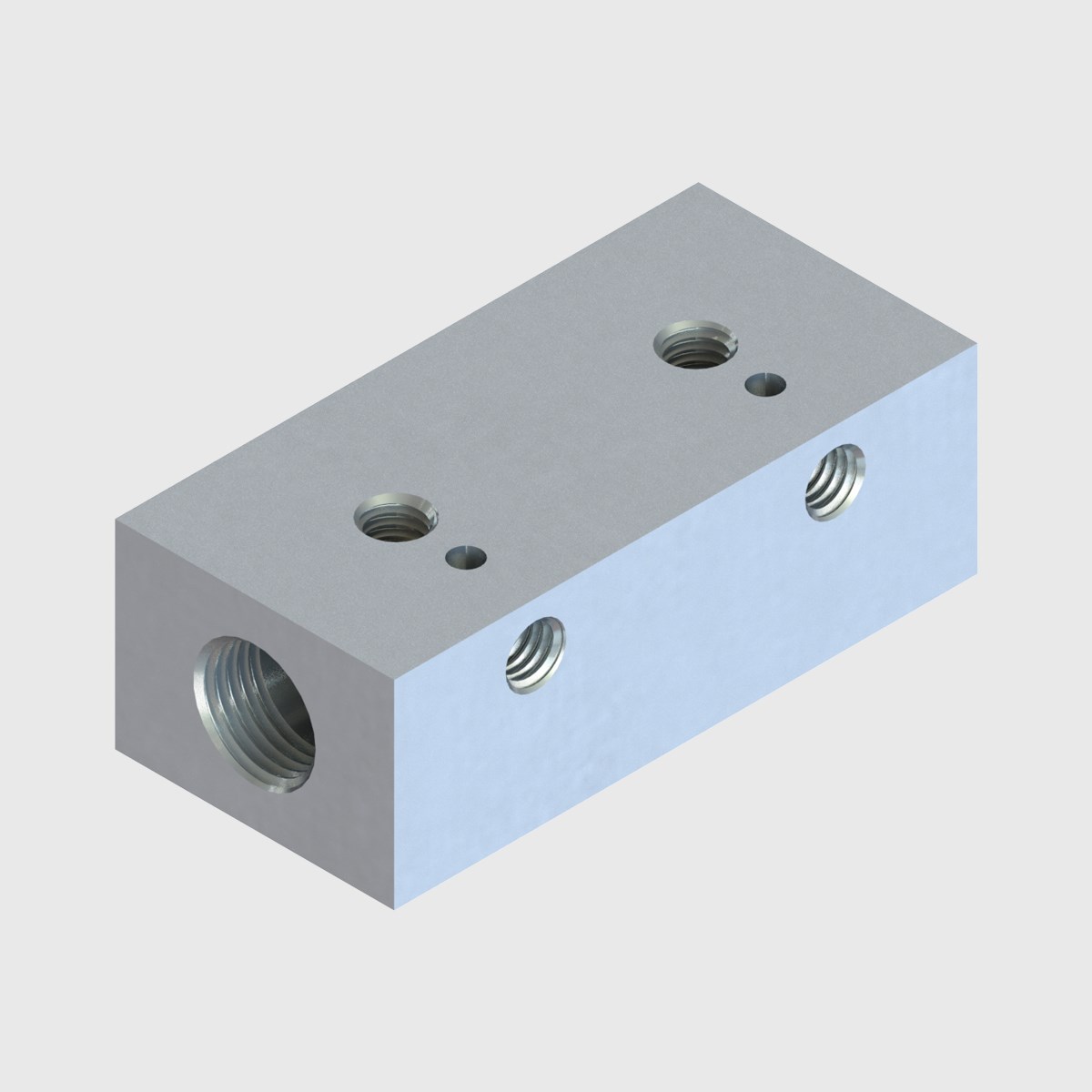

Oxygen Clean, Nickel Plated Brass 2 Station Single Sided Manifold, 1/8" BSPP Female Thread to M5 Female Thread- ESV Series

Oxygen Clean, Nickel Plated Brass 2 Station Single Sided Manifold, 1/8" BSPP Female Thread to M5 Female Thread- ESV Series

E-V-180189

Oxygen Clean, Nickel Plated Brass 2 Station Single Sided Manifold, 1/8" BSPP Female Thread to M5 Female Thread- ESV Series

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Oxygen Clean, Nickel Plated Brass 2 Station Single Sided Manifold, 1/8" BSPP Female Thread to M5 Female Thread- ESV Series
$81.12
Add To Wishlist
Quantity
Price

10 - 24

$81.12

25 - 49

$76.85

50

$72.58

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-V-180189

Oxygen Clean, Nickel Plated Brass 2 Station Single Sided Manifold, 1/8" BSPP Female Thread to M5 Female Thread- ESV Series

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

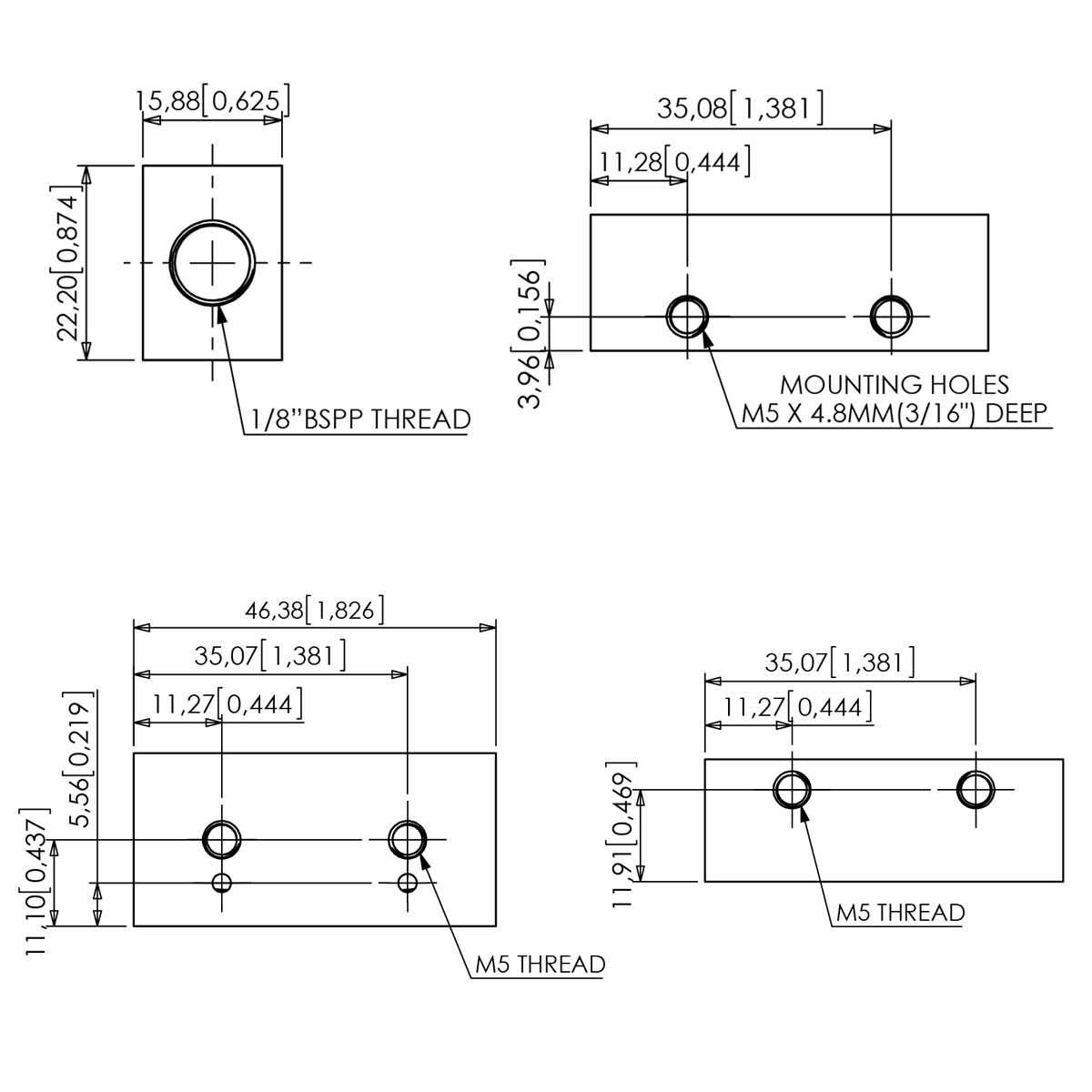

Description Oxygen Clean, Nickel Plated Brass 2 Station Single Sided Manifold, 1/8" BSPP Female Thread to M5 Female Thread- ESV Series

Extended Description Oxygen Clean, Nickel Plated Brass 2 Station Single Sided Manifold, 1/8" BSPP Female Thread to M5 Female Thread- ESV Series

Mounting Style Manifold Mount

Connection 1 1/8" BSPP Female Thread

Connection 2 M5 Female Thread

Recommended Filtration 40 micron

Media Temperature 0 to 82°C (32 to 180°F)

Non-Wetted Materials Nickel Plated Brass

Wetted Materials Nickel Plated Brass

Operating Temperature 0°C – 82°C (32°F – 180°F) (Limited by associated Valves)

Cleanroom Manufactured Uncontrolled Environment

Max. Inlet Pressure 7.24 bar (105 psi) (Limited by associated Valves)

Operating Pressure 28" Hg to 7.24 bar (Vacuum to 105 psi)

Inlet Connection 1/8"BSPP Female

Outlet Connection M5 Female

Auxiliary Connection M5 Female for Valve mounting

Number of Positions 2 Stations

Item Weight 0.1480Kg (148g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Cleaned as per specification. Suitable for both oxygen and analytical series manifold mounted valves. For further information please contact us on +44 (0)2392 266031
