Nickel Plated Brass Single Station Manifold, 1/8" NPT Female Thread - ESV Series & EHV Series

Nickel Plated Brass Single Station Manifold, 1/8" NPT Female Thread - ESV Series & EHV Series

E-V-210008

Nickel Plated Brass Single Station Manifold, 1/8" NPT Female Thread - ESV Series & EHV Series

In Stock
Nickel Plated Brass Single Station Manifold, 1/8" NPT Female Thread - ESV Series & EHV Series
$50.48
Add To Wishlist
Quantity
Price

10 - 24

$50.48

25 - 49

$47.82

50

$45.16

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-V-210008

Nickel Plated Brass Single Station Manifold, 1/8" NPT Female Thread - ESV Series & EHV Series

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Nickel Plated Brass Single Station Manifold, 1/8" NPT Female Thread - ESV Series & EHV Series

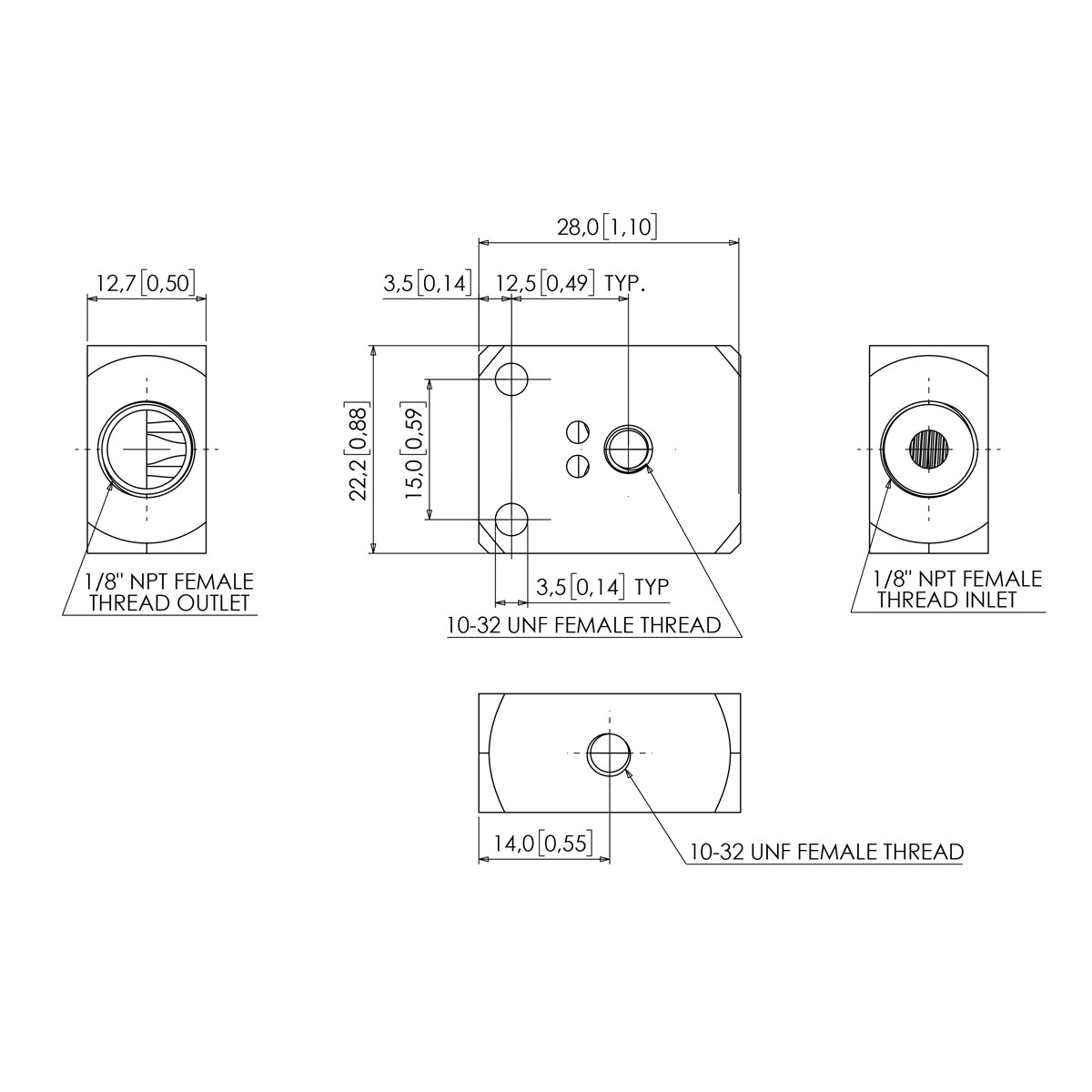

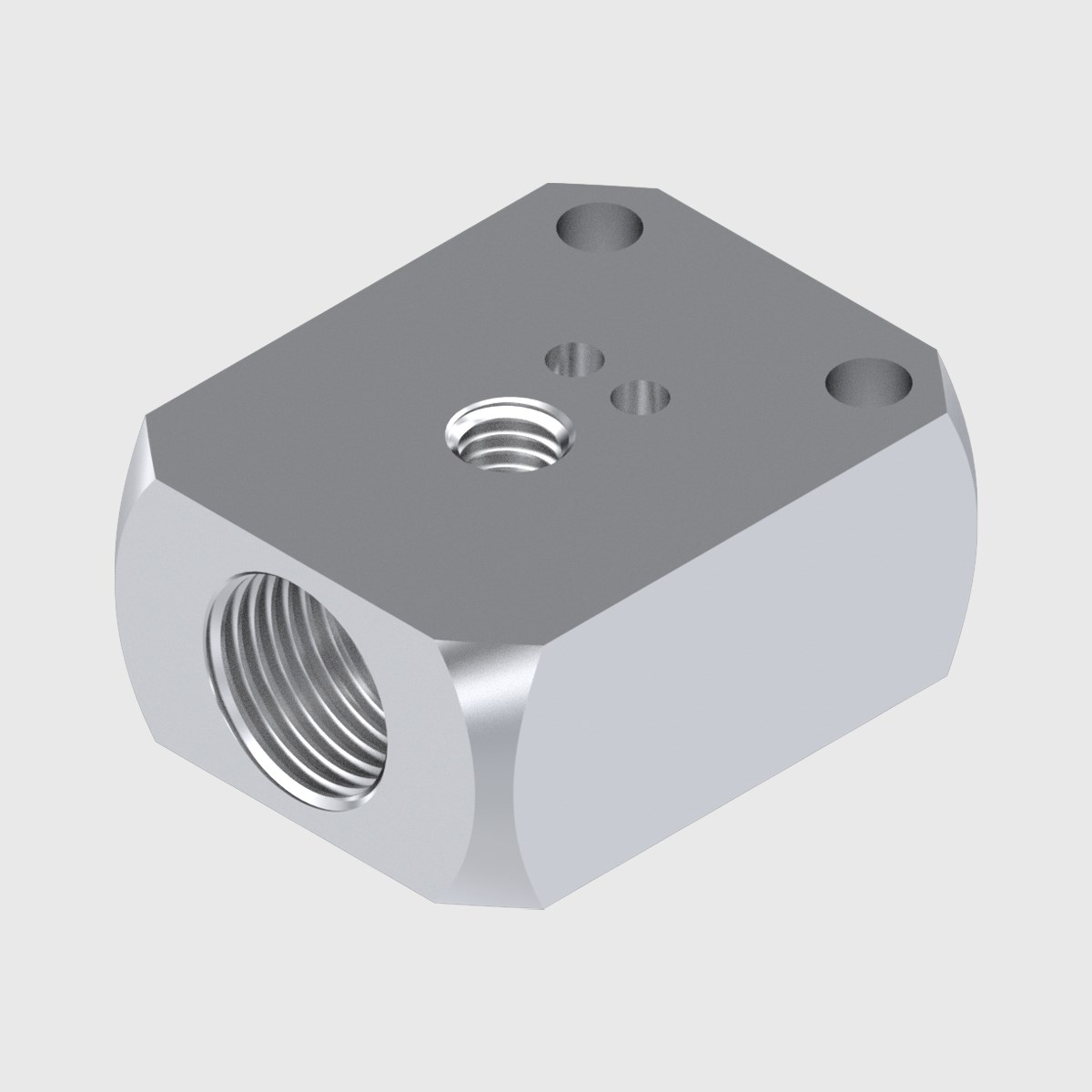

Extended Description Nickel Plated Brass single station manifold with 1/8" NPT female thread inlet and outlet, designed for use with our ESV series and EHV series valves.

Mounting Style Manifold Mount

Connection 1 1/8" NPT Female Thread

Connection 2 1/8" NPT Female Thread

Recommended Filtration 40 micron

Media Temperature 0 to 82°C (32 to 180°F)

Non-Wetted Materials Nickel Plated Brass

Wetted Materials Nickel Plated Brass

Item Weight 0.0300Kg (30g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)
