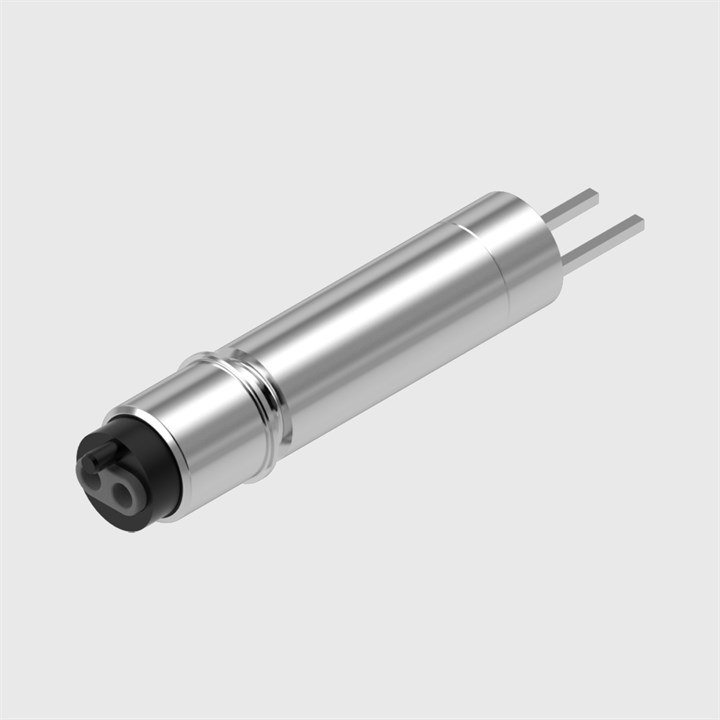

Stainless Steel 5mm 2 Way Media Isolation Cartridge Valve, Normally Closed, FFKM Seal, 0.2mm Orifice Effective Size, Pin Terminals, 12VDC

Stainless Steel 5mm 2 Way Media Isolation Cartridge Valve, Normally Closed, FFKM Seal, 0.2mm Orifice Effective Size, Pin Terminals, 12VDC

E-V-250040

Stainless Steel 5mm 2 Way Media Isolation Cartridge Valve, Normally Closed, FFKM Seal, 0.2mm Orifice Effective Size, Pin Terminals, 12VDC

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Stainless Steel 5mm 2 Way Media Isolation Cartridge Valve, Normally Closed, FFKM Seal, 0.2mm Orifice Effective Size, Pin Terminals, 12VDC
Contact us for pricing
Add To Wishlist
X

Bulk price quote request

Product Details

E-V-250040

Stainless Steel 5mm 2 Way Media Isolation Cartridge Valve, Normally Closed, FFKM Seal, 0.2mm Orifice Effective Size, Pin Terminals, 12VDC

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Stainless Steel 5mm 2 Way Media Isolation Cartridge Valve, Normally Closed, FFKM Seal, 0.2mm Orifice Effective Size, Pin Terminals, 12VDC

Extended Description Stainless Steel 5mm 2 Way Media Isolation Cartridge Valve, Normally Closed, FFKM Seal, 0.2mm Orifice Effective Size, Pin Terminals, 12VDC

Mounting Style Manifold Mount

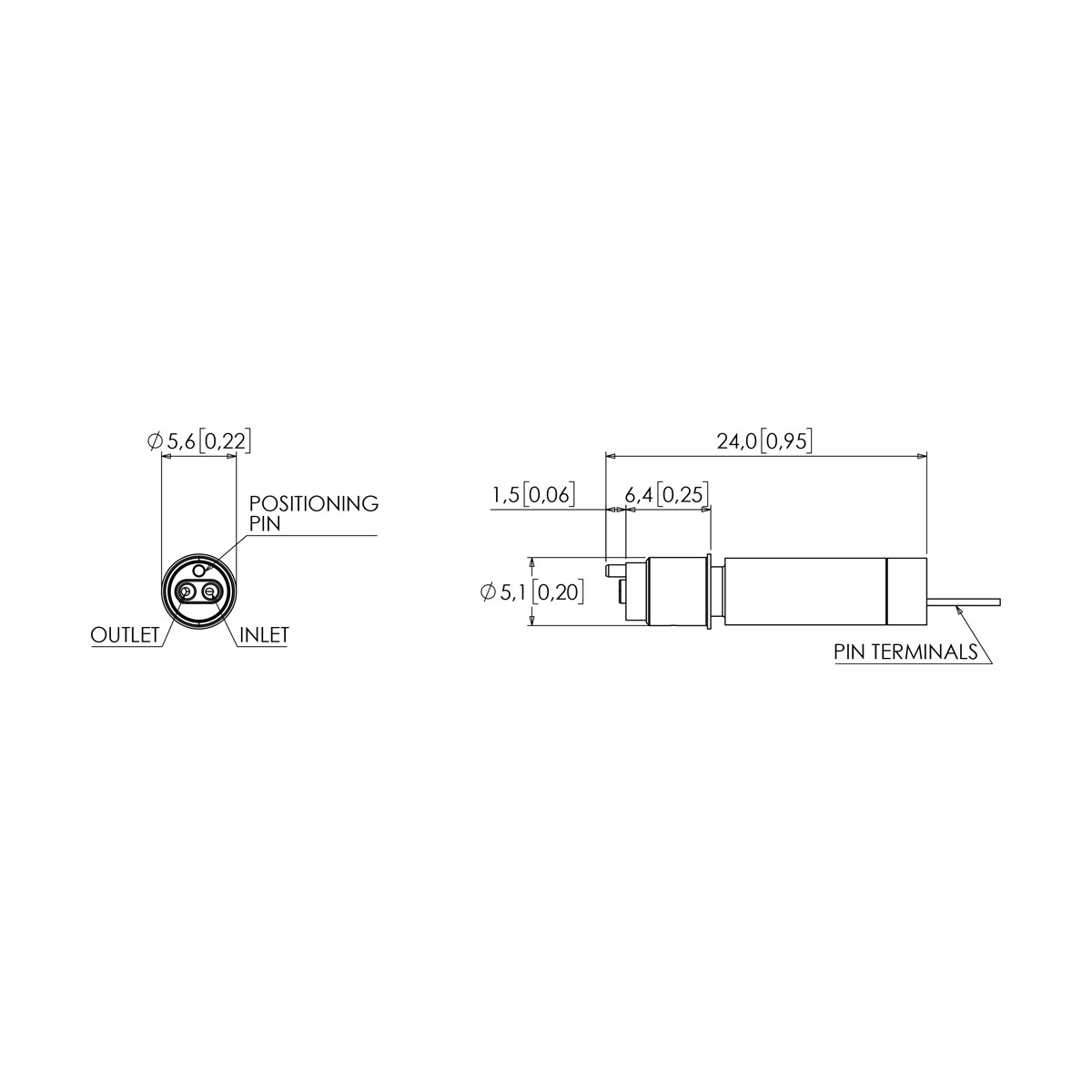

Connection 1 (See technical drawing)

Connection 2 (See technical drawing)

Recommended Filtration ≤ 10 micron

Media Temperature 5 to 50°C (41 to 122°F)

Non-Wetted Materials Stainless Steel

Wetted Materials PEEK, Sapphire, FFKM

Max. Inlet Pressure 0.1 to 0.3 bar

Flow Rate 0.7 L/Min with air at maximum pressure

Operating Pressure 0.2 bar

Item Weight 0.0024Kg (2.4g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data The protection rate of the valve is IP60. Compatible with air, oxygen, inert gases and others upon request (including liquids). For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
