Medical Grade Acrylic Cap for Male Shielded Connector

Medical Grade Acrylic Cap for Male Shielded Connector

E-Q-250017

Medical Grade Acrylic Cap for Male Shielded Connector

Medical Grade Acrylic Cap for Male Shielded Connector
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-Q-250017

Medical Grade Acrylic Cap for Male Shielded Connector

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

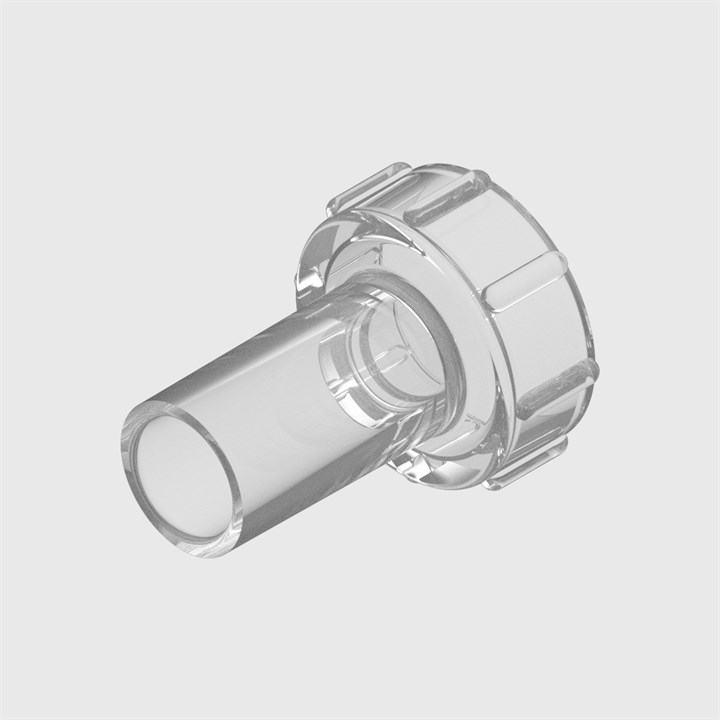

Description Medical Grade Acrylic Cap for Male Shielded Connector

Extended Description Designed to complement our male shielded connector. The cap ensures a leak-proof seal, protecting connections from contamination and maintaining system integrity. Designed for user convenience, it offers a large gripping area for easy engagement and disengagement. This fitting is ideal for use in medical, laboratory, pharmaceutical, and biotechnological applications

Mounting Style In-Line

Connection 1 To mating Male Shielded Connectors

Connection 2 None - Closed End

Recommended Filtration To suit application and media used

Non-Wetted Materials Medical Grade Acrylic

Wetted Materials Medical Grade Acrylic

Cleanroom Manufactured Class 8 (100,000) cleanroom

Item Weight 0.0002Kg (2g)

ROHS Compliant Yes

Regulatory Information USP Class VI

REACH Compliant Yes

Other Technical Data BPA free. Compatible with ethylene oxide (EtO) and gamma radiation sterilisation method. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

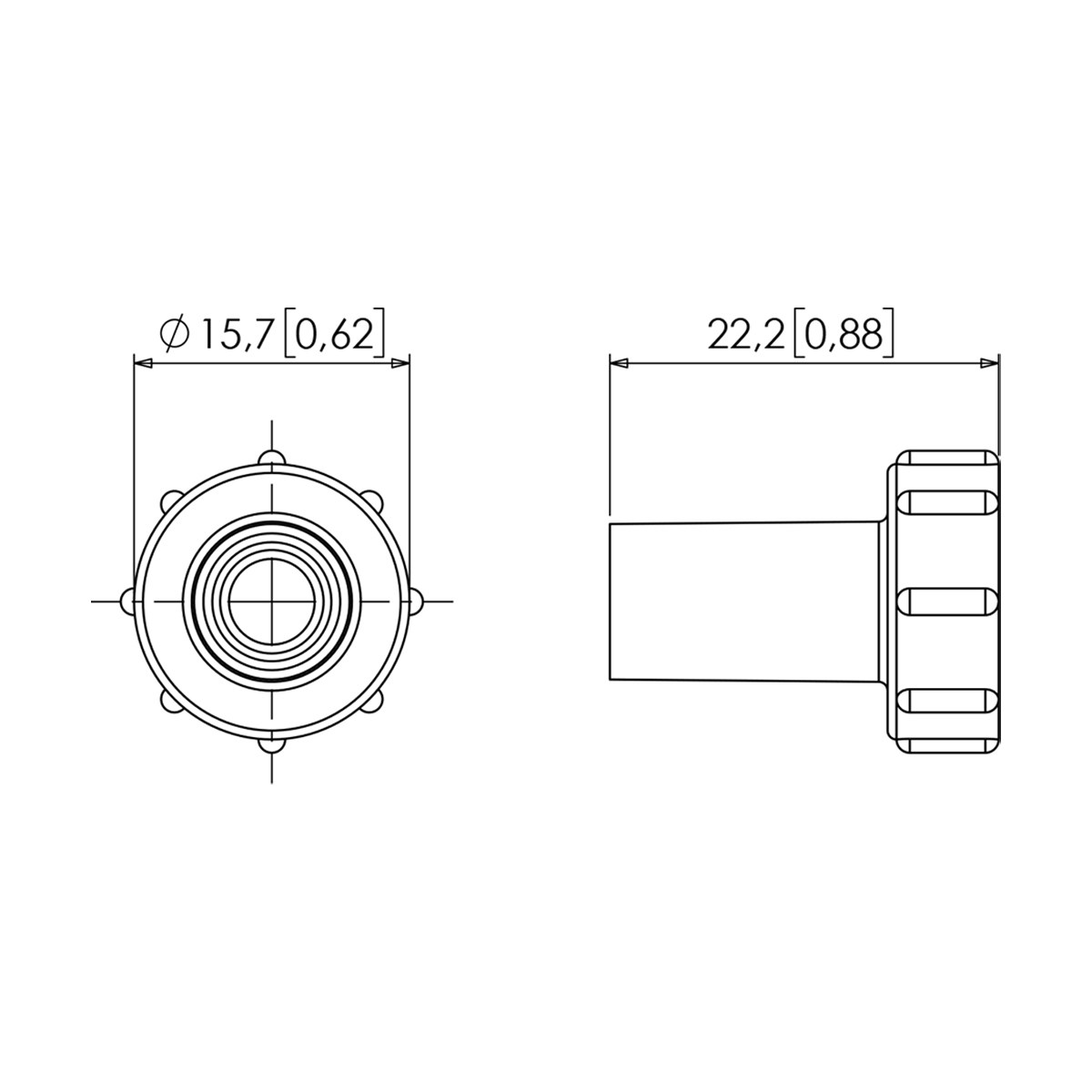

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
