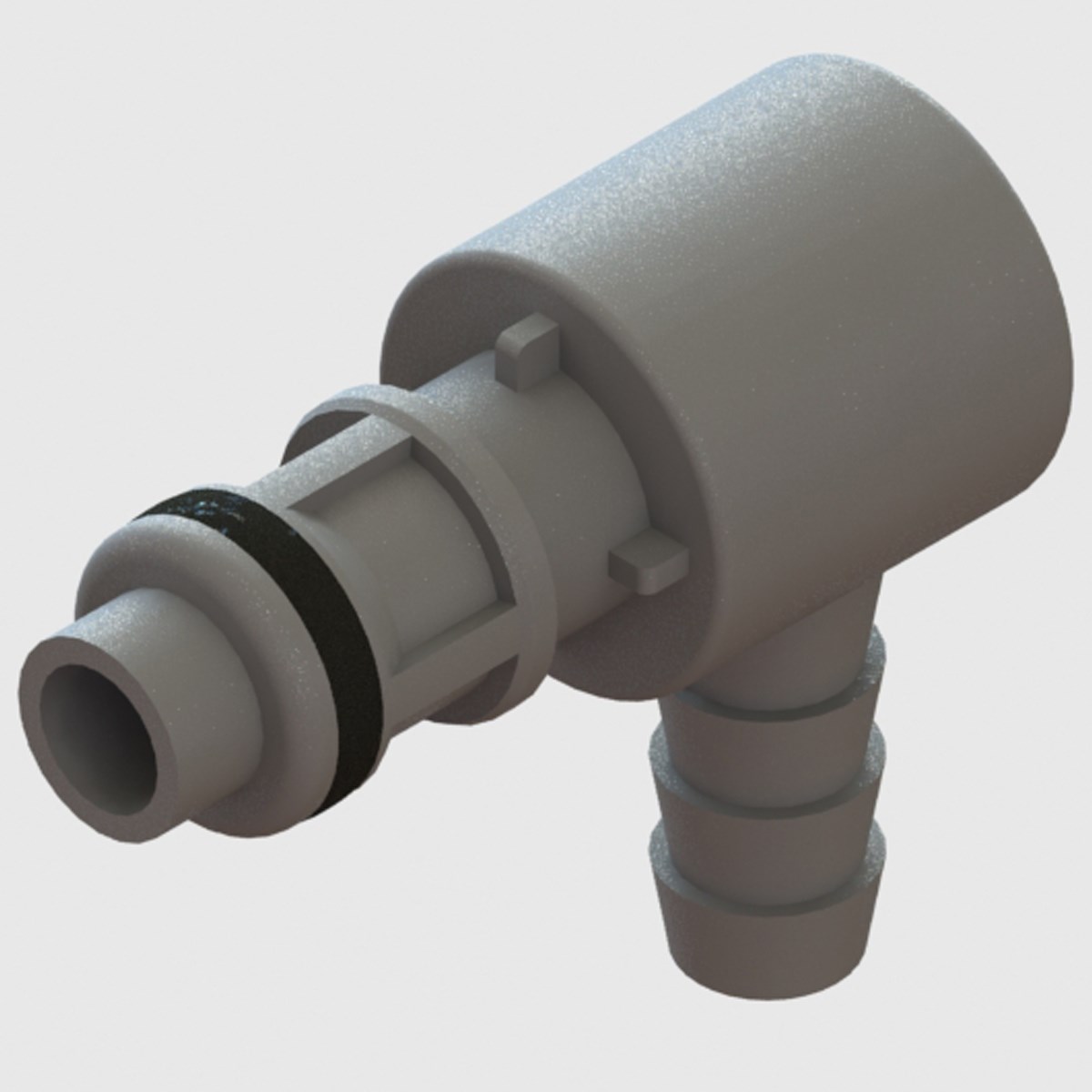

Polypropylene Long Body Elbow Plug Coupling, EPDM Seal, 6.4mm (1/4") ID Tube, Valved, 1/4" Flow - Q5 Series

Polypropylene Long Body Elbow Plug Coupling, EPDM Seal, 6.4mm (1/4") ID Tube, Valved, 1/4" Flow - Q5 Series

E-Q-160577

Polypropylene Long Body Elbow Plug Coupling, EPDM Seal, 6.4mm (1/4") ID Tube, Valved, 1/4" Flow - Q5 Series

Polypropylene Long Body Elbow Plug Coupling, EPDM Seal, 6.4mm (1/4") ID Tube, Valved, 1/4" Flow - Q5 Series
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-Q-160577

Polypropylene Long Body Elbow Plug Coupling, EPDM Seal, 6.4mm (1/4") ID Tube, Valved, 1/4" Flow - Q5 Series

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Polypropylene Long Body Elbow Plug Coupling, EPDM Seal, 6.4mm (1/4") ID Tube, Valved, 1/4" Flow - Q5 Series

Extended Description 1/4" Flow size Plug coupling in medical grade gamma-sterilisable Polypropylene, for connection to audible click thumb-latch mating Socket connector

Ambient Temperature 0°C to 71°C (32°F to 160°F)

Mounting Style In-line

Connection 1 To mating Q5 Socket Connector

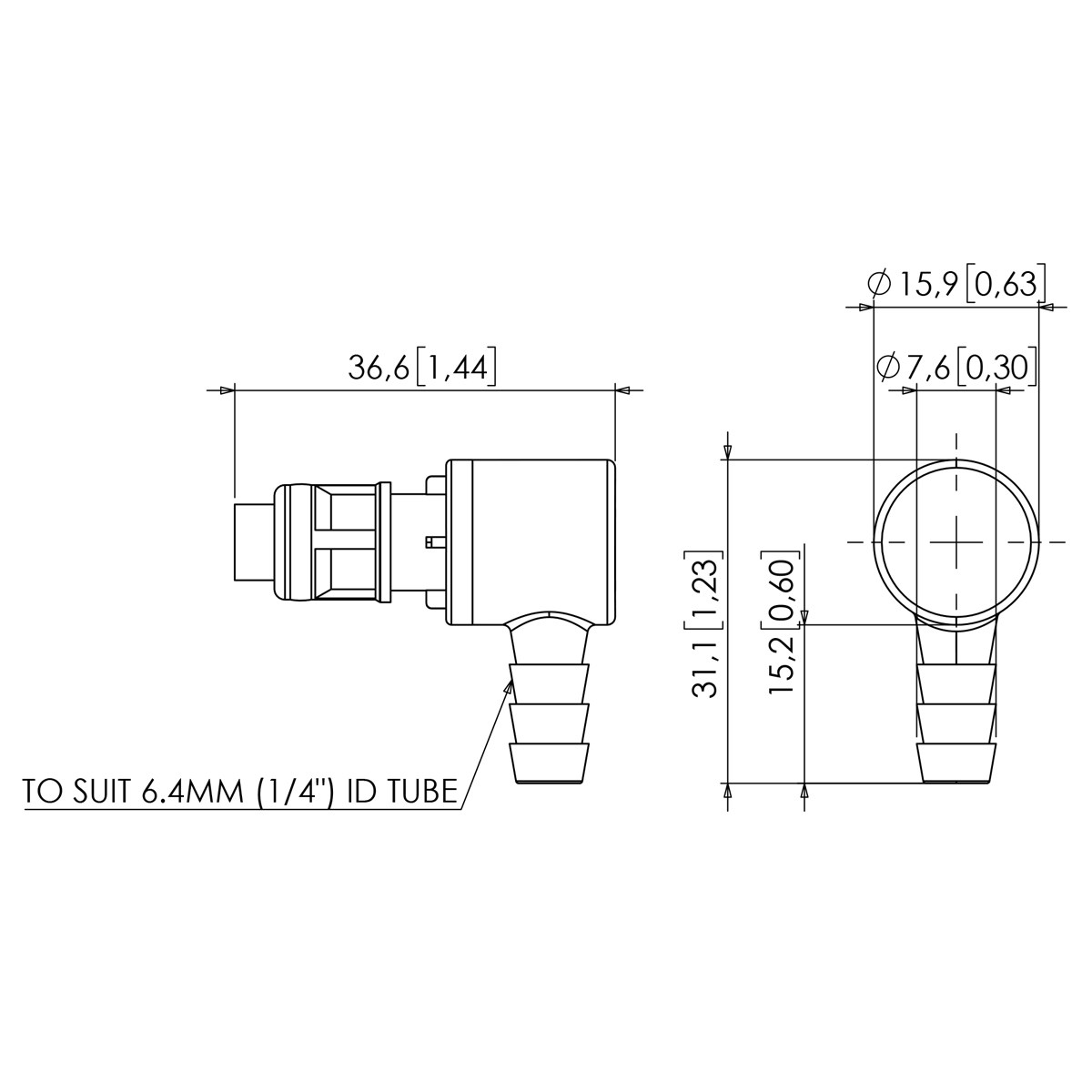

Connection 2 To suit 6.4 mm (1/4") ID Tube

Recommended Filtration To suit application and media used

Media Temperature 0°C to 71°C (32°F to 160°F)

Non-Wetted Materials P5M6K-080 medical grade gamma-stable Polypropylene

Wetted Materials P5M6K-080 medical grade gamma-sterilisable Polypropylene, Peroxide-cured EPDM, 316 Stainless Steel

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 6.89 bar (100 psi)

Operating Pressure 6.89 bar (100 psi)

Min Inlet Pressure Vacuum

Item Weight 0.005 (0.16oz)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q5 Couplings. This product is guaranteed to interconnect with all pre-existing industry standard interchangeable thumb latch quick release couplings of the same size and style, or if not will be replaced or refunded. Suitable for bi-directional flow. Alternative seal materials available. Custom designs available or for further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)
