White ABS Spike to 1/4" Bond-In Port (non-vented)

White ABS Spike to 1/4" Bond-In Port (non-vented)

E-F-160273

White ABS Spike to 1/4" Bond-In Port (non-vented)

White ABS Spike to 1/4" Bond-In Port (non-vented)
BUY ONLINE
REQUEST A QUOTE
X

Bulk price quote request

Product Details

E-F-160273

White ABS Spike to 1/4" Bond-In Port (non-vented)

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

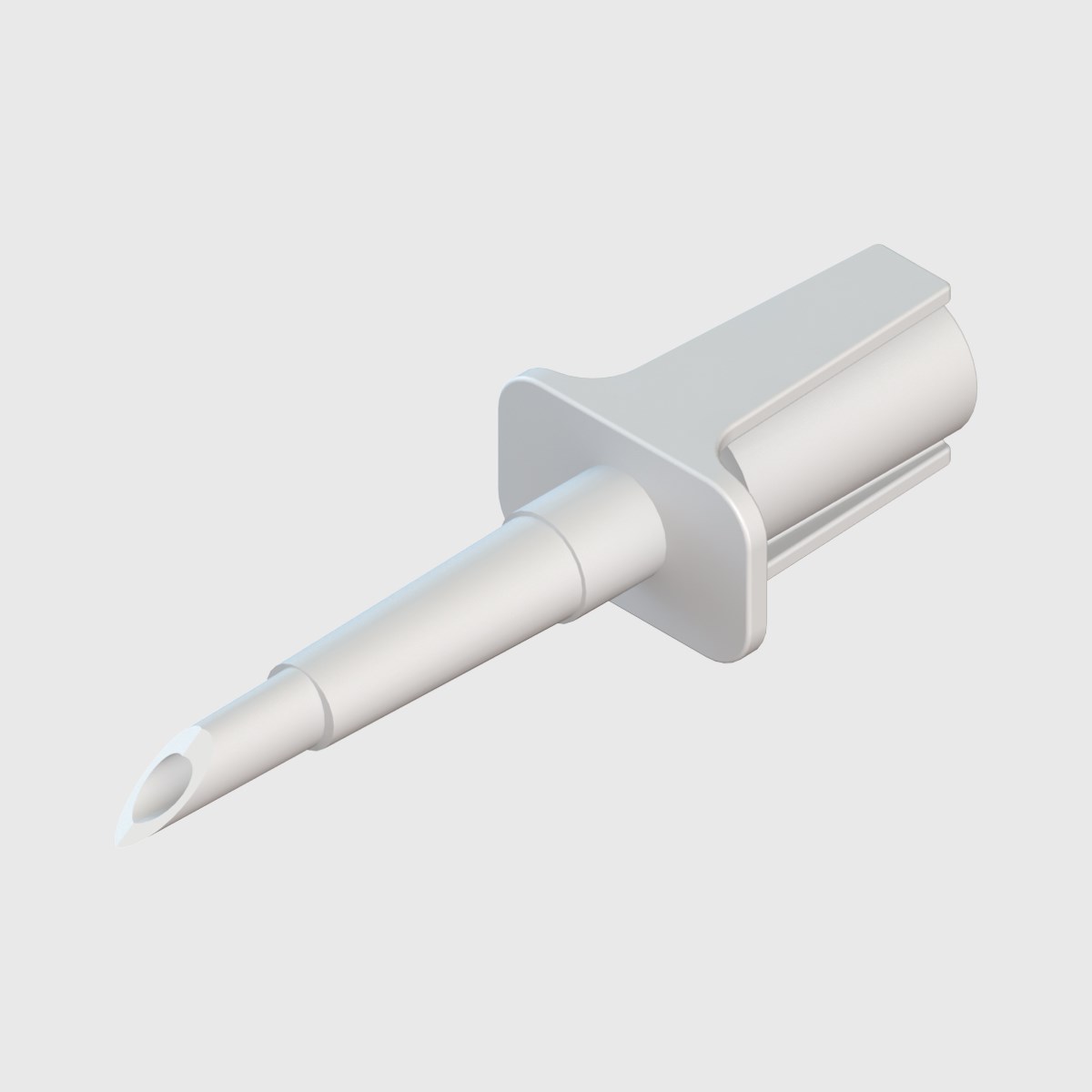

Description White ABS Spike to 1/4" Bond-In Port (non-vented)

Extended Description A white ABS bodied non-vented spike to 1/4" bond-in port

Mounting Style In-Line

Connection 1 Spike

Connection 2 1/4" Bond-In Port

Non-Wetted Materials ABS

Wetted Materials ABS

Cleanroom Manufactured Class 8 (100,000) cleanroom

Material ABS

Item Weight 0.0020Kg (2g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for USP Class VI, ISO 10993-1, FDA 21 CFR 181.32. California Prop. 65

REACH Compliant Yes

Other Technical Data Conflict mineral compliant. Compatible with EtO (Ethylene Oxide) sterilisation and gamma sterilisation, but is not compatible with autoclave. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

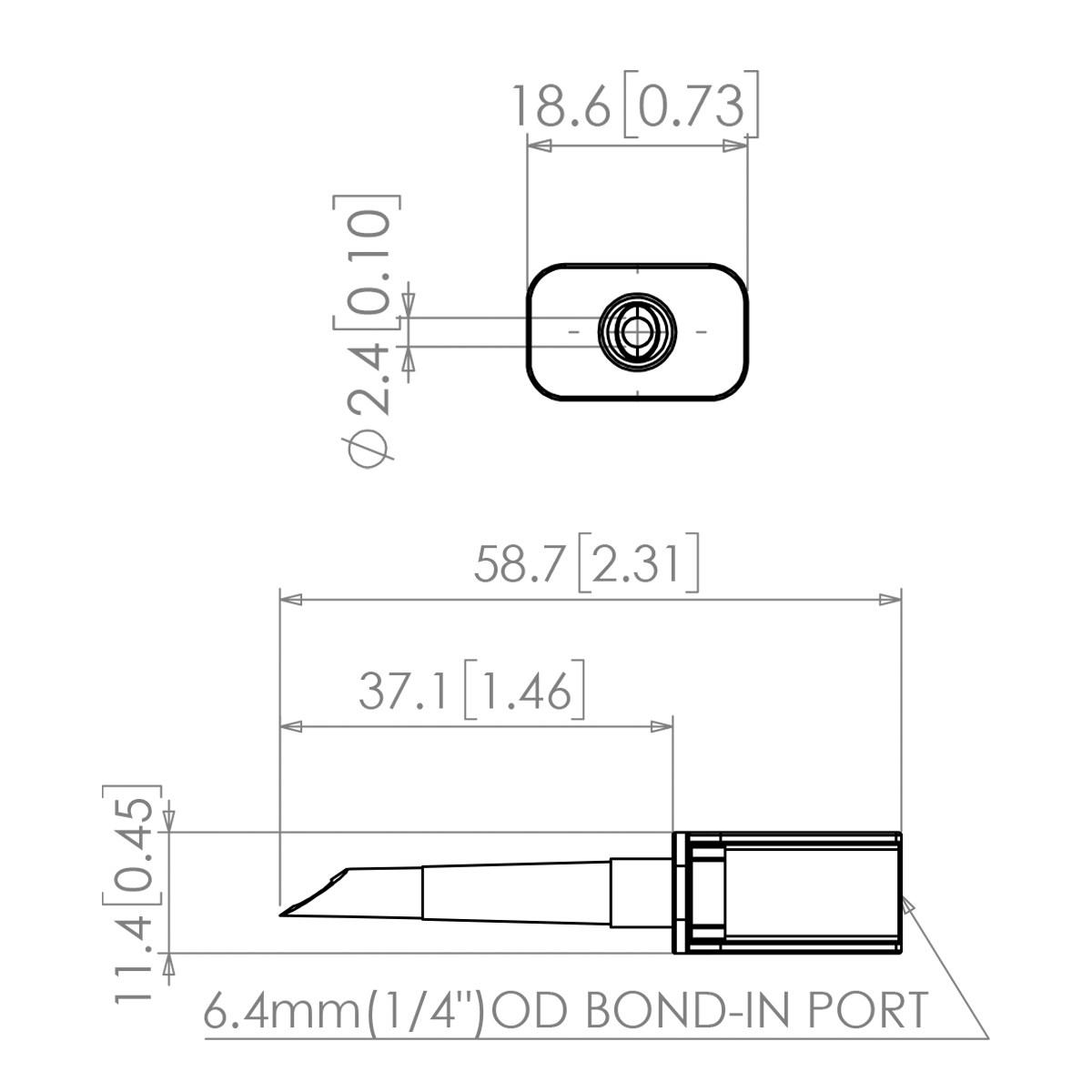

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
