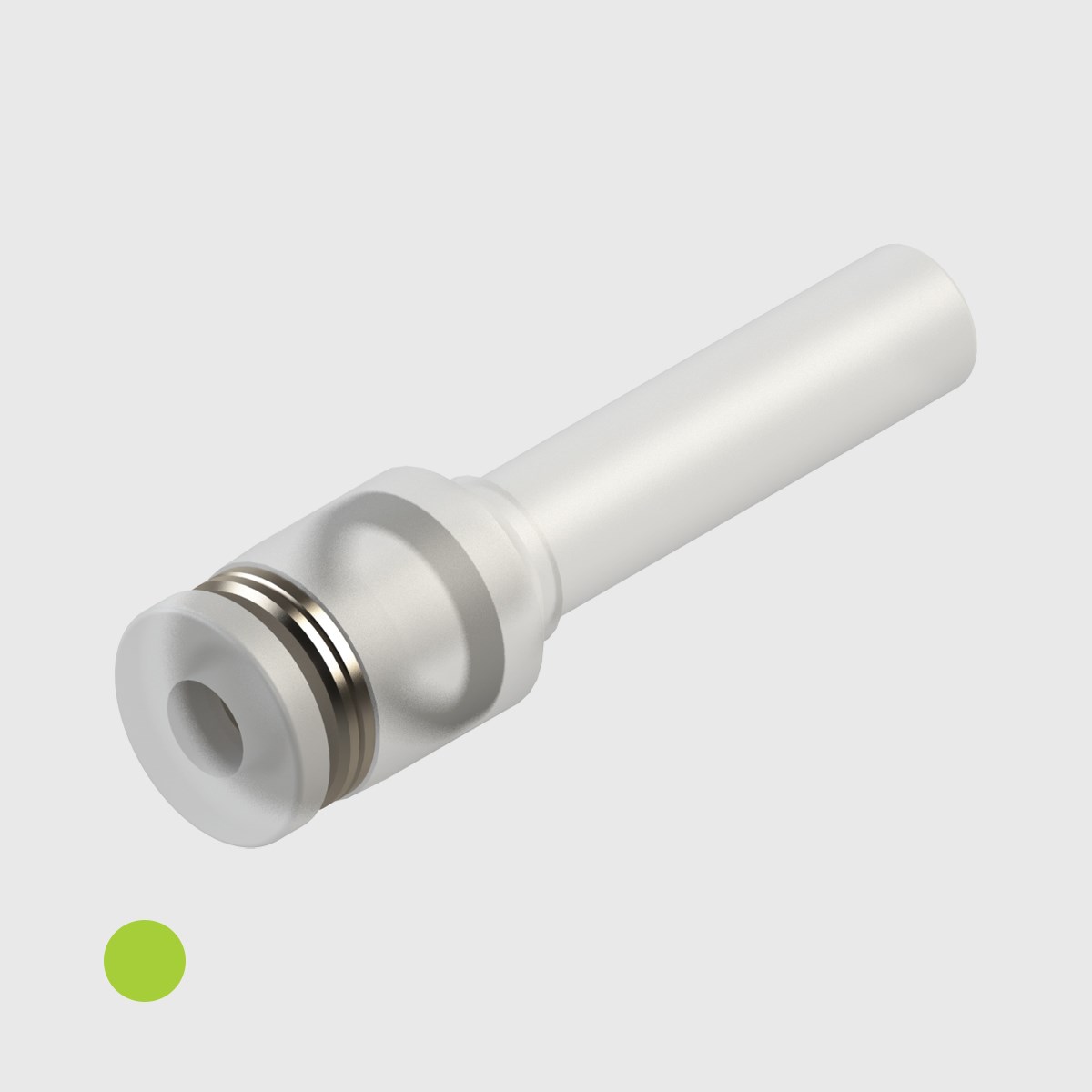

Polypropylene Straight Adapter, EPDM Seal, 4mm OD Push-In Fitting to 6mm OD Stem - Compatible With Green Dot Tubing

Polypropylene Straight Adapter, EPDM Seal, 4mm OD Push-In Fitting to 6mm OD Stem - Compatible With Green Dot Tubing

E-F-170886

Polypropylene Straight Adapter, EPDM Seal, 4mm OD Push-In Fitting to 6mm OD Stem - Compatible With Green Dot Tubing

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Polypropylene Straight Adapter, EPDM Seal, 4mm OD Push-In Fitting to 6mm OD Stem - Compatible With Green Dot Tubing
$10.47
Add To Wishlist
Quantity
Price

10 - 24

$10.47

25 - 49

$9.92

50

$9.37

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-F-170886

Polypropylene Straight Adapter, EPDM Seal, 4mm OD Push-In Fitting to 6mm OD Stem - Compatible With Green Dot Tubing

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Polypropylene Straight Adapter, EPDM Seal, 4mm OD Push-In Fitting to 6mm OD Stem - Compatible With Green Dot Tubing

Extended Description A Polypropylene bodied straight adapter with EPDM seal and, 4mm OD push-in fitting to 6mm OD stem

Ambient Temperature -20°C to 80°C (-4°F to 176°F)

Mounting Style In-Line

Connection 1 Push-In Fitting to suit 4.0mm OD Tube

Connection 2 6.0mm OD Stem

Recommended Filtration To suit application and media used

Media Temperature -20°C to 80°C (-4°F to 176°F)

Non-Wetted Materials Polypropylene, 304 Stainless Steel

Wetted Materials Polypropylene, EPDM

Cleanroom Manufactured No

Max. Inlet Pressure 10.34 bar (150 psi)

Operating Pressure Vacuum – 10.34 bar (150 psi)

Item Weight 0.0024Kg (2.4g)

ROHS Compliant Yes

REACH Compliant Yes

Recommended Tubing Compatible with green dot hard tubing - 90 to 95 Shore A

Other Technical Data Suitable for air, water and other chemicals subject to compatibility with construction materials. Clear (semi-transparent) colour used for the resin body makes it possible to visually check the media inside and sanitary conditions thereof. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
