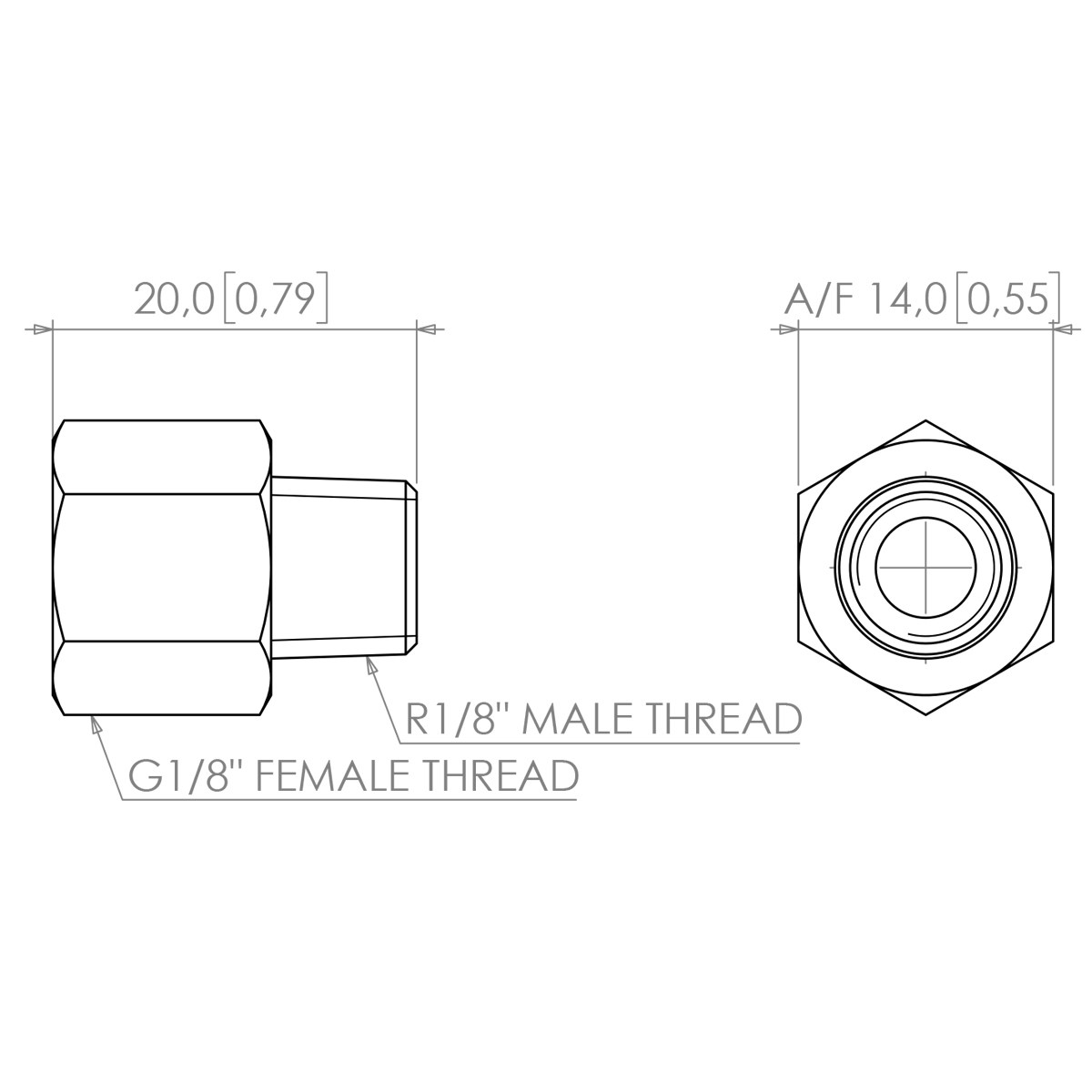

G1/8" Female x R1/8" Male Adaptor

Name: G1/8" Female x R1/8" Male Adaptor
SKU: E-F-171065
Price: 0.920000 GBP
Availability: OutOfStock

E-F-171065

G1/8" Female x R1/8" Male Adaptor

E-F-171065

Product Details

Product Code E-F-171065

Product Name G1/8" Female x R1/8" Male Adaptor

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description G1/8" Female x R1/8" Male Adaptor

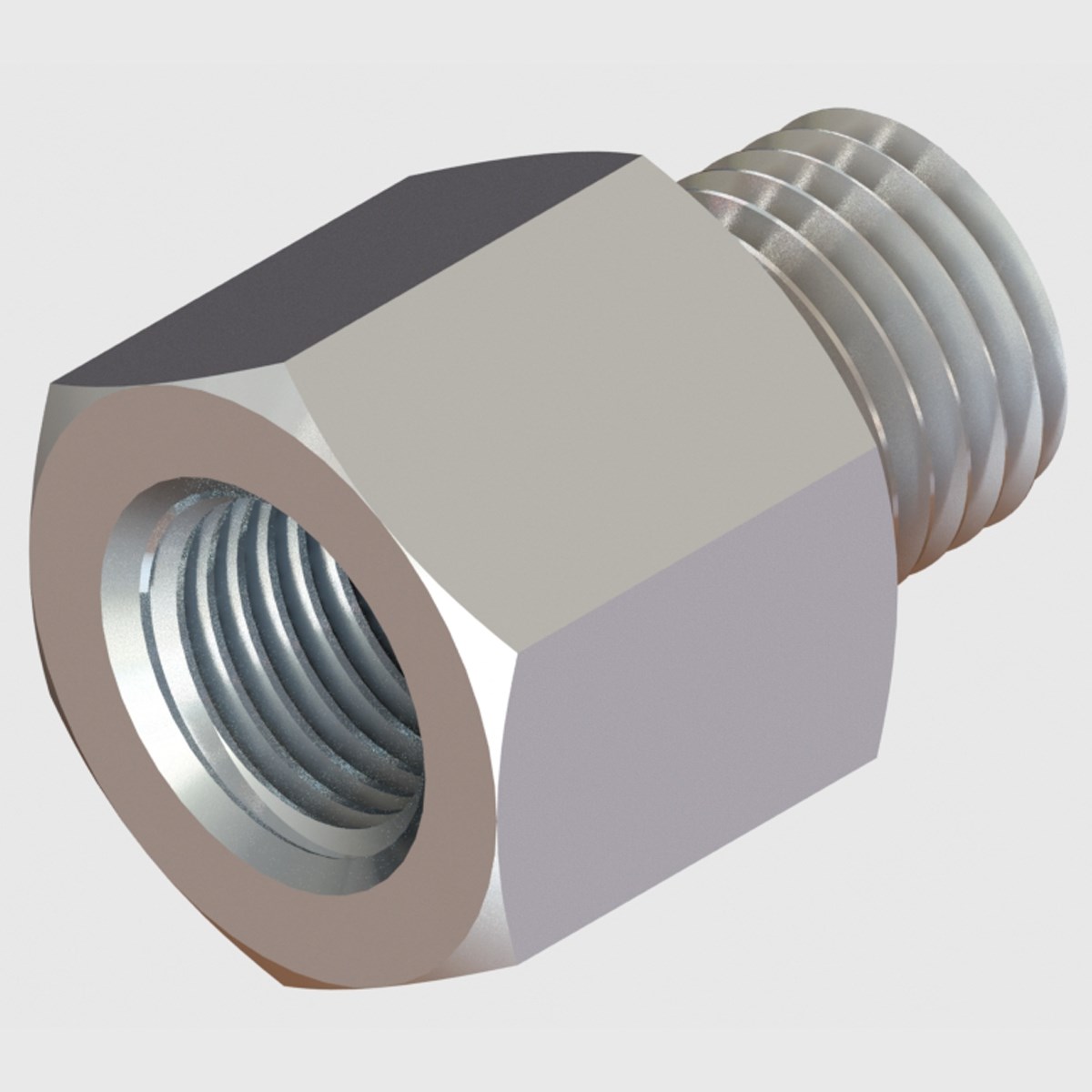

Extended Description Nickel Plated Brass adaptor with G1/8" female to R1/8" male thread

Ambient Temperature -20°C – 80°C (-4°F – 176°F)

Mounting Style Threaded

Connection 1 G1/8" Female Thread

Connection 2 R1/8" Male Thread

Recommended Filtration To suit application and media used

Media Temperature -20°C – 80°C (-4°F – 176°F)

Non-Wetted Materials Nickel Plated Brass equal male nipple with G1/8" thread

Wetted Materials Nickel Plated Brass

Max. Inlet Pressure 60 bar (870 psi)

Item Weight 0.0126 (0.44oz)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Suitable for compressed air and vacuum. For further information please contact us on +44 (0)2392 266049

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

3D model (IGS)

Glossary of terms
