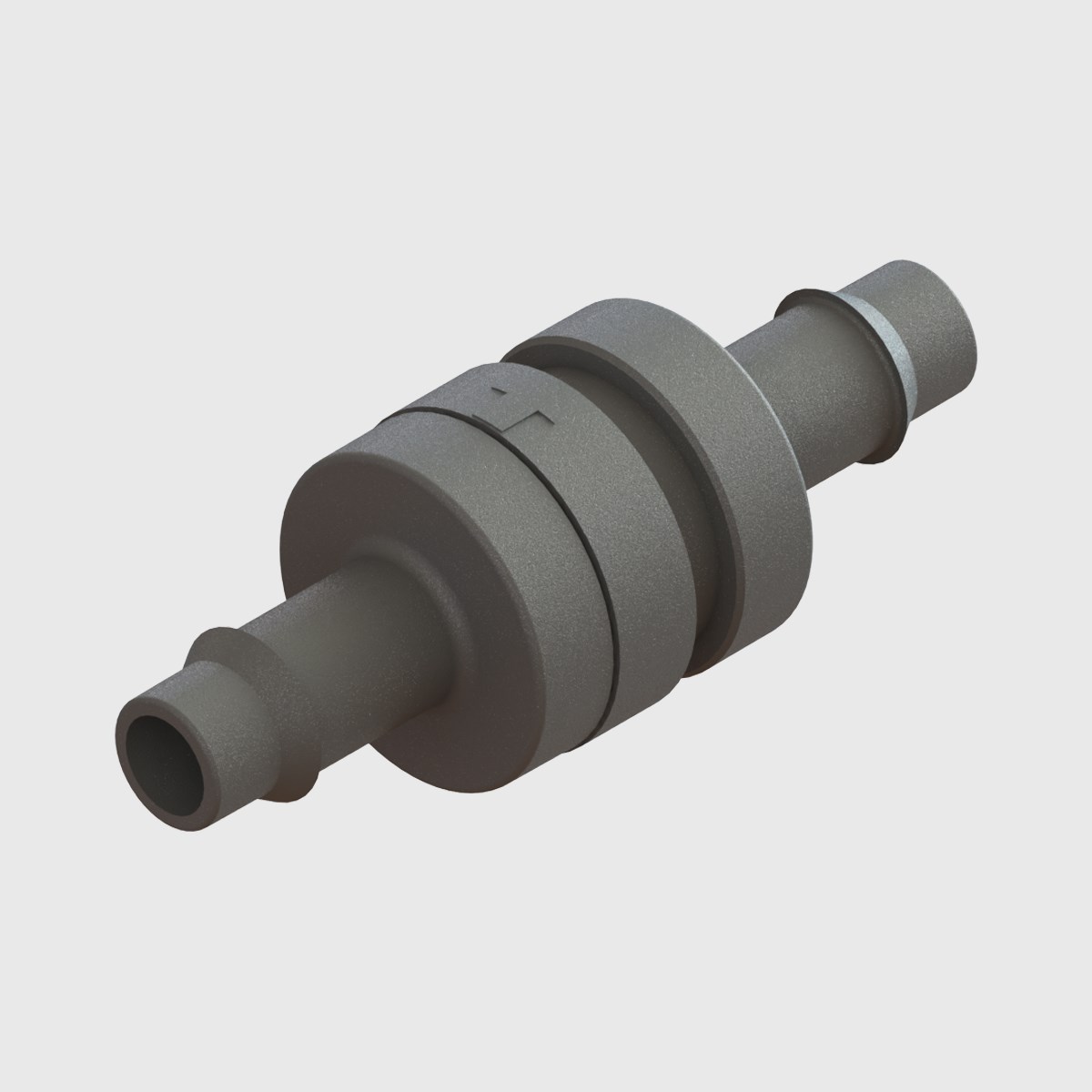

Nylon Umbrella Check Valve, Viton Seal, 1/4" (6.4mm) ID Tube, Cracking Pressure 0.75 psi

Nylon Umbrella Check Valve, Viton Seal, 1/4" (6.4mm) ID Tube, Cracking Pressure 0.75 psi

E-C-230022

Nylon Umbrella Check Valve, Viton Seal, 1/4" (6.4mm) ID Tube, Cracking Pressure 0.75 psi

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Nylon Umbrella Check Valve, Viton Seal, 1/4" (6.4mm) ID Tube, Cracking Pressure 0.75 psi
$15.09
Add To Wishlist
Quantity
Price

10 - 24

$15.09

25 - 49

$14.29

50

$13.50

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-C-230022

Nylon Umbrella Check Valve, Viton Seal, 1/4" (6.4mm) ID Tube, Cracking Pressure 0.75 psi

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Nylon Umbrella Check Valve, Viton Seal, 1/4" (6.4mm) ID Tube, Cracking Pressure 0.75 psi

Extended Description Nylon umbrella type check valve complete with Viton umbrella valve and barbs to suit 1/4" (6.4mm) ID tube. Cracking pressure of 0.75 psi

Mounting Style In-Line

Connection 1 To suit 1/4" (6.4mm) ID Tube

Connection 2 To suit 1/4" (6.4mm) ID Tube

Recommended Filtration 5 micron

Non-Wetted Materials Nylon

Wetted Materials Nylon, Viton

Max. Inlet Pressure 3.44 Bar (50 psi)

Cracking Pressure 0.75 psi

Item Weight 0.0030kg (3g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information

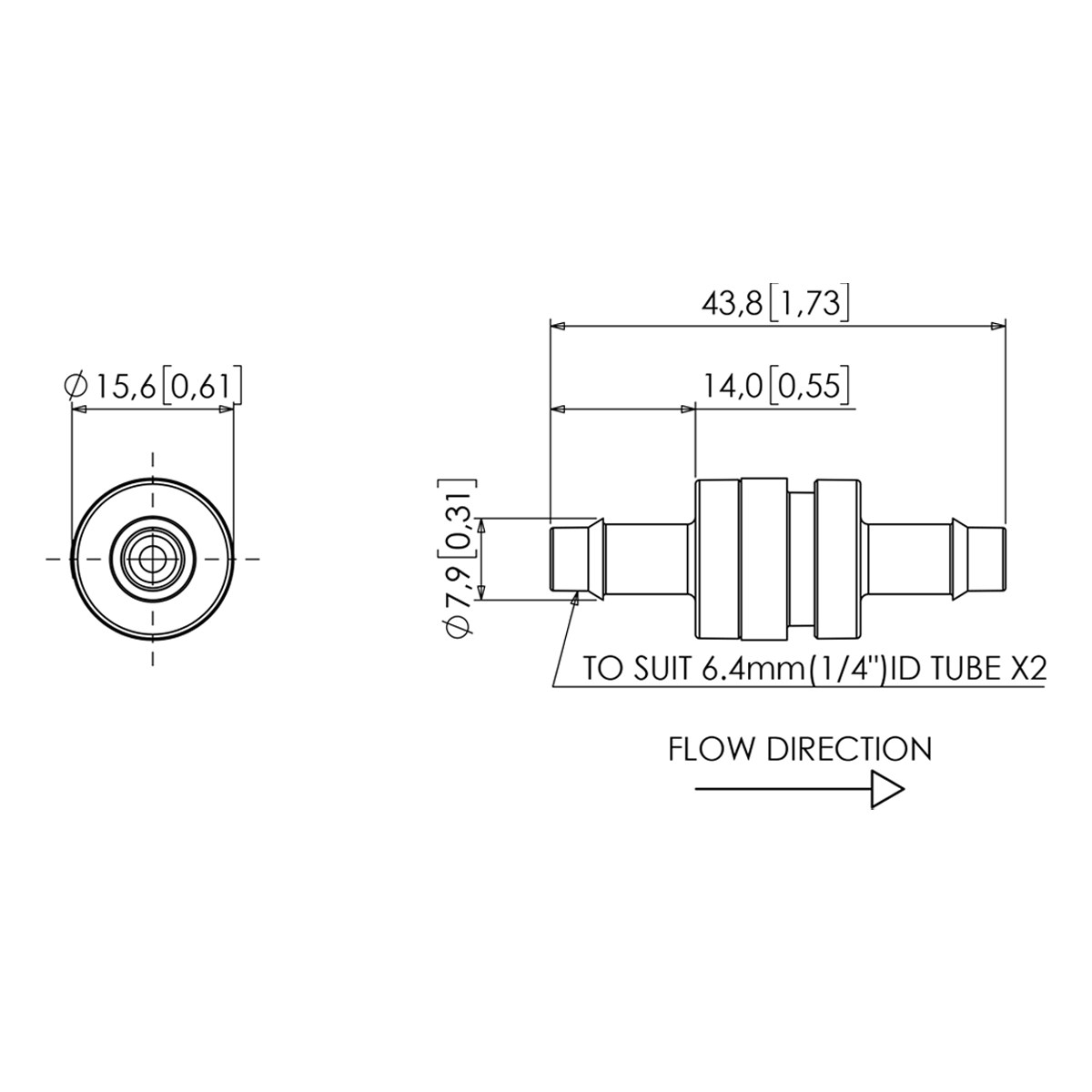

Dimensional Drawing (pdf)

3D model (IGS)
