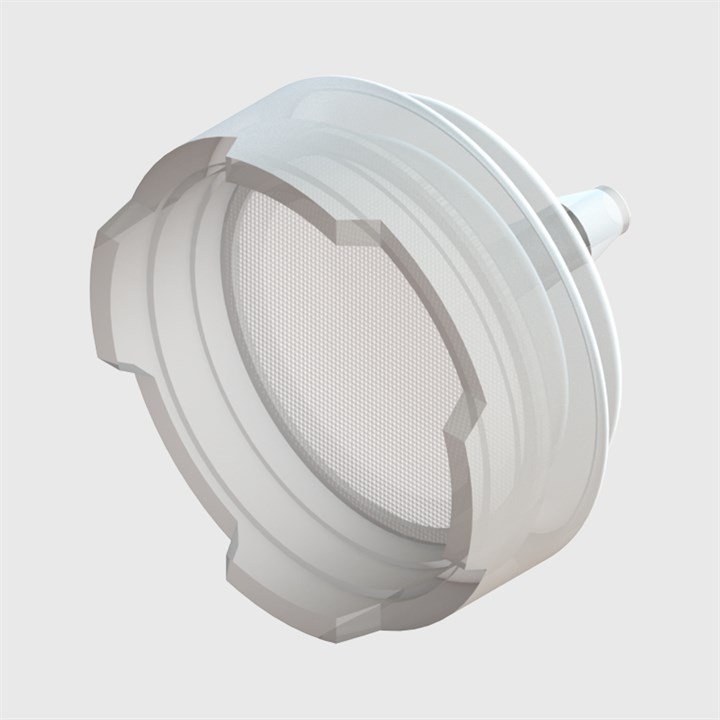

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/16" (1.6mm) ID Tube

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/16" (1.6mm) ID Tube

E-M-230016

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/16" (1.6mm) ID Tube

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/16" (1.6mm) ID Tube
$4.02
Add To Wishlist
Quantity
Price

10 - 24

$4.02

25 - 49

$3.81

50

$3.60

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-M-230016

Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/16" (1.6mm) ID Tube

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Clear Polypropylene Suction Filter, 150 Micron Polypropylene Mesh, 1/16" (1.6mm) ID Tube

Extended Description A suction filter with Clear Polypropylene body, 150 micron Polypropylene mesh and barb to suit 1/16" (1.6mm) ID tube

Mounting Style In-line

Connection 1 To suit 1/16" (1.6mm) ID Tube

Recommended Filtration Integrated with 150 micron Polypropylene mesh

Media Temperature 60°C (140°F)

Non-Wetted Materials Polypropylene

Wetted Materials Polypropylene

Item Weight 0.0008Kg (0.8g)

ROHS Compliant Yes

Regulatory Information No

REACH Compliant Yes

Other Technical Data Compatible with air, gases and fluids. Max temperature is dependent on input pressure. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
