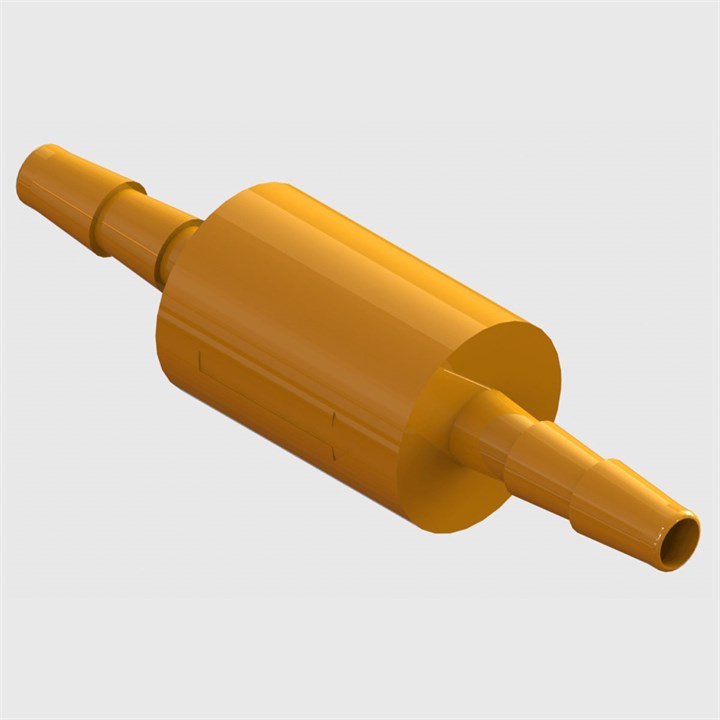

Description 0.003" Orifice Restrictor with 5 micron filter, 1/16" Barbed Ports, Polycarbonate

Extended Description Miniature precision Polycarbonate moulded orifice restrictor with 5 micron integral filter, Gold coloured to denote orifice size held to a tolerance of ± 0.0003". Designed for in-line installation in pneumatic, gas and compatible fluid control circuits, via barbed ports for 1/16" ID tubing

Ambient Temperature 5°C to 48°C (40°F to 120°F)

Mounting Style In-line

Connection 1 Ø 2.73 mm Barb (0.108") to suit 1.6 mm (1/16") ID Tube

Connection 2 Ø 2.73 mm Barb (0.108") to suit 1.6 mm (1/16") ID Tube

Recommended Filtration 5 micron, incorporated within orifice restrictor body

Media Temperature 5°C to 48°C (40°F to 120°F)

Wetted Materials FDA Approved Polycarbonate, 304 Stainless Steel

Cleanroom Manufactured No

Max. Inlet Pressure 6.9 bar (100psi)

Operating Pressure Vacuum - 6.9 bar (100 psi)

Effective Orifice Size Ø 0.076 mm (0.003")

Item Weight 0.7g (0.025oz)

ROHS Compliant Yes

CE Mark Not Applicable

REACH Compliant Yes

Other Technical Data Also available are alternative restrictors having orifice sizes ranging from 0.003" to 0.040" with straight or barbed ports to suit 1/16" or 1/8" ID tubing It is also possible to use these orifice restrictors in the reverse direction of flow, though this will typically result in a reduction of the volume of flow by 10 – 20%. For further information please contact us on +44 (0)2392 266031.

Disclaimer: All information has been carefully collated and presented, however, The West Group Ltd cannot accept responsibility for incorrect or misprinted information
