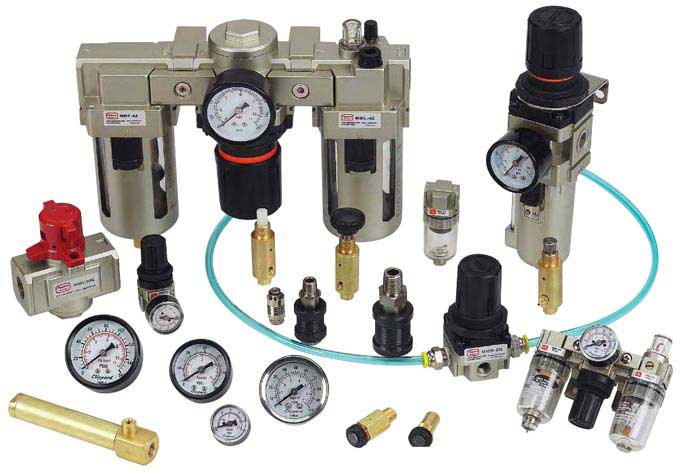

Clippard - Air Preparation

Clippard Filters - Filters capture solid particulate and remove water by 'spinning' the air centrifugally.  Water and larger particles are thrown against the side of the bowl where they condense and/ or fall to the lower part of the bowl.  Smaller particles are captured as the air flows through the filter element.

Clippard Regulators - Controlling pressure is an important requirement in all systems.  Clippard Maximatic® Regulators are adjustable from 7-125 psig.  For applications requiring better resolution 7-30 or 7-60 psig models with spring are available.  The #10-32 size is a piston-style due to its small size, while the 1/8 to 1 inch are a diaphragm design.

Clippard Lubricators - Pneumatic actuators and valves perform better and last longer when properly lubricated.  The bowl serves as a reservoir for the oil and supplies the oil throughthe pick-up tube when pressurised.  The amount of oil dispersed is controlled by an adjustable needle valve.

For full details of the Clippard range, please feel free to get in touch by e-mail us or call +44 (0)23 9226 6031 for support.
